Product Specifications
| Prod Model: |
ZZ-series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Sio2 Head Lamp Vacuum Coating Machine |
| Coating Technology: |
Vacuum Evaporation Coating |
| Cetification: |
ISO9000:2008 |
| Type: |
Electrostatic Spraying Equipment |
| Certification: |
SGS |
| Method Type: |
Automatic |
| Coating: |
Sio2 Head Lamp Vacuum Coating Machine |
| Application: |
Sio2 Head Lamp Vacuum Coating Machine |
Product Description

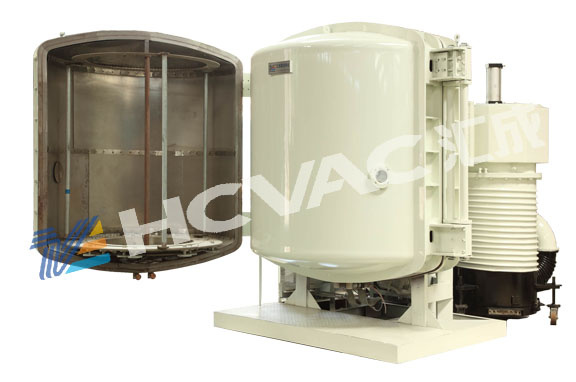

Sio2 Head Lamp Vacuum Coating Machine
We will provide full set of head lamp process
SIO2 Head lamps vacuum coating machine adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic: Reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Applied industry: Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel, ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU, etc.
Electroplating effects: General electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color: Gold, silver, red, blue, green, purple, multi color, and so on.
Company Introduction:
The coating experts of your own company:Full set solution for the coating production.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
Please feel free to contact us for further information!
Contact: Lillian Yang
Mobile:0086-13825720037
Mode
Dimension
| ZZ-1200
| ZZ-1400
| ZZ-1600
| ZZ-1800
|
1200*1400mm
| 1400*1600mm
| 1600*1800mm
| 1800*2000mm
|
Mainly Application
|
Plastic decorative coating , glass decorative coating and protective film coating
|
Film Type
|
Semitransparent film, non-conducting film, gold, silver, red, blue, green, purple, seven color, etc.
|
Power source Type
|
Thermal evaporation power, ion bombard power, RF power
|
Vacuum chamber structure
|
Vertical double/single door, horizontal single door, pump system postposition
|
Ultimate vacuum
|
8.0*10 -3 Pa
|
Vacuum system
|
Diffusion pump +Roots pump +Mechanical pump +Holding pump
|
Pump time
|
Pump from atmosphere to 5.0*10 -2 ,6 minutes
|
Workpiece motion mode
|
Public rotation/Frequency control
|
Control mode
|
Manual/Automatic all-in-one mode, Touching screen+PLC
|
compress air
|
the pressure is 5~6kg.
|
water-cooling system
|
Cool water 5~25 supplier,the flux is 5T/H and the pressure is 0.15~0.25MPa.
|
Features
|
Bright delicate aluminum coating, coating speed, simple operation, equipment stability, and the production of high-grade plastic decoration products indispensable a necessary equipment.
|
