Slope Protection System, Slope Wire Netting (factory)

Name: Slope Protection System, Slope Wire Netting (factory)
Brand: china-manufacturer-directory.com
SKU: 693888382
Availability: InStock
Rating: 4.6 (127 reviews)

Price:	US $ 25-55/Square Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Square Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

1. Introduction:

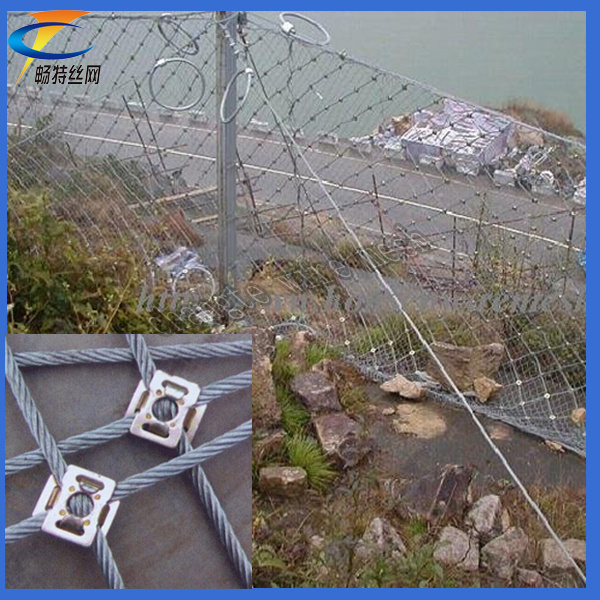

SNS Passive Flexible Slope Protection System
SNS Passive Flexible Slope Protection System is also called SNS Slope protection system and SNS Flexible Protection System. SNS Passive Flexible Slope Protection System main include diamond-shaped steel wire mesh, ring mesh and high-strength steel wire grid.

2. Applications:
SNS Passive Flexible Slope Protection System has always been put on the slope of the corresponding position to prevent the object from the rock slope collapsed, dropped, such as flyrock blasting. SNS Passive Flexible Slope Protection System can also be put in the debris flow section which is used for block large solid particles.

3. Features:
1>High strength.
2>Short installation period
3>Less weight, easy to transport
4> Good ventilation
5>Excellent corrosion resistance
6>Easy maintenance

4. Packing:
Moisture-proof packaging, according to the different kinds of accessories, or according to user's requirements.

5. Advantages:
1>ISO 9001, Our SNS Passive Flexible Slope Protection System is ensured to have high quality with reasonable price.
2>One of our factories is located in Hebei Province near Tianjin Port. Transportation cost is greatly cost.
3> Our factory has 10 years experience of production and researching.

Specification:

Stainless Steel Slope Protection Network (China Manufacture)
Description	Model	Net Code No.	Support ropes	Sewing ropes	Remarks
Single layer high strength spiral rope net system	GAR1	DO/08/300	Φ16 border (or upper border) steel spiral rope anchor bolt + Φ16 support rope	Φ8	Single layer steel spiral rope net. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN
Single layer high strength spiral rope net system	GAR2	DO/08/300	Φ16 system steel spiral rope anchor bolt + Φ16 horizontal support rope +Φ16 longitudinal support rope	Φ8	Single layer steel spiral rope net. Concave orifice + pretension. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN
Double layers high strength spiral rope net system	GPS1	DO/08/300+	Φ16 border (or upper border) steel spiral rope anchor bolt + Φ16 support rope	Φ8	Double layers (steel spiral rope net + steel wire mesh), Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN
	GPS1	SO/2.2/2.25×10.2		Φ8
	GPS2	DO/08/300+	Φ16 system steel spiral rope anchor bolt + Φ16 horizontal support rope +Φ16 (12) longitudinal support rope	Φ8	Double layers (steel spiral rope net + steel wire mesh), Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN
	GPS2	SO/2.2/2.25×10.2		Φ8
Single layer steel wire mesh system	GER1	SO/2.2/2.25×10.2	Φ16 border (or upper border) steel spiral rope anchor bolt +Φ16 upper border support rope + Φ12 lower border support rope	Sewing by wire with diameter not less than 2.2mm.	Single layer of steel wire mesh. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN
Single layer steel wire mesh system	GER2	SO/2.2/2.25×10.2	Φ16 system steel spiral rope anchor bolt + Φ12 horizontal support rope	Sewing by wire with diameter not less than 2.2mm.	Single layer of steel wire mesh. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN
Single layer high strength steel wire mesh system	GTC-65A	TC-65 (TECCO)	Prestressed steel bar anchor bolt + concave orifice (select the border support rope and steel spiral rope anchor bolt if necessary)	Φ8	Single layer of high strength steel wire mesh system with 100 years of anti-corrosion lifespan requirements. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN
Single layer high strength steel wire mesh system	GTC-65B	TC-65 (TECCO)	Φ16 border (or upper border) steel spiral rope anchor bolt + Φ16 support rope	Φ8	Single layer of high strength steel wire mesh system with 100 years of anti-corrosion lifespan requirements. Length of anchor bolt: 2~3m. Ultimate pullout load: ≥50kN

Prod Model:	CT-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Gar1 Gar2 GPS1 GPS2
Model No:	Factory
Steel Cable Circumference:	16 Mm
Steel Cable Breakage 8 Mm:	5t
Mesh Type:	Steel Wire Netting
Business Type:	Manufacture
Wire Diameter:	2-4mm
Product Name:	Protection Network,Slope Protection System
Advantage:	Good Value,Fast Delivery
Material:	Stainless Steel
Application:	Protecting Mesh, Construction Wire Mesh
Feature:	Eco Friendly
Frame Finishing:	Not Coated
Surface Treatment:	Galvanized
Weave Technique:	Plain Weave
Certification:	CE
Hole Shape:	Diamond
Color:	Sliver
Packing:	Water-Proof, and The Outer Is Cabin, with Pallets

Our company supplys different kinds of products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
