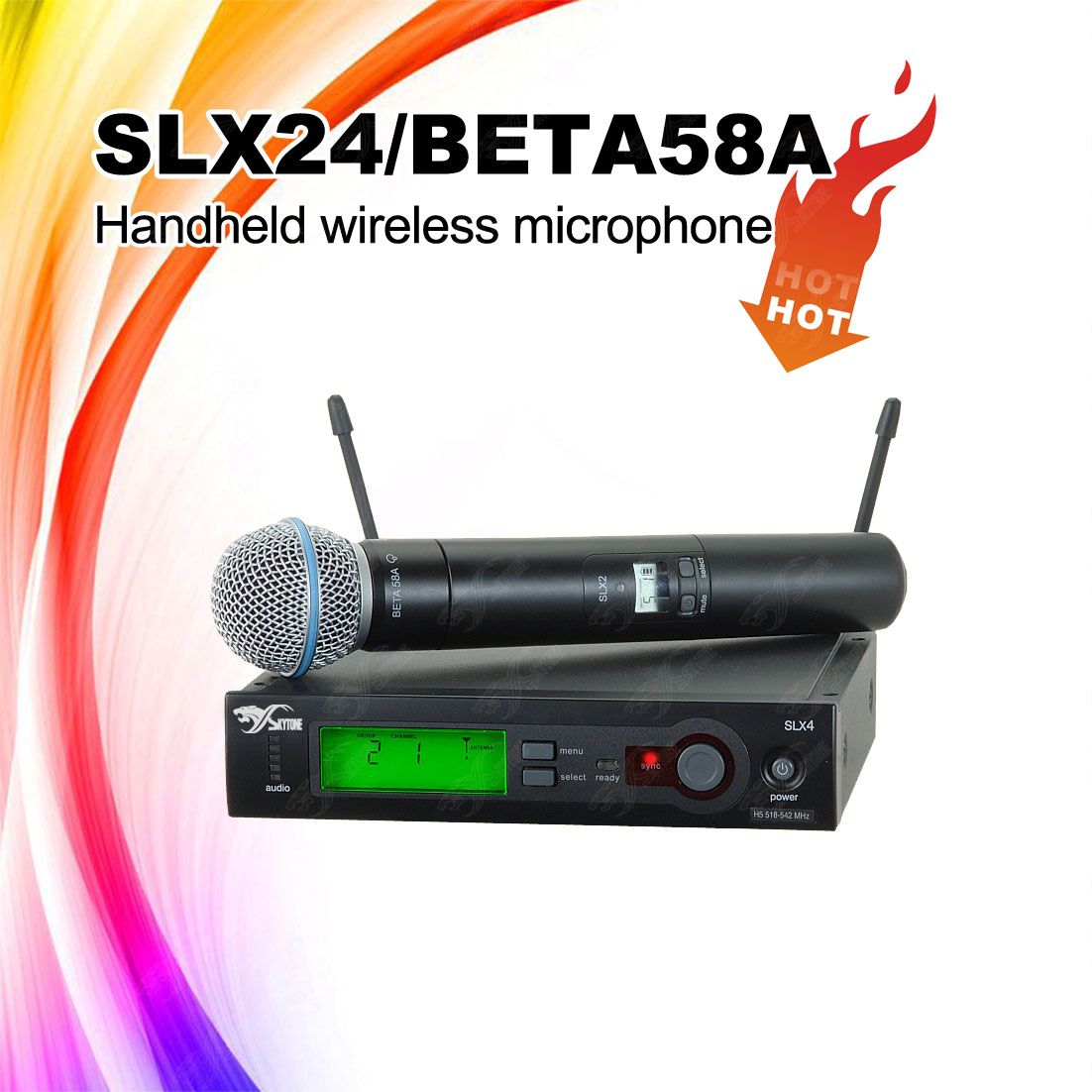

Slx24/Beta58 Wireless Audio Transmitter and Receiver

Product Description
SLX24/Beta58 wireless mics/microphones:
Handheld mics
wireless mics
cordless microphone
SLX2:Handheld transmitter with choice of microphone cartridge.
SLX4:Single-channel Diversity Receiver with optional logic output. Up to 42 compatible systems (multi-band).

SLX Wireless Systems are powerful wireless tools that can be set up quickly and used confidently by installers and working bands. Features include auto frequency scan with transmitter setup, exceptional wireless clarity, and  patented Audio Reference Companding.

SYSTEM FEATURES
--Auto Frequency Selection
Locates a clear channel instantly
--Auto Transmitter Setup
Infrared link automatically synchronizes the transmitter and receiver
RECEIVER FEATURES
--Detachable 1/4 wave antennas
--Backlit LCD
--Rack-mount hardware included
--1/4" and XLR audio outputs
HANDHELD AND BODYPACK TRANSMITTER FEATURES
--Choice of handheld microphones
--Bodypack works with headworn, lavalier and instrument microphones and cables
--Timed backlit LCD
--Frequency and power lockout


Slx24/Beta58 System Specifications
Operating Range:		30-100 m (100-300 ft.) under typical conditions, depending on transmitter type Note: actual range depends on RF signal absorption, refl ection, and interference.
Audio Frequency Response:		Minimum: 45 Hz, Maximum: 15 kHz (± 2 dB)
Total Harmonic Distortion:		0.5%, typical (ref. ± 38 kHz deviation, 1 kHz tone)
Dynamic Range:		>100 dB A-weighted
Operating Temperature Range:		Operating Temperature Range:
Transmitter Audio Polarity:		Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance ¼-inch output.
Component Specifications
SLX4		SLX2
Housing:	Galvanized steel	Housing:	Molded ABS handle and battery cup
Audio Output Level:	(ref. ± 38 kHz deviation with 1 kHz tone) XLR connector (into 600 Ω load): -13 dBV ¼ inch connector (into 3000 Ω load): -2 dBV	Audio Input Level:	-8 dBV maximum at 0dB position
Sensitivity:	-105 dBm for 12 dB SINAD, typical	Operating range:	100 m (300 ft.)
Image Rejection	>70 dB, typical	Power Requirements:	2 "AA" size alkaline or rechargeable batteries
Power:	12-18 Vdc at 150 mA, supplied by external power supply	Battery Life (alkaline):	>8 hours
Weight:	816 g (1 lb. 13 oz.)	Weight:	290 grams (10.2 oz.) without batteries
Dimensions:	42 mm H x 197 mm W x 134 mm D	Dimensions:	254 mm x 51 mm dia. (incl. SM58 cartridge)
