Product Specifications
| Prod Model: |
DY-STM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
20HP |
| Driving Speed: |
0-22km/H |
| Paint Tank: |
160l |
| Glass Beads Bin: |
55l |
| Size: |
3300*1450*2370mm |
| Weight: |
910kg |
| Type: |
Road Marking Machine |
Product Description

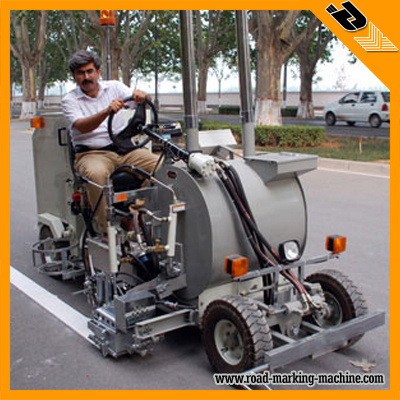

DY-STM Small Driving Thermoplastic Screeding (Convex) Road Marking Machine
Description of DY-STM Road Marking Machine
DY-STM Small driving thermoplastic screeding (convex) road marking machine is screeding general road marking machine, compact
And small, flexible to operate. Under the premise of sufficient melted material, it also has relatively high construction efficiency.
The type I is for flat line, and the type II is for flat line and convex line.
Main Feature of DY-STM Road Marking Machine
1. Ideal machine for medium-sized and small marking jobs in urban areas and highway.
2. Advanced hydraulic drive with infinitely variable speed control system for precise speed control and adjustment.
3. Moving priority design can be efficiently control machine running to enable the safety in case of emergency.
4. The screeding structure makes the markings straight and beautiful.
5. Sensitive, precise and stable computer control system easily realize all operations.
I: DY-STM-I Small Thermoplastic Road Marking Machine: For flat line
II: DY-STM-II Small Thermoplastic Convex Road Marking Machine: For Flat line and Convex line
Technical Parameter of DY-STM Road Marking Machine.
|
No. |
Item |
Spec. |
|
1 |
Engine |
Honda Gasoline Engine Electrical Starting |
|
2 |
DrivingSystem |
HTS variable speed transmission system with automatic brake device |
|
3 |
Heating Mode |
Infrared gas heater or injecting diesel heater (alternative) |
|
4 |
Marking Mode |
Screeding with marking shoe |
|
5 |
Marking Shoe=Line Width |
150/200/250/300mm (Optional) |
|
6 |
StandardConfiguration |
150mmMarking shoe (High temperature, oxidation and deformation resistance) |
|
7 |
PaintTank |
160L(hydraulic chain drive horizontal vane blender device, Heating and keeping the temperature automatically) |
|
8 |
GlassBeadsBin |
55L(The automatic quantitative dispenser synchronous with the paint screeding system) |
|
9 |
Air Compressor |
0.6m3/min piston type, with safe automatic exhaust device |
|
10 |
Electronic Control |
Set up various standard line type and Adjust line type |
|
11 |
Guide Rod |
Hydraulic guide rod |
|
12 |
Warming Function |
Warm Lights (Can be adjust flicker frequency) |
|
13 |
Sizeand Weight |
3300*1450*2370mm 910 kg |
