Product Specifications
| Prod Model: |
TW5502 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Material: |
Carbon Steel |
| Drive Mode: |
Pneumatic |
| Configuration: |
Portable |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Oil-free |
| Mute: |
Mute |
| Application: |
Dental, Food |
| Descriptions: |

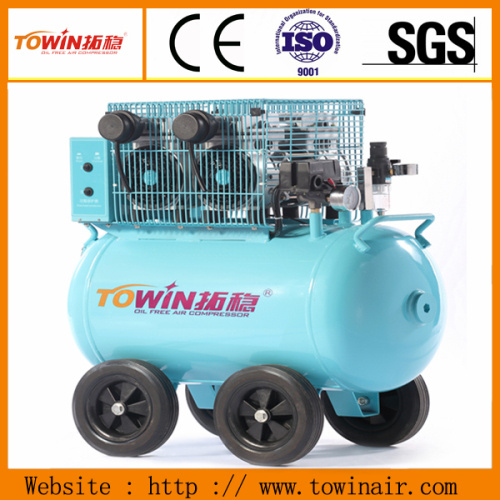

Small Oilless Air Compressor Environmental Type |
Product Description
SILENT OIL FREE AIR COMPRESSOR
1. CE, ISO9001, SGS
2. Oil free, silent
3. Power saving
4. OEM available
WORK PRINCEPLE
1) Before operation, make sure the voltage is ok, all the swith is shut off, the drainage valve is shut off, Inlet pipe of air filter is towards down;
2) Connect the power supply, the machine begin to function, the outside air come to our Main Engine for a compression through our Air Filter( Get rid of impurities in the air and meanwhile reduce the noise);
3)The compressed air come into our air tank throught our high pressure metal braided hose ( at the end of which has a one-way valve, ensuring the compressed air will not return to engine);
4)Accompanied by the consistant compression of the Main Engine, the pressure of the air tank become lager and larger( You could see this from the pressure gauge), when the pressure arrives to 8 bar, the machine will automatically stop working and be in a unloading state;
5) In this moment, you could adjust the pressure from 1~8 bar using our pressure-regulating valve as your requirements, then open the outlet air valve, the outlet pressure is what you want.
WARM NOTES
1)When you using the air, the pressure of the air tank will become smaller, when it arrives to about 5 bar, the machine will work again automatically, then to 8 bar, it stops, circularly.
2)Safety Valve: When the pressure is more than 8 bar because of machine's trouble, it will open automatically, discharge the pressure and protect the whole Engine;
3)Overload Protector: When the current /voltage is too high, it will automatically bounce off, protect the whole engine from being burned. After trouble-shooting, hand-reset to its original place is ok, the machine begine to work again.
CONVENIENT MAINTENANCE
1) Change the Air filter every 500~1000 hours or as your actural use
2) Drainage the water once a week or or as your actural use. That is ok.
APPLIED FIELDS
Dentistry; Medical; Laboratory; Pharmacy; Food Fermentation; Life Science; Biotechnology; Analytical Instrument
MAIN COMPONENTS PERFORMANCE
Compressor Main Engine:
1 100% copper coil adopted. Resisting the high temperature, making sure its stable running;
2 SKF bearings adopted. Low noise, stable running
3 piston ring adopted. Small abrasion, making its continous running for almost 20000 hours above.
4 Two-way axial flow fan. To cool the main engine, low temperature and longevity.
Air Tank:
1 pressure vessel inspection certificate available
2 Tank inside and outside have done the anti-rust treatment to make sure the purity of air
3 100% 1.32MPa hydrotest, no leakage.
Air Filter:
Imported filter paper adopted, getting rid of the dust in the air and lower the noise meanwhile.
Pressure Swich:
Electronic and electrical adopting the international advanced level of technology, making sure its superior insulativity under wetting, loading, high temperature conditions.
Pressure Gauge; Straight Connector:
Stainless steel materials, high anti-oxidation performance.
OUR SERVICE
A. Pre-sales supports: Provide the best air solution according to customer's requirements and actual air condition, and then count the cost for full sets of equipment.
B. In-sales supports: Provide a full set of specification and user manual in English, as well as the general fault maintenance books, equipped with a remote call (computer) training user technology, and maintenance personnel to explain how to troubleshoot, until user can skillfully operate the equipment.
C. After-sales supports: We guarantee for 2 years, during this period we provide technical support to customers all the year around, and do not charge any service and consulting fee; If any quality problems (not include man-made damage and inappropriate operation), we will provide free parts exchange for your satisfication.
CONTACT US
Bella Gan
TEL: 0086-21-18721047492
|
Name |
small Oilless Air Compressor environmental type |
|
Model |
TW5502 |
|
Air flow (L/min) |
230~60 L/min |
|
Pressure (Mpa) |
0.1~0.8 Mpa |
|
Voltage frequency (Volt / Hz) |
110~240 V 50~60Hz |
|
Power (HP/W) |
1.5HP 1100W |
|
Speed (R.P.M) |
1450 |
|
Noise dB(A) 40 " |
53 |
|
Air Storge Tank (Lt) |
60 |
|
Gross weight (kg) |
68 |
|
Net weight (kg) |
49 |
|
Dimension (L*W*H) (mm) |
670*376*658 |
