Product Specifications
Prod Model: |
sgr-018 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Business: |
Manufacturer with 10 Years'experience |
Tg: |
130 Degree,150,170 |
Mask Ink Color: |
White/Black/Green/Red/Yellow/Blue |
Forming: |
Punching/CNC Milling/CNC V-Cut |
PCB Testing: |
E-Testing; Flying Probe Testing |
Max Proportion: |
Drilling Holes/ Board Thickness:1/12.5 |
Order MOQ: |
1 Piece |
Delivey Time: |
3-7 Working Days |
Certificate: |
ISO,UL,RoHS |
Item: |
Small Printed Circuit Boards with High Quality |
Type: |
Rigid Circuit Board |
Dielectric: |
FR-4 |
Material: |
Fiberglass Epoxy Resin + Polyimide Resin |
Flame Retardant Properties: |
V0 |
Base Material: |
Fr-4 |
Brand: |
Sograce |
Product Description
Item:

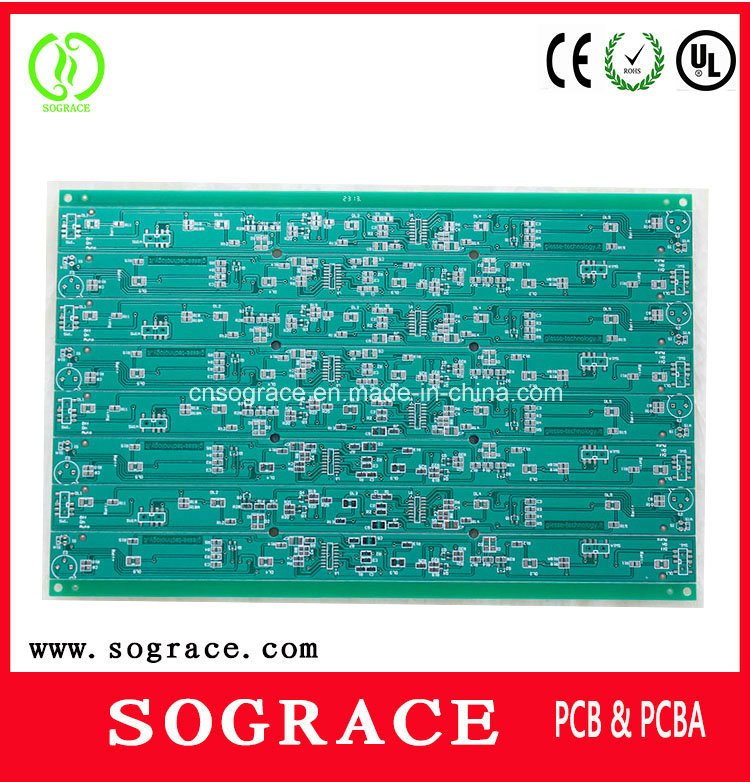

Small printed circuit boards with high quality
1. Design service
2. Components sourcing service
3. SMD DIP components assembly
4 FCT test
Product description:
1, UL, RoHS, ISO9001
2, High layers PCB manufacturing, up to 28 layers
3, Flexible volume, from prototype to massive production
4, Fast service, Minimum lead time for bare PCB is only 2 days
5, Promptly reply, quotation will be provided in 8 working hours
6, ROHScompliantandlead-freeprocess
7, Turnkeyservice(PCBmanufacture, componentsprocurementandassembly)
8, ReliableParts
We specialize in
PCB design, PCB layout, PCB manufacturing, PCB Assemblies,
One-stop services from PCB to PCB assembly
Components sourcing, PCBA Function Test, design solutio
Electronic testing circuit board or PCBA
Eleectronic manufacturing service
Production processes
Material Receiving → IQC → Stock → Material to SMT → SMT Line Loading → Solder Paste/Glue Printing → Chip Mount → Reflow → 100% Visual Inspection → Automated Optical Inspection (AOI) → SMT QC Sampling → SMT Stock → Material to PTH → PTH Line Loading → Plated Through Hole → Wave Soldering → Touch Up → 100% Visual Inspection → PTH QC Sampling → In-Circuit Test (ICT) → Final Assembly → Functional Test (FCT) → Packing → OQC Sampling → Shipping
Requested information for PCB assembly:
1. Components list
(a) Specification, brand, footprint
(b)To short the lead time, please kindly advise us if there is any acceptable components substitution.
(c) Schematic if necessary
2. PCB board information
(a) Gerber files
(b) PCB board processing technic
3. Testing Guide & Test Fixtures if necessary
4. Programming files & Programming tool if necessary
5. Package requirement
About company:
Sogcrace, established in June, 2006, is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer pcb, and as well as assembly service.
Is located in Baoan District, Shenzhen, China, where is very close to shenzhen and Hong Kong ports. Having a variety of advanced production equipment, excellent engineering and technical personnel, Sograce accompany with the mature management and service system
Since establishment, we have been constantly improving all kinds of equipments and advanced techniques, striving to develop and produce pcb and pcba which are used for high-tech products, such as LED, communication, network, electric power, industrial control, medical treatment, instrumentation, military projects and computer peripheral products ect.
Now, Try our service!
Technical Capacity |
Layer Counts |
1-28L |
Min Board Thickness(2-layer) |
0.2mm |
Max board size(mm) |
1200x400mm |
Min Board Thickness(4-layer) |
0.4mm |
Max copper |
12oz |
Min Inner-layer Thickness |
0.1mm |
Min Trace |
0.075mm |
Min Pad Ring |
0.1mm |
Min Clearance |
0.075mm |
Min Hole Location Tolerance |
± 0.075mm |
Min Hole Size(laser hole) |
0.1mm |
Min Hole Size Tolerance |
± 0.05mm |
Board Twist |
≤ 1° |
Min Outer Dimension Tolerance |
± 0.1mm |
Base Material |
FR4, High-TG FR4, CEM3, aluminum, High Frequency(Rogers, Taconic, Aron, PTFE, F4B) |
Surface Finish |
HAL, lead-free HAL, ENIG, Plated Gold, Immersion Gold, OSP |
Soldermask |
Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
Silkscreen |
White, Black, Blue, Yellow |
Acceptable File Format |
Gerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000 |
Certificate |
ROSH, ISO9001, UL |
Standard
Lead Time |
2-layer samples in about 3 days
4-layer samples in about 5 days |
Your inquiry will be answered within 24 hours.
Wishing to be your long-term partner, please feel free to contact us , we will do our best for you.
|
Sograce International Corporation Limited is a professional PCB manufacturer for producing all kinds of single side, double-side and multilayer PCB, and as well as assembly service.
