Product Specifications
Prod Model: |
GM/SP-100X100H |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Description: |
High Strength Lab Jaw Crusher |
Crushing Object: |
Coal,Ores,Mineral, Slag, Gypsum |
Feeding Size: |
Not More Than 80mm |
Discharge Size: |
0.2-20mm |
Drive: |
Electric |
Application: |
Laboratory, Nonferrous Metal, Metallurgy |
Crushing Degree: |
Fine Grinding Machine |
Type: |
Jaw Crusher |
Crushing Style: |
Grinding and Impact |
Product Description

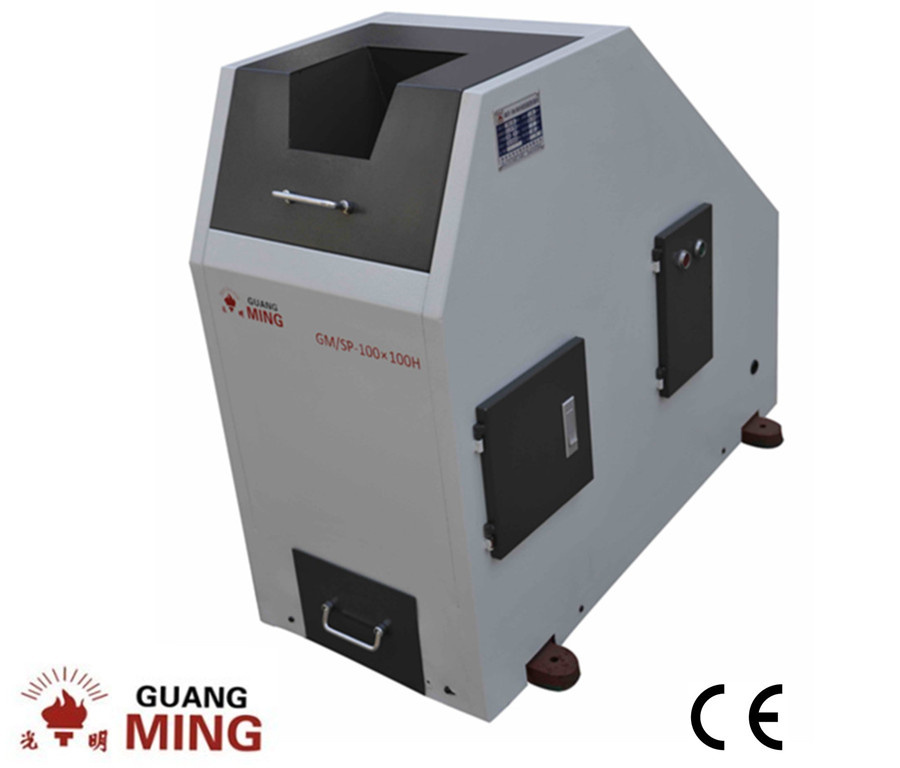

Small scale crusher for crushing zeolite (GM/SP-100X100H)
TYPICAL APPLICATIONS:
This machine is used for crushing high hardness ores or other solid material for component analysis continuously or intermittently.
ESPECIALLY SUITABLE FOR:
The unit is especially suitable for sample preparation work in the laboratory of industrials of nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.
ADVANTAGES:
1. Adopting special technology and material, it especially suitable for crushing high strength alloy material.
2. The jaw plate is made of high strength material which has good abrasive resistance and will not pollute the sample.
3. The crusher has the advantages such as: Even discharging size, smooth running, easy adjustment and long service life.
4. The machine frame is made of the cast steel after heating treatment.
5. Removable shell which is convenient for daily maintenance and inspection of the machine.
6. Mechanical-electrical integrated controlling makes the machine is easy to operate.
7. Full-sealed design and equipped with dust extracting outlet which meets the environment requirements.
8. Total electro-static coating surface which makes good appearance and easy to clean.
9. It can work normally on the flat ground without fixing any base.
Environment friendly high strength jaw crusher |
Model No. |
GM/EP-100× 60H |
GM/SP-100× 60H |
GM/SP-100× 100H |
GM/EP-150× 125H |
GM/EP-250× 150H |
Feeding entrance size(mm) |
100× 60 |
100× 60 |
100× 100 |
150× 125 |
250× 150 |
Feeding size(mm) |
≤ 45 |
≤ 48 |
≤ 80 |
≤ 100 |
≤ 200 |
Discharging size (mm) |
3-10 |
0.2-15 |
0.2-20 |
6-38 |
10-40 |
Handling capacity(kg/h) |
500 |
12-720 |
20-1030 |
50-1200 |
1000-3000 |
Working power supply (V) |
380 |
380 |
380 |
380 |
380 |
Dimension (mm) |
1000× 550× 740 |
981× 530× 750 |
981× 530× 830 |
1150× 710× 985 |
1670× 800× 1050 |
Motor power(kw) |
2.2 |
2.2 |
3 |
5.5 |
11 |
Total weight (kg) |
186 |
330 |
400 |
585 |
950 |
