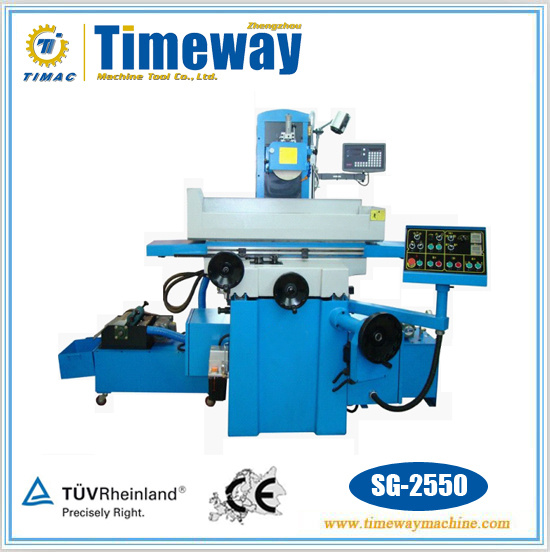

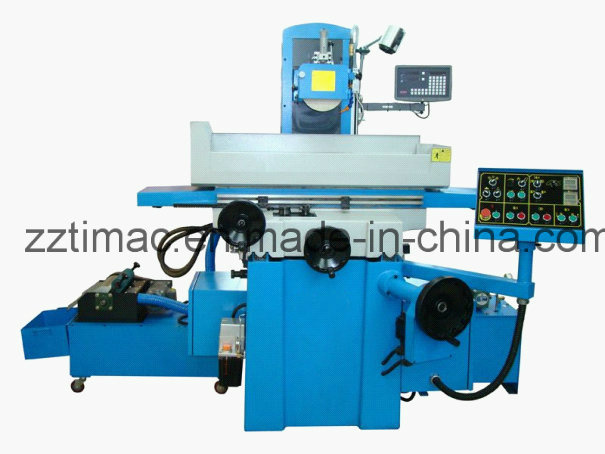

Small Sized Saddle Moving Surface Grinding Machine Surface Grinder
PART 1---Product Description
Standard Accessories:
Wheel chuck, Wheel balancing arbor, Wheel extracting units, Coolant tank, Work light, Tool box & tools, Wheel dresser(without diamond pen), Standard wheel, Leveling wedges and foundation, Electric magnetic chuck, PLC auto. grinding controller
(only for AHD model), Operation manual(English edtion).
Optional Accessories:
Wheel balancing stand, Parallel dresser, Cooling system with paper filter, Cooling system with magnetic separator, Cooling system with magnetic separator & paper filter.
Parameter:
Specification |
Unit | SG-2050AH |
SG-2550AH |
| SG-2050AHR |
SG-2550AHR |
| SG-2050AHD |
SG-2550AHD |
Table size (W×L) |
mm |
200x460 |
250x500 |
Longitudinal travel |
mm |
510 |
560 |
Cross travel |
mm |
238 |
275 |
Max. distance from spindle to table |
mm |
450 |
450 |
Electro magnetic chuck size |
mm |
200x460 |
250x500 |
Speed of table longitudinal move |
m/min |
7~23 |
Table cross
movement |
Auto feed |
mm |
0.1~8 |
Rapid feed |
mm/min |
990 |
Handwheel feed |
mm/div |
0.02 |
Wheelhead
vertical
movement |
Auto feed |
mm |
0.005/0.01/0.02/0.03/0.04/0.05 (Only for AHD series) |
Rapid feed |
mm/min |
460 (Only for AHR/AHD series) |
Handwheel feed |
mm/div |
0.005 |
Grinding
wheel |
Spindle speed |
rpm |
50HZ: 2850 / 60HZ: 3450 |
Wheel size |
mm |
200x 20 x31.75 |
Spindle motor |
kw |
1.5 |
2.2 |
Hydraulic pump |
kw |
0.75 |
Cooling pump |
kw |
0.04 |
Elevating motor |
kw |
0.25 (AHR model) / 0.5 (AHD model, Servo motor) |
Cross feed motor |
kw |
0.04 |
Total rated power |
kw |
3 |
3.7 |
Max. loading capacity (include chuck) |
kg |
120 |
180 |
Height of the machine |
mm |
1675 |
Floor space (L×W) |
mm |
2050x1400 |
2300x1650 |
Gross weight |
kg |
1600 |
1800 |
Package size (L×W×H) |
cm |
190x172x218 |
200x210x218 |
Tips:
AH: auto feed on transverse, hydraulic transmission on longitudinal, manual on vertical.
AHR:auto feed on transverse, hydraulic transmission on longitudinal, rapid movement
on vertical
AHD:auto feed on transverse, hydraulic transmission on longitudinal, auto feed on
vertical.
