Product Specifications
| Prod Model: |
JMDM-ISW2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Power Supply: |
AC220V 50Hz |
| Communication Interface: |
WiFi |
| Two Working Types: |
Work Offline and Real Time Control Online |
| Shell Size: |
210*125*43mm (L*W*H) |
| Installation: |
Floor |
| Hole-Digit: |
3 Digits |
| Grounding: |
Standard Grounding |
| Customized: |
Customized |
| Condition: |
New |
| Application: |
Residential/General-Purpose |
| Housing Material: |
ABS |
| Color: |
Blue |
Product Description

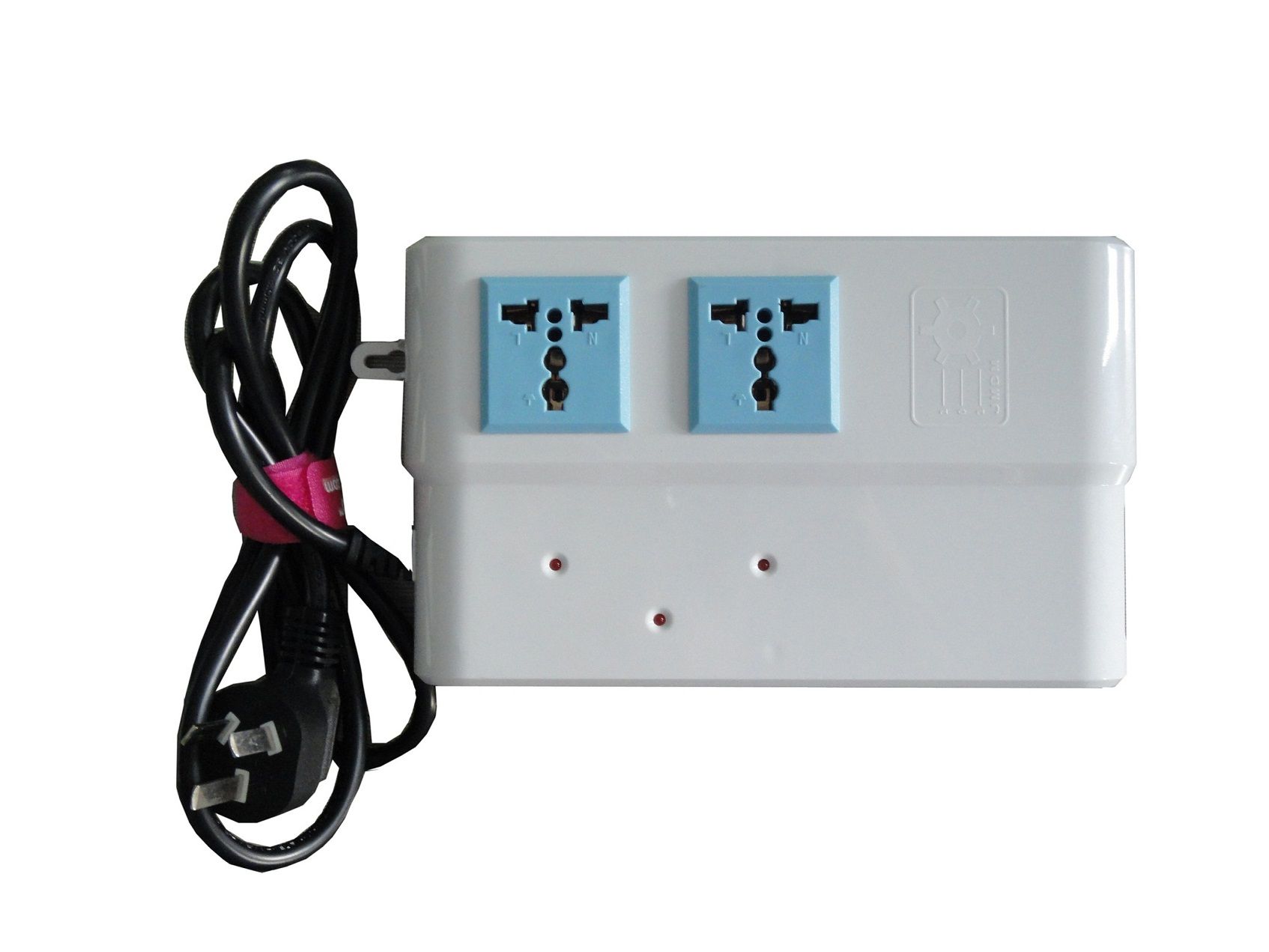

Smart 2 channels socket WiFi outlet
Introduction
It is a industrial or civil2 channels smart power plug, high stable and reliable.
It can be real time controlled by computer, mobile phone or network or run automatic offline after the timing parameter is set.
Function
1. Working power supply: AC220V 50Hz, with anti-lightning component to protect the circuit, stable and reliable
2.32 Bits high performance single chip microcomputer control; Programme storage space: 128K, Date storage space: 64K (if there is specific requirements); Save data and the data will not lose if the power is cut off
3. Communication interface
JMDM-ISW2 - WiFi control type: There is one channel WiFi communication interface, upper computer can control the switch of the plug by WiFi, it also can realize control the smart plug by mobile phone, PC and WiFi.
WiFi module main feature:
Baud rate: 2400-115200 can adjust the transparent serial port
Support static IP set and DHCP to get the address
Support serial port set the parameter online
Support WEP64/128, WPA/RSN(WPA2)-PS encryption
Support Snet module(UDP, TCP, S/C three types data pass though mode
Conform 802.11b/g standard, support Ad-Hoc network and basic network mode
Support smart phone, PDA, PC, iPad etc. Terminal device connect to the WiFi module directly
Completely Protocol stack in the module can support ARP, IP, ICMP, SHCP client side and DHCP server etc. Protocols, flexible set through serial port. Have a combination of general serial interface, PWM and multiple channel general IO input and output functions etc...
4. Two channels smart plug output instructions:
Using phone electric isolation output control type, it can effectively prevent the product on the electric instant misoperation, stable and reliable. The plug pass the CE and it can load AC voltage up to 250V, the max output current is 12A. Conduction with 220V AC output, it can provide power supply to external electrical equipment. The external electrical equipment will outage immediately when the AC 220V is cut off.
5. Stable of the system: Has Industrial grade lightning protection, strong resistance to electromagnetic interference, high reliability, no crash phenomenon
6. Two working types: Support work offline and real time control online
7. Working states indicator light: One indicator light per channel plug output used to observe the output point working condition convenience. Another indicator light used to show if current AC 220V provides normal power supply.
Usage
JMDM-IS serial smart plug can realize set timing parameter and work offline and real time control by upper PC communication interface two work types.
1. Set timing parameter work offline
User can use the time setting interface provided by our company and connect the computer to smart plug by USB when user set the time; The time recycle setting includes the follow:
A: Week recycle: One week, X day X hour X minute X second: On, X day X hour X minute X second: Off
B: Day recycle: One day, X hour X minute X second: On. X hour X minute X second: Off
C: Hour recycle: One hour, X minute X second: On, X minute X second: Off
D: Minute recycle: One minute, X second: On, X second: Off(Such as the plug is on in the fifth second, and off in the fortyth second)
2. Real time control by communication interface
We will provide the computer software, phone software, iPad software or GSM communication format, serial port communication protocol etc. According to the type of the smart plug, it is convenience to realize real time control the smart plug by the related communication interface.
|
JMDM-IS serial smart power plug can set timing parameter by upper computer,according to the different on-line control methods, it can be divided to the following types: |
|
1.JMDM-ISS2 |
Serial port control type |
|
2.JMDM-ISU2 |
USB control type |
|
3.JMDM-ISW2 |
WIFI control type |
|
4.JMDM-ISM2 |
315m wireless control type |
|
5.JMDM-ISN2 |
network control type |
|
6.JMDM-ISG2 |
GMS control type |
