Product Specifications
| Prod Model: |
C200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
SMD Components, Reel and Parts Counter |
| Certification: |
ISO |
| Automatic Grade: |
Automatic |
Product Description

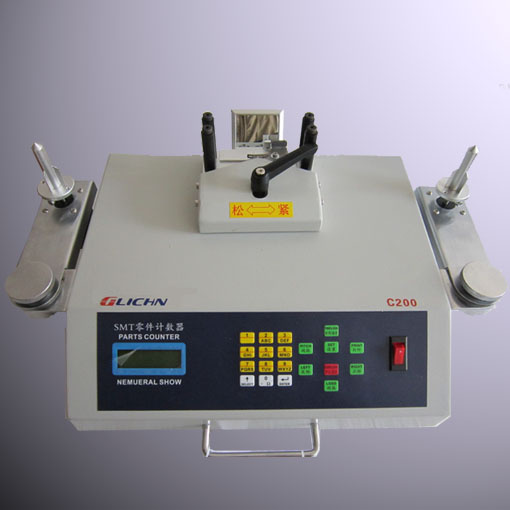

High precision SMD component counter
By using the principle of photoelectric sense, C-200 Series Component Counter(SMD Counter) can take the advantage of the relations between the reel holes and the parts and count the SMD parts accurately and quickly. It is the high-efficient auxiliary equipment for SMT material management.
High-Speed Motorized SMD Component Counters
Automatic SMD Counters supplied by Beijing Glichn, Fast speed, error free. Models include reel counters with barcode scanner and label printer that identify and record quantity and date information. Reel width 8mm to 560mm is available and count-99999 to 99999 components. Pocket-Check feature allows operator to detect missing components.
Features
High precision and errors free counting.
All SMD general-purpose reeling packing parts are applicable.
Count forward and backward;
Double counter feature ensures accuracy
Built-in memory allows you to preset count quantity;
Simple operation and unique pocket dropping-proof design will minimize damage to the tape.
Inclined operation panel enables users to see SMD parts in display and pockets.
Max reel width is 560mm, max SMD pitch 560mm;
Specification
Power supply 220V/50Hz or 110V/60Hz 30W
Machine size 47*30*18 CM
Count range -99999 to 99999
Weight 12KG
Application tapes All SMD reels
Reel width 8, 12, 16, 24, 32, 44, 56
Reel pitch 2, 4, 8, 10, 12, 16, 24, 32, 44, 56
Missing component/Empty chip detection Yes (Option C300L available)
Label Print Yes (Option SU2000 available)
Bar code scan Yes (Option SU2000 available)
Option function
1 SMD Missing component/Empty chip detection
2 Label Print
3 Bar code scan
Operation
Please see our product video SMD component counter C200 series.
As electronic industry development, surface mount technology and through hole technology are more and more known and used in the market. Beijing Glichn S&T Development Co., Ltd devoted itself to supply perfect machines covers surface mount assembly process from PCB prototype to middle volume assembly.
At the beginning times, we sales some manual PCB assembly equipments like manual stencil printer, pick and place machine and others, but not for long; Beijing Glichn has covers automatic SMT assembly, BGA rework station, automatic through hole equipments. We provide PCB prototype and semi conductor equipments to research, university and small production assembly; At same time Glichn provide automatic LED screen printer, large size reflow oven, bench top pick and place machine, PCB magazine conveyor and handle loader, lead free wave solder machine and SMD peripheral devices to large batch printed circuit boards enterprises.
Feature products include reflow oven, wave solder machine, PCB magazine loader, PCB unloader, SMD component counter, solder paste mixer, PCB lead cutting machine, forming machine and so on.
We also offer technical data, convenient sales consultation, on-site training, annual maintenance and one-year warranties for each system and product we sell.
Working with us, you will experience the best serves every users needs, reasonable pricing, on time delivering and after-sale service. We believe that joining with us is pleasure and valuable.
