Product Specifications
| Prod Model: |
ZJR1-Z 3055 ZJR1-Z3075, ZJR1-Z3110, ZJR1-Z3150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Range: |
5.5kw~600kw |
| Input Voltagei: |
380V,440V |
| Input Frequency: |
50/60Hz |
| Function: |
Automatic Control |
| Certification: |
CE |
| Structure: |
Combination |
| Signal: |
Continuous |
| Task: |
Protection |
Product Description

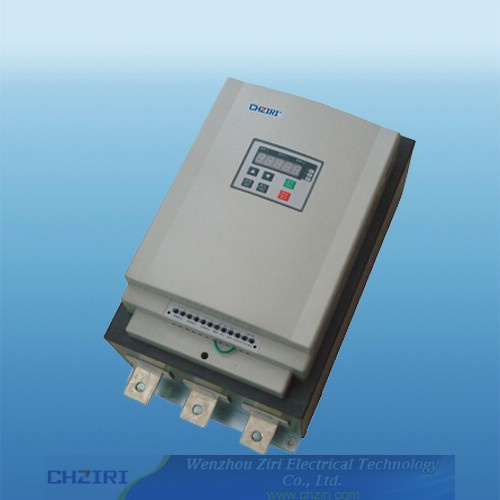

ZJR1-Z series soft starter are without bypass contactor
Power Range: 380 V grade 5.5 ~ 500KW
Product characteristic:
ZJR1-Z-series soft starter device type can work without three-phase AC motor in the process of starting too big acceleration torque, and power supply system plays a protection from excessive current harvest dynamic impact role, has the following characteristics:
1.16 SCM control, intelligent all-digital display;
2. Can be put into practice a soft starter control multiple motors;
3. Four starting modes: Start voltage, current limiting starter, starting torque, torque + sudden danced dynamic;
4. Free and soft shutdown, downtime 0 to 60 seconds can be arbitrary choice;
5. With the flow, over loading, lack phase, instantaneous stop, and other malfunction protection;
6. Easy installation, simple operation, strong function and reasonable prices;
Scope of application:
ZJR1-Z series soft starter motor applies to centrifuges, blower, compressor, transport planes, mixer, rolling ball mill broken machinery and mechanical equipment motor starter.
|
Specification |
|
Type |
Power(KW) |
Vltage(V) |
|
ZJR1-Z3055 |
5.5 |
380 |
|
ZJR1-Z3075 |
7.5 |
380 |
|
ZJR1-Z3110 |
11 |
380 |
|
ZJR1-Z3150 |
15 |
380 |
|
ZJR1-Z3185 |
18.5 |
380 |
|
ZJR1-Z3220 |
22 |
380 |
|
ZJR1-Z3300 |
30 |
380 |
|
ZJR1-Z3370 |
37 |
380 |
|
ZJR1-Z3450 |
45 |
380 |
|
ZJR1-Z3550 |
55 |
380 |
|
ZJR1-Z3750 |
75 |
380 |
|
ZJR1-Z3900 |
90 |
380 |
|
ZJR1-Z31100 |
110 |
380 |
|
ZJR1-Z31320 |
132 |
380 |
|
ZJR1-Z31600 |
160 |
380 |
|
ZJR1-Z32000 |
200 |
380 |
|
ZJR1-Z32500 |
250 |
380 |
|
ZJR1-Z33150 |
315 |
380 |
|
ZJR1-Z34000 |
400 |
380 |
