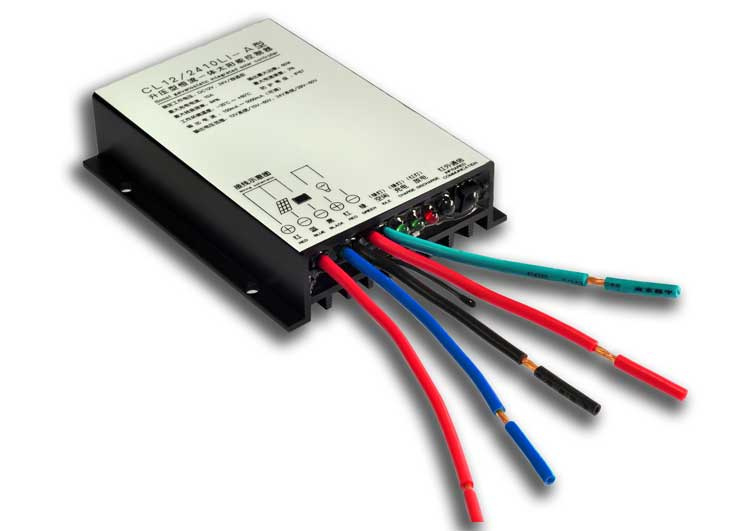

Solar Light Controller Auto Dusk-Dawn Timer

Solar Light Controller Auto Dusk-Dawn Timer
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union
Contact Supplier
Showroom Product Company Profile
General description: This series have CL12/2410LI-A, CL12/2410LI-D, and CL12/2410LI-E. This series are all integrated with LED constant current driver. The output current are adjustable for 3 time frames.

CL12/2410LI-E has a function of automatic time controlling at dusk and dawn according to different seasons, so you needn't adjust the working time of the lights in different seasons.

Features:
(1) Waterproof IP67

(2) Wireless computer connection: Our controller can connect computer wirelessly through our company's programmer. Then we can set the controller's parameters such as protection voltage, the working time and the light's power and so on

(3) 3 time frames output current regulation: This controller divides the discharging into 3 time frames, and the output current can be adjusted. Every time frame ranges from 10 minutes to 990 minutes. The output current of every time frame ranges from 150mA to 4800mA.

Protection function: Lightning protection, overcharge and overdischarge protection, reverse polarity protection, reverse current protection at night, open circuit protection, short circuit protection, over current protection, over voltage protection, over load protection, and over temperature protection.

Delivery details: 3-25days depends on the quantities.
Packaging Details: 1PC/box, 36PCS/carton, carton size: 435mm× 227mm× 267mm, gross weight: 11.8kg.
Model CL12/2410LI-E
Input voltage DC12V/24V
Output voltage 15-60V/29-60V
Self consumption Average static power consumption 16 mA
Max. charging current 10A
Max. output power 60W
Max. conversion efficiency 94%
Output current error ∠ 3%
Range of output current 150mA  -  4800mA
Max. solar panel 175WP(12V system)  /  360WP(24V system)
Max. solar panel voltage DC55V
Working temperature -35  ~  60º C
Charging mode MCT mode(Automatically tracing solar panel’ s Max. charging current)
Working mode Light controlling and time controlling and constant current; 3 time frames
Parameter setting infrared remote control
Over-charging voltage protection 14.5/29.0V(normal temperature, with temperature compensation)
Under voltage protection Users can set it according to their needs (factory default 11V/22V)
Exit under voltage protection Users can set it according to their needs (factory default 12.5V/25V)
Intensity of illumination for turning on lights Users can set it according to their needs (factory default 5lux)
Intensity of illumination for turning off lights Intensity of illumination for turning on lights plus 10lux
Weight 275g
Material Aluminum
Size 97mm× 76mm× 23mm
Application scope 12V/24V solar LED lighting system
IP grade IP67
Lifetime more than 50, 000 hours
CL series are intergrated with LED driver. That means the LED light needn’ t include driver, so the cost of driver is saved. CL series have the function of output current adjustable, and this function realize the load’ s power adjustable. For example, a 30W LED lights can work as follows:
The first time period:           300minutes(5hours)            30W
The second time period:       300minutes(5hours)            10W
The third time period:               180minutes(3hours)            20W
If you use ordinary solar controller, the 30W LED lights will work as follows:
The first time period:           300minutes(5hours)            30W
The second time period:       300minutes(5hours)            30W
The third time period:               180minutes(3hours)            30W
Thus our CL series help save 130Wh.

Suppose the 30W LED lights works 13 hours a day. The sun time per day is 4 days. The rainy days are 7 days. Let’ s compare the configuration bewteen these two solar light system.
Solar controller ordinary CL series Comparison
Solar panel 285Wp 190Wp 95Wp
Battery 3PCs 12V 120Ah 2PCs 12V 120Ah 1PC 12V 120Ah
Conclusion: CL series help save solar panel 95Wp, battery 1PC 12V 120Ah. Thus the solar lights using CL will save a lot of money.
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 97mm×76mm×23mm
Weight: 275g
Certificates: CE ISO
Model: Cl12/2410li-E
Application: Lighting Controller
