Product Specifications
| Prod Model: |
Rigao PCB&PCBA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

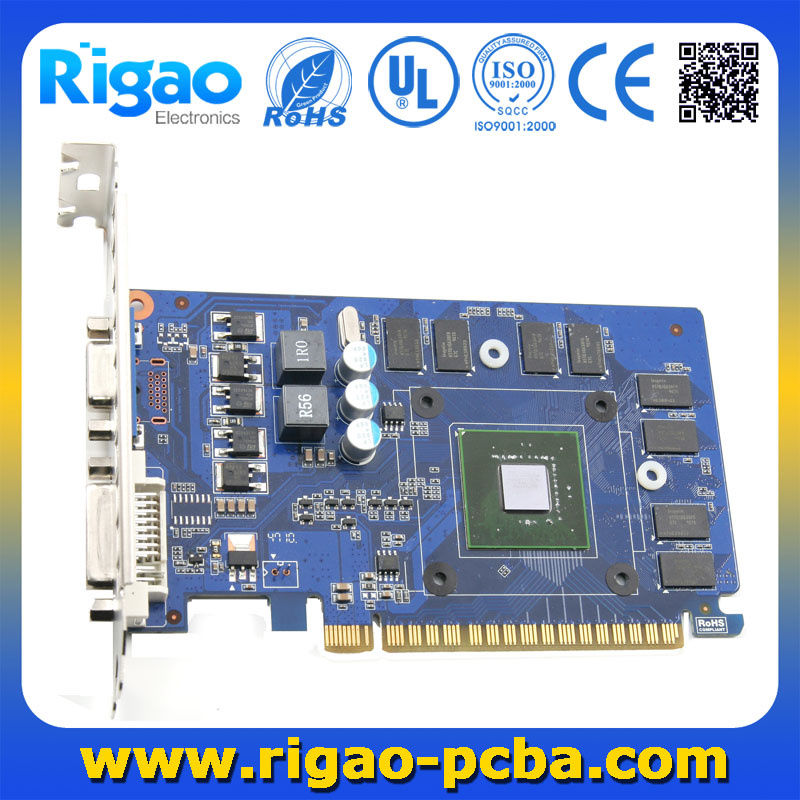

Soldering Components To Circuit Board
Shenzhen Rigao Electronics Co, . Ltd. Is focus on manufacturing Printed Circuit Boards(PCB) and PCB Assembly(PCBA). OEM PCB, SMT, DIP and PCBA Assembly are our strengths.
Our aim: High quality, low cost & fast delivery for PCB and PCBA.
Service: One-stop-service for PCB and PCBA.
Verification: UL, ISO9001: 2000, RoHS
Product Description:
1. Single-sided PCB, double side & multi-layer PCB with competitive price, good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium batch production.
6.100% E-Test.
PCB Base Material: FR4
PCB Copper Thickness: 1/1
PCB Board Thickness: 1.6mm
PCB Min. Hole Size: 0.25mm
PCB Min. Line Width: 0.1mm
PCB Min. Line Spacing: 0.1mm
PCB Surface Finishing: HASL.
.Detailed Specification of PCB Manufacturing
| Types: | Single-sided, Double-sided, Multi-layers (max 6 layers) and
Rigid-flexible PCB, Aluminium board |
| Surface Finishing: | HASL(LF), Gold plating, Electroless nickel immersion gold,
Immersion Tin, OSP(Entek) |
| Base Material: | Polyimide(Kapton), Polyester(PET), Aluminium, FR4 |
| Copper Foil: | ED/RA |
| Min. Line Width: | 2 mil |
| Min. Line Spacing: | 2 mil |
| Min. Hole Size: | 0.2mm |
| Max. Board Size: | 800x400mm |
| Min. Board Thickness: | 0.1mm |
| Min. Solder Mask Thickness: | 10um |
| Solder Mask Types: | Green, yellow, black, white, blue, red and clear |
| Profiling: | Punching, Routing, V-cut |
| Soldering Thermal Resistance: | 300°C/10 seconds |
| Peeling Strength: | ≥1.4kg/cm |
| Surface Resistance: | 105mΩ |
| Insulation Resistance: | 105mΩ |
| Dielectric Strength: | 9.8x105v/cm |
| Flammability: | UL-94V-0 |
| Performance Test: | 100% electrical and electricity performance test |
Q: Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and better quality.
Q:What does anytcl need for a customized Electronic pcb assembly order?
A:When you place a Electronic pcb assembly order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products.
Q:How do you ship the goods and how long does it take?
A: We usually ship by UPS, TNT ,DHL, FEDEX.
Our service:
1.We provide 360 days warrantly.
2.If the item you purchase from our store are not of perfected quality,that is they
do not work electronically to manufacturers specifications, simply return them to
us for replacement or refund.
3.If the items is defective, pls notify us within 3 days of delivery items
4.Any must be returned in their original condition to qualify for a refund or buyer
the replacement
5.The buyer is responsible for all shipping cost incurred.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
