Product Specifications
| Prod Model: |
All Various |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sales Market: |
20 More Than Countries |
| Warranty: |
1 Year |
| Control Way: |
Automatic PLC System |
| Structure Mode: |
Four Column, Frame Type |
| Heating Mode: |
Electrical, Oil |
| Type: |
Tire Machinery |
| Type Of General Rubber Machinery: |
Material Processing Machine |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Certification: |
CE, ISO |
Product Description

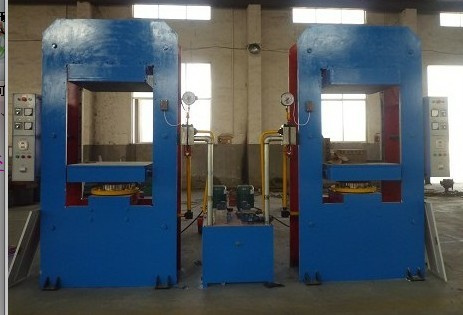

This machine is used for vulcanizing the solid tire.
It's four column/frame type. Consists of main unit, hydraulic system, electric control system.
Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
|
Parameter |
YLL-8/4000 |
YLL-5/6000 |
YLL-4/8000 |
YLL-3/10000 |
YLL-1/30000 |
|
Clamping force KN |
4000 |
6000 |
8000 |
10000 |
30000 |
|
Hydraulic pressure MPa |
20 |
16 |
16 |
17 |
17 |
|
Diameter of piston mm |
500 |
710 |
800 |
870 |
1500 |
|
Stroke of piston mm |
1000 |
1140 |
950 |
700 |
850 |
|
Heating platen area mm 2 |
750x750 |
975x975 |
1250x1250 |
1600x1600 |
2060x2060 |
|
Number of layer |
8 |
5 |
4 |
3 |
1 |
|
Daylight mm |
270 |
458 |
550 |
550 |
1200 |
|
Heating type |
steam |
steam |
steam |
steam |
steam |
|
Heating temperature °c |
150-180 |
150-180 |
150-180 |
150-180 |
150-180 |
|
Steam pressure MPa |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Power of motor |
11 |
11 |
11 |
15 |
22 |
