Product Specifications
Prod Model: |
LLT006 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
48*60*22mm |
Frequency: |
L1, 1575.42 MHz |
Applification: |
Real-Time Location/Inquiry |
Weight: |
100g |
Module: |
Sirf3 |
Operating Temperature: |
-45 to 65° C |
Voltage: |
12V-24V |
CPU: |
Ti: Msp430f149(16MHz) |
Accessories: |
Device, Relay, Connection Cable |
Warranty: |
12-Month |
Type: |
GPS Tracker |
Use: |
Automotive |
Carrier Frequency: |
GSM/GPRS(850/900/1800/1900MHz) |
Brand: |
Lsailt |
Product Description

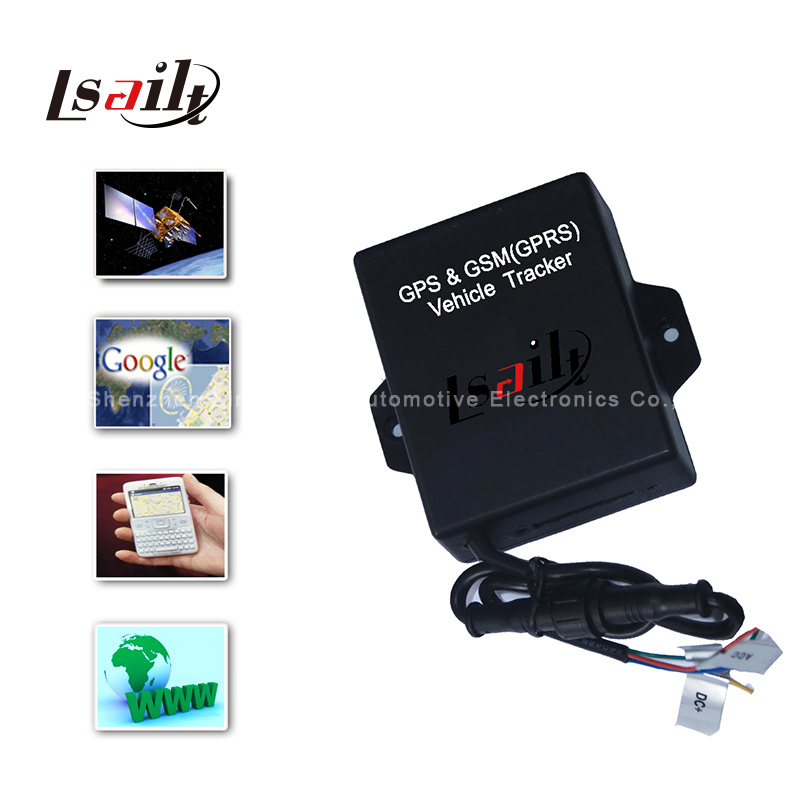

APPLY TO: (MINI GPS Tracker)
Motorcycles/Electro mobile/Personal Car/Fleet Management Came with SIRF III GPS Mini GPS Tracker, GPS tracking system, GPS\GPRS tracker, GPS tracker device
LLT006 (Built-in GPS/GSM, easy installation) With PORT specification
1. SIM: Port for SIM card
2. LED: Status light
3. DC+: Connect to + of battery
4. ACC: Connect to Ignition Line
5. POff: Connect to relay to control Engine of auto
6. GND: Connect to – of battery
Specifications:
Size (L x W x W): 48 x 60 x 22mm, only 100g
Can be hidden discreetly in the vehicle
Great quality technology
Two-year warranty included up to five years possible
No external antennas for GSM and satellite
Voltage: 12 to 24V
Operating temperature: -45 to 65° C
Features:
Real-time positioning and tracking
3-month tracking history
Reports: Mileage, stop/start time, idling time, over-speed, alarm records and more
Real-time upload location information via time/distance interval
Geo-fence mode: Unit sends a alarm/message when it leaves a preset area
Unlimited user's access, different user level
Cut-off or turn-on the engine remotely via SMS or online
Track every 15 seconds the location
Principle
GPS TRACKING SYSTEM CONTAINS GPS MODULE and GSM MODULE
* GPS MODULE is responsible for locating (Longitude/Latitude/Data/Time/Speed/Angle)
* GSM owes SMS, CALLING, and INTERNET (GPRS/3 G WCDMA)
HOW TO WORK?
GPS TRACKER SYSTEM which will send Location Information Based GPS MODULE to Server through GPRS! Than Server will save date so that User can search Vehicle real position and trajectory playback!
User can search and monitor a vehicle by GOOGLE earth
Hardware Description
LLT006, LLT008, and LLT024 adapt Technical module with stable system
GPS MODULE: SIRF4
GSM MODULE: SIM900
CPU: LLT006/LLT008 adapt IT Chip MSP430F149
LLT024 MSP430F5419
Main Features |
Size and Weight |
SiRFIII and Quad Band 850/900/1800/1900Mhz
GPS + LBS Tracking
Track by SMS/GPRS (LLT Protocol)
Track on Demand
Track by Time Interval
Track by Distance Interval
Track on Mobile Phone
Over Speed Alert
Geo-fence Alert
Sleep Mode, Low power consumption
Remote Engine Cut off
Remote Self Failure Analysis
Inbuilt GPS & GSM antennas
Easy to Install and Maintain |
LLT006 Dimension
48x60x22mm
LLT006 Net Weight
360g
Box Size
170x140x70mm
Gross Weight
0.47kg per box
Carton Size
510X430X380mm
(56 sets) |
Standard Packing |
LLT006 Main Device |
4-Pin Cable |
Relay |
User Maual |
|
|
|
|
