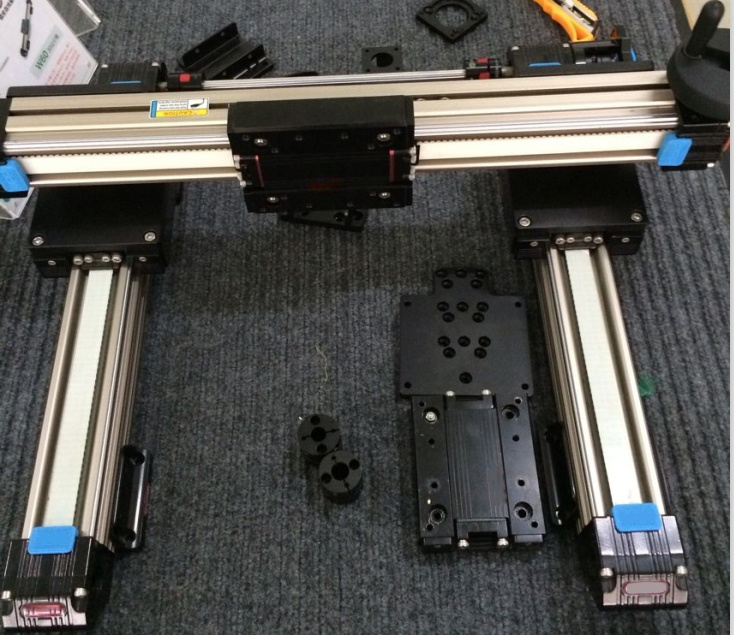

Linear guide rail/unit/part
1. AM products Characteristics:
Aluminum alloy profile with cam roller guide.
High rigidity & high accuracy.
Corrosion-protected & dust-proof.
Zero-clearance components connection with motor, drive, sensors, etc.
Plug and play offers clear benefits.
Simplify the mechanics design.
Replaceable components.
Cost saving.
Widely used in carving machine, cutting machine, assembly line, etc.
Multiple configurations, Low friction, Low noise, Low vibration, Low friction, Low noise, Low vibration.
As an option, AM can provide linear motion slides complete with motor, controller and control system. An extensive range of accessories is provided, including plate or strip covers, clamping fixtures for fastening.
2. ( 1 )Specifications:
Models available: N60, W45, W40, W50, W60.
Max carriage load: 5~30 kg.
Max moment: 2~10Nm.
Max speed: 1.5 m/s.
Linear accuracy: ± 0.05 mm.
Positional repeatability: ± 0.1 mm.
Total length available: 300mm - 4000mm.
Anodized aluminum housing with Chrome steel shaft.
Self-cleaning function.
Multiple configurations.
3 Lows - low friction, low noise, low vibration.
3 Highs - high quality, high performance, high cost efficiency.
Applications: Areas of application: All kinds of automatic production lines, automatic equipment, dispensing, coating, welding, packaging, handling, spraying, printing, laser cutting bed, laser cutting machine, laser engraving machine glue dispenser, photovoltaic back cutting carved film machine, conveying manipulator, time-lapse photography, auxiliary equipment, electric sliding table, scientific experiment and demonstration function, 3D printer, scanner factory conveyor, etc.
( 2 ) AM N60
60 mm X 40 mm (2.36 in X 1.57 in) body profile.
Belt drive.
Stroke lengths up to 2.75m (9.0 ft).
Carriage load up to 49 N (5kg, 11 lbf).
Maximum moments up to 3 Nm (26.6 lbin).
Speeds up to 1 m/s (39.4 in/s).
Linear Accuracy: ± 0.05 mm (± 0.002 in).
Positional Repeatability: ± 0.1 mm (± 0.004 in).
Profile available color: Champagne.
( 3 ) AM W45
45 mm X 40 mm (1.77 in X 1.57 in) body profile.
Belt drive.
Stroke lengths up to 2.75m (9.0 ft).
Carriage load up to 49 N (5kg, 11 lbf).
Maximum moments up to 3 Nm (26.6 lbin).
Speeds up to 1 m/s (39.4 in/s).
Linear Accuracy: ± 0.05 mm (± 0.002 in).
Positional Repeatability: ± 0.1 mm (± 0.004 in).
Profile available color: Champagne, Black & Silver.
( 4 ) AM W40 (Medium load duty)
40 mm X 40 mm (1.57 in X 1.57 in) body profile.
Belt drive.
Stroke lengths up to 2.75m (9.0 ft).
Carriage load up to 98 N (10kg, 22 lbf).
Maximum moments up to 5 Nm (44.3 lbin).
Speeds up to 1.5 m/s (59.1 in/s).
Linear Accuracy: ± 0.05 mm (± 0.002 in).
Positional Repeatability: ± 0.1 mm (± 0.004 in).
Profile available color: Champagne.
( 5 ) AM W50
50 mm X 50 mm (1.97 in X 1.97 in) body profile.
Belt drive.
Stroke lengths up to 2.70m (8.86 ft).
Carriage load up to 147 N (15kg, 33 lbf).
Maximum moments up to 5 Nm (44.3 lbin).
Speeds up to 1.5 m/s (59.1 in/s).
Linear Accuracy: ± 0.05 mm (± 0.002 in).
Positional Repeatability: ± 0.1 mm (± 0.004 in).
Profile available color: Champagne & Black.
(6) AM W60 ( Heavy load duty )
60 mm X 60 mm (2.36 in X 2.36 in) body profile.
Belt drive.
Stroke lengths up to 2.70m (8.86 ft).
Carriage load up to 245 N (25kg, 55.1 lbf).
Maximum moments up to 10 Nm (88.5 lbin).
Travel Speeds up to max. 1.5 m/s (59.1 in/s).
Linear Accuracy: ± 0.05 mm (± 0.002 in).
Positional Repeatability: ± 0.1 mm (± 0.004 in).
Profile available color: Champagne.
