Product Specifications
| Prod Model: |
23140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East |
| Inner Diameter: |
200mm |
| Outer Diameter: |
340mm |
| Thickness: |
112mm |
| Brand: |
Deina |
| Sealing: |
No |
| Dynamic Load Rating: |
900000 N |
| Static Load Rating: |
1800000 N |
| Limiting Speed: |
1500 1/Min |
| Reference Speed: |
1000 1/Min |
| Weight: |
43kg |
| Separated: |
Separated |
| The Number Of Rows: |
Double |
| Rolling Body: |
Roller Bearings |
| Load Direction: |
Radial Bearing |
| Outer Dimension: |
340mm |
Product Description

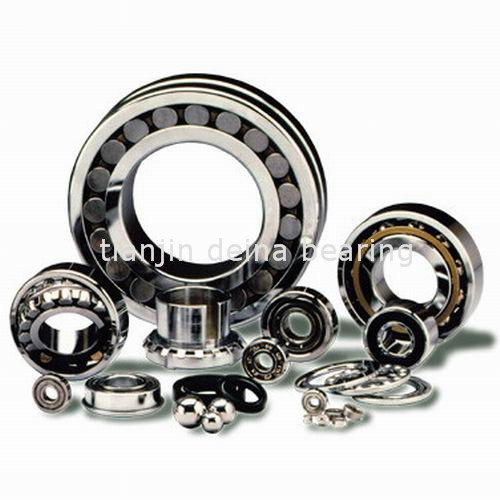

Spherical Roller Bearings 23140
Description:
1. The spherical roller bearings comprise of two rows of rollers, the outer ring with a common sphered raceway, and two inner ring raceways inclined at an angle to the bearing axis.
2. This design gives the bearings an attractive combination of design features making them irreplaceable in many demanding applications.
3. The bearings are self aligning and consequently insensitive to misalignment of the shaft relative to the housing and to shaft deflection or bending.
4. The spherical roller bearings can take high radial loads and high axial loads acting in both directions.
5. The bearings are produced in many sizes and designs, depending on the different arrangements of the floating guide ring, the inner ring and/or cages.
Features:
1. Two rows rollers &sphered raceway
2. High loads, self- aligning
3. High swiveling accurany
4. Low friction, long service life
|
Model |
d |
D |
B |
|
mm |
mm |
mm |
|
23140 |
200 |
340 |
112 |
|
23144 |
220 |
370 |
120 |
|
23148 |
240 |
400 |
128 |
|
23152 |
260 |
440 |
144 |
|
23156 |
280 |
460 |
146 |
|
23160 |
300 |
500 |
160 |
|
23164 |
320 |
540 |
176 |
|
23168 |
340 |
580 |
190 |
|
23172 |
360 |
600 |
192 |
|
23176 |
380 |
620 |
194 |
|
23180 |
400 |
650 |
200 |
|
23184 |
420 |
700 |
224 |
|
23188 |
440 |
720 |
226 |
|
23192 |
460 |
760 |
240 |
|
23196 |
480 |
790 |
248 |
|
231/500 |
500 |
830 |
264 |
|
231/560 |
560 |
920 |
280 |
|
231/600 |
600 |
980 |
300 |
Tianjin DeINA Bearing Sales Co., Ltd, has been in manufacture/research/development of bearing & bearing components for 15 years
The main products includes:
-----Ball bearing: Deep Groove ball bearings, Thrust ball bearings, Angular contact ball bearings, self aligning ball bearings, Insert Ball Bearings
-----Roller bearing: Spherical roller bearings, Tapered roller bearings, Cylindrical roller bearings, Needle Roller Bearings, CARB Toroidal roller bearing
-----Other bearings: Spindle Bearings, Bearing housing, Pillow block bearing, Bearing Ball, Miniature bearings and Adapter Sleeves.
Our manufacture range is from 8mm to 3 meters, and we have large stock at present. The material we mainly using includes Chrome Steel GCR15, high Carbon Steel GCR11 and stainless steel.
Our bearings successfully used in some of the following fields: Automotive Trucks, Railways, Shipping, Mining, Steel Industries, Petrochemicals, Power generation including Agricultural machinery, Textiles, Outer Space Fight, Civil & Military aviation.
With advanced technology and fine product quality, for the last 5 years international trading, Our products are of good reputation & well sells to Mid-East, North & South American, European, & Asia Countries etc, And got good reputation.
"Trust is no boundary, friendship is no boarder" we welcome any end user/agency/OEM/ODM projects. DeINA- be your trust.
