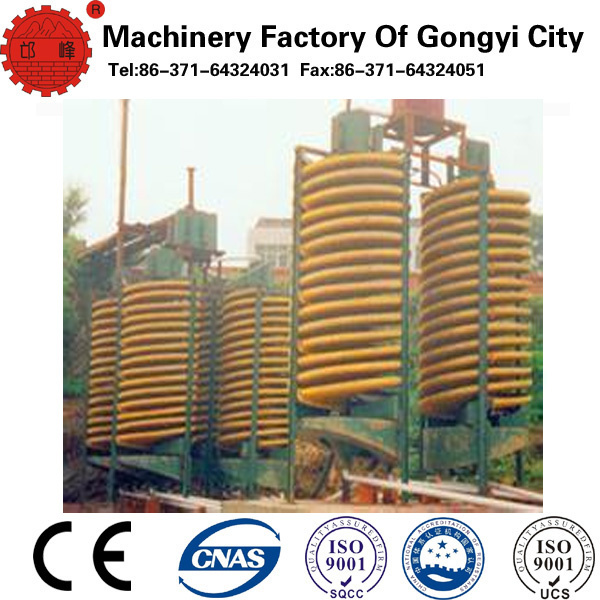

We will offer warm-hearted service to youMineral spiral chute, spiral plant for iron sand separate
Spiral uses gravity to separate particles of different densities. It is used globally in the mineral processing industry.
Working principle:
In order to have a good separation, there should be a difference in Specific Gravity's of at least 1.0. One main benefit of spiral concentrators is they have no moving parts. The feed range, in percent solids, to a spiral ranges from 20% solids up to 40% solids. Depending upon the material characteristics, a maximum efficiency will usually be reached somewhere in this range. All that is required are some slurry pumps, the slurry to be separated and the banks of spirals with a feed distributor.
Spiral Separator is applicable for selecting materials with size 0.3--0.02mm, such as iron ore, ilmenite, chromite, pyrite, azorite, rutile, monazite, phosphorite, oxide ore, tin ore, tantalum ore, niobium ore and other nonferrous metals with distinct specific gravity difference, and rare matels and nonmetal minerals. The concentrating process is stable and easy to control with this spiral chut, allowing feeding thickness change to a large extent.
Spiral Chute features:
1. It is the newly re-selecting equipment for gravity way mineral processing.
2. It is a high efficiency gravity concentrator of the international advanced standard.
3. It is widely used to separate the hematite, stannum, tungsten, tantalum, niobium, gold ore, colliery, monazite, rutile and zircon of the size between 0.3 and 0.02mm , and the other metals and nonmetal minerals of enough proportion deviation.
This machine is used in classifying the gold,silver,lead,the tunsten,the titanium,the iron(red iron,Brown iron)and the other nonmetals.
Model | Outside diameter (MM) | inside diameter MM) | Pitch of screw | Rate | Gradient | Number of threads | Number of turns | Max feed size |
DI2000 | 2000 | 2000 | 1200 | 0.6 | 9 | 2-4 | 3.5 | 0.04-4 |
DI1500 | 1500 | 1500 | 900 | 0.6 | 9 | 2-4 | 4 | 0.03-0.3 |
DI1200 | 1200 | 1200 | 720 /540 | 0.6 | 9 | 2-4 | 4-5 | 0.03-0.3 |
I1900 | 900 | 900 | 540/360 | 0.4 0.6 | 9 | 2-3 | 4-5 | 0.03-0.3 |
I1600 | 600 | 600 | 390/360 | 0.4 | 9 | 1-2 | 4-5 | 0.02-0.2 |
I1400 | 400 | 400 | 180 | 0.45 | 9 | 1-2 | 4-5 | 0.02-0.2 |
Max feed Size | Capacity (L/H) | Area m³ | Heightm) |
20-40 | 15-45 | 57 | 6-8 |
20-45 | 10-25 | 58 | |
30-50 | 4-6 | 20 | 523 |
30-50 | 2-3 | 1.2 | 3.2-4.2 |
30-50 | 0.8-12 | 0.5 | 2.6 |
30-50 | 0.5-0.2 | 0.25 | 1.3 |
