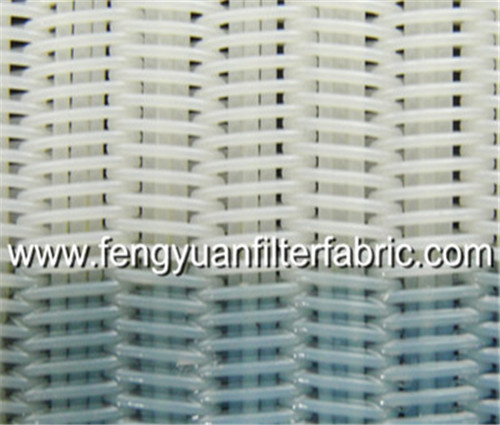

Sprial Mesh Filter Belt for Industry Process
Fengyuan nonwoven fabrics are widely sale in domestic and aboard due to reliable price and high quality. All of the spiral fabrics are made of first class monofilament and according to Finland standard.
1,Specifications of Nonwoven fabric
Type | Ring spec | Thread Dia(mm) | Tensile strength | Thickness | Weight | Air permeability |
mm | Warp | Weft | N/cm | mm | m 2 kg | m 3 /m 2 h |
Super loop | 4.8X10 | 0.9 | 1.1 | 2300 | 3.03 | 1.64 | 21000±500 |
Large loop | 3.8X7.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.4 | 18000±500 |
Medium loop | 3.5X6.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.31 | 16000±500 |
Small loop | 3.2X5.2 | 0.5 | 0.8 | 1800 | 1.87 | 0.97 | 15000±500 |
2,Descriptions of Nonwoven fabrics
Model | Small/Medium/large/Super |
Thread Diameter | 0.5mm-1.1mm |
Air permeability | 15000-20000 |
Feature | 1) Stable property |
2) Acid,alkali and chemical resistance |
3) Heat resistance under 180 degrees |
4) Wear resistance,long service life |
5) Easy cleaning,easy installment |
Application | 1) Polyester spiral dryer fabric is mainly used in papermaking industry,such as producing carboard,kraft paper,corrugated paper,paper for train fare,single two-shed press-filter etc. |
2) Polyester spiral dryer fabric can instead of papermaking machine dry blanket,canvas. |
3) It is also used in colliery,food and medicine as conveyor belt. |
Woven Fabrics
Fengyuan woven fabrics are widely sale in domestic and aboard due to reliable price and high quality. All of dryer fabrics are made of first class monofilament and according to Finland standard.
Specification of Woven fabrics
Weaving type | Model No. | Filament diameter(mm) | Density(root/cm) | Thickness | Air permeability |
Warp | Weft | Warp | Weft | mm | m3/m2h |
3-shed series | 22503 | 0.5 | 0.5 | 24 | 12 | 1.06 | 1.9 |
22453 | 0.45 | 0.45 | 24 | 13 | 0.99 | 1.7 |
24503 | 0.5 | 0.5 | 25 | 12 | 1.1 | 1.9 |
24453 | 0.45 | 0.45 | 25 | 13 | 1.02 | 1.8 |
4-shed series | 20504 | 0.5 | 0.5 | 22 | 12 | 1.15 | 2 |
22504 | 0.5 | 0.5 | 24 | 12 | 1.26 | 2.1 |
24504 | 0.5 | 0.5 | 26 | 12 | 1.3 | 2.1 |
18504 | 0.5 | 0.5 | 20 | 11 | 0.85 | 2 |
Round yarn dryer fabrics | 4106 | 0.5 | 0.7 | 22.8 | 12.4 | 1.3 | 1.75 |
0.3 |
Flat yarn dryer fabrics | 4106-1 | 0.58 | 0.35 | 21 | 15 | 1.2 | 1.5 |
| 0.37 | 0.68 |
4106-2 | 0.58 | 0.35 | 21 | 14 | 1.2 | 1.5 |
| 0.37 | 0.68 |
4106-3 | 0.58 | 0.35 | 21 | 13 | 1.2 | 1.5 |
| 0.37 | 0.68 |
4106-4 | 0.58 | 0.35 | 21 | 13.5 | 1.2 | 1.48 |
| 0.37 | 0.68 |
3. About Fengyuan Mesh
Fengyuan Mesh is an SGS "Audited Supplier" specialized in various filter fabrics and paper machine clothing.The factory was established in North China in 1986. now is one of top 10 in China market.
Shenzhen Feng Yuan Mesh Industry Co., Ltd is a manufacturer and supplier specialized in the research, development and production of various filter fabrics and paper machine clothing. The factory was established in North China in 1986, now is one of top 10 in China industrial textile market. There are 26000 square meters, 3 workshops in the factory. And 2 sets of TEXO looms (12.5m width), 11 sets of China-made looms, 3 heat-setting machines, and 40 sets of seaming machines.
With well-equipped facilities and excellent quality control throughout all stages of production, all of our products comply with international quality standards ISO9001 and are greatly appreciated in a variety of different markets throughout the world.
Our main products are various filter fabrics and paper machine clothing, such as forming fabrics, dryer fabrics, pulp fabrics, spiral filter fabrics, woven filter fabrics, sludge dewatering fabrics, etc. Advantages of our products are good water permeability, wear resistance, corrosion-resistance, anti-acid, anti-alkali, high heat resistant, and stable size, etc.
We are committed to be one of the most reliable and efficient overseas partners. With good quality, timely shipment, reasonable price and excellent services, our products are welcome by the domestic and worldwide customers. We will create a prosperous tomorrow together with both old and new customers.
