Product Specifications
| Prod Model: |
SPD2500B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Finishing Machine |
Product Description

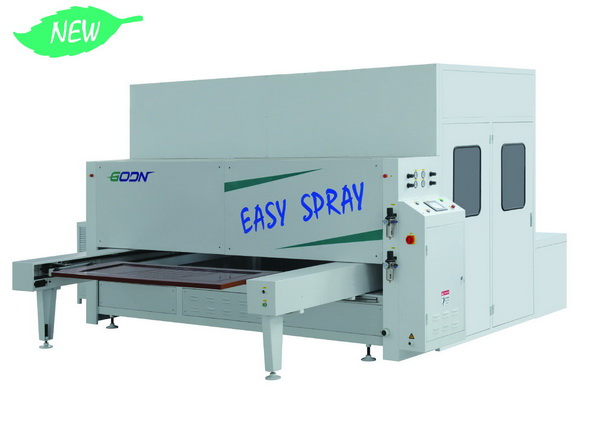

Spraying machine (for door)designed by GODN specially for door, has applied for state patent. It has such advantages convenient, fastness and high automatization. This machine is the ideal choice to transfer manual task to automatic production.
This machine can use with other spraying equipment(spraying booth, spraying room, water spraying booth etc). It can lead you a high quality production with low cost. It can substitute 6 specialized worker at least.
Characteristic:
-Equipped with chained transportation, no transport belt, no cleaning. It can save extra expenses of paint thinner and cleaner and protect the painting film effectively.
-Special reversal system can easily reach double spraying and raise productivity. Daily output: 300PCS.
-PLC touch screen control system, easy to understand, can realize the working state at any moment.
- Servo motor drive exactness, with high-speed reciprocate, to get even spraying
- To- and- fro system can adjust the speed automatically to adapt different workpieces.
- Sensor can control gun switch and journey according to the dimension of workpiece, it can save 30% paint than people.
- Closed painting room design, can build a clean environment, and improve the spraying quality of workpiece.
- The strong exhaust system, can make the paint fog out of the spraying room through filter, which reach the environment requirement.
|
max. spraying size |
2500X1200X80mm |
|
Max. weight of door |
70KG |
|
Feeding speed |
0-8m/min |
|
Gun reciprocate speed |
0-100m/min |
|
Working pressure |
0.5-0.8Mpa |
|
Total power |
6.4KW |
|
Figure dimension |
5660× 4500× 2580mm |
|
weight |
1600kg |
Qingdao GODN Mechanical Technology Co., Ltd. is one of the outstanding woodworking machinery manufacturers in China, supplying first-class products and services for customers. Our leading products include spraying finishing machines & plane finishing machines, surface coating machines and basic woodworking machinery.
GODN Company has attained the international quality system certification of ISO9001-2000, certification of China Quality Supervision for Woodworking Machine and CE certification by IG from Italy, and been honored as "21 Century China Woodworking Machine Famous Brand ".
GODN Company is located in a beautiful shore city - Qingdao, with a united, progressive and talented team, advanced management idea, as well as strong development and manufacture capabilities. Our company is growing rapidly due to excellent quality products and continuous innovation. Our products are welcomed by domestic and overseas customers. At present, our machines are running everywhere in the world such as America, Europe, Oceania, Africa and Asia.
GODN Company would like to cooperate with dealers and manufacturers from all over the world to build up long-term reciprocal relationships. Facing to the new opportunities and challenges in the future, GODN persons will insist on the strategy of "Quality, Brand, Innovation" and try our best to provide perfect products and excellent services for you.
