Spraying Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
Fire tools powder coating line: pre-treatment by immersion (pre degreasing, degreasing, silane, water washing), drying, powder spraying, powder curing and process, automatic coating line of polyester powder.
Thanks to advances in powder coating and painting techniques, in recent years it has been the rapid development and popularization. Powder coatings are environmentally friendly solvent-free coating, powder coating process is the green coating process. Therefore, in terms of coating metal parts become the mainstream of development.
Pre-treatment system: it is divided into dipping system and spraying system ,but they also can combination to use. Spraying system is suitable for continuous automated production for a single shape and production of large workpiece. Dipping system is suitable for intermittent production for complex structures, small batch and the inner cavity needed to deal with the workpiece.

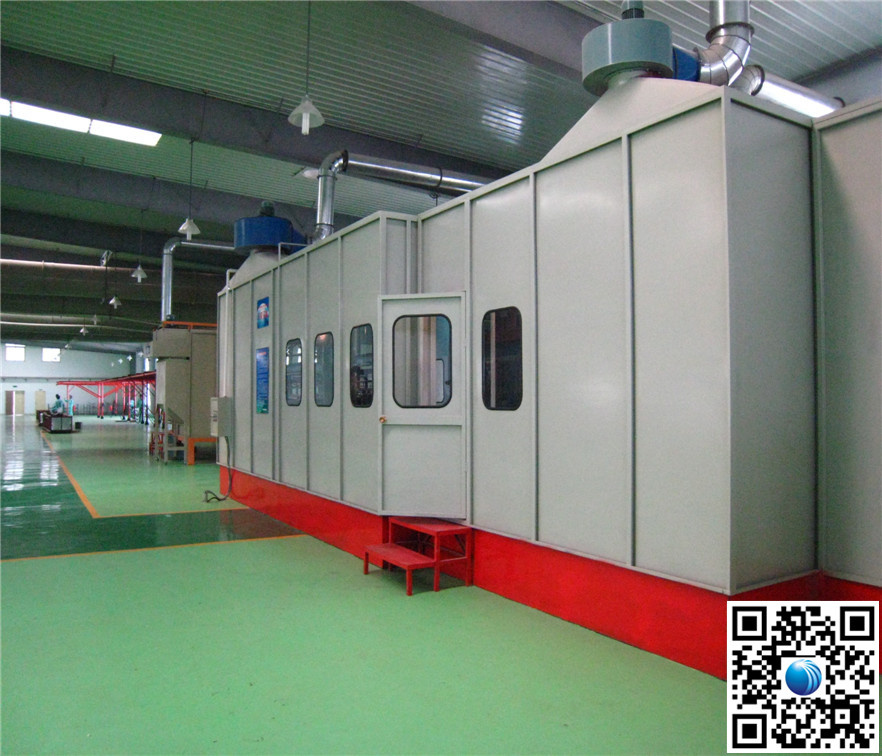

Spraying booth and recycling system: spraying booth is a powder coating room. It's materials, form and size is directly related to the quality of spraying the workpiece. Spraying booth is generally made of automatic and manual system, and recycling system composed of a system.
Recycling equipment is the role of powder overspray powder will remain in the spraying booth, with sufficient air to ensure that the powder and air mixture in concentrations below the lower limit of the concentration of dust explosion, to ensure the safety of spraying booth; then the excess powder separated from the air to be recycled. Therefore, the recovery design is reasonable, the decision of the powder recycling rates.
Moisture drying system and powder curing system: they are a key process for formation of coatings. So, drying methods and equipment choose whether reasonable, and energy consumption etc, will directly affect cost.
Energy type: it includes electrical heating, fuel heating, gas heating coal heating and wood heating. We can according to the customer needs, make a reasonable choice.
Overhead conveyor device: overhead conveyor device is a kind of conveying equipment for workpiece.
Electrical control device: electrical control device is consisted of pre-treatment control cabinet, water drying and powder curing cabinet, spraying booth control cabinet, conveyor control cabinet, etc., to carry out centralized control and separate control. Each system is independent with automatic detection, automatic overload protection, explosion proof, sound and light alarm function.Advisory form
| Workpiece name | Shape(graphical) | Sizes(mm) | Material | Weight(kg) | Use |
| Working system | The number of work | Work times(h) | Production(piece) |
| Coatings types | Epoxy | Polyester resin | Polyurethane | Acrylic acid |
| Fluorocarbon | Metal powder | Teflon (polytetrafluoroethylene) |
| Spraying way | Manual | Automatic | Single spray | Sided spray |
| Plant area | Plane sizes(m) | Height(m) | Plane layout fig |
| Voltage | Three-phase AC (V) | Single-phase AC (V) | Frequency(Hz) |
| Heating fuel used | Coal | Fuel oil | LPG | Natural gas | Steam | Electricity | Biomass particles |
| Pre-treatment way | Spray drench | Dipping | Ultrasonic cleaning | Shot blast cleaning |
| Wastewater treatment | To configure | Don't need |
| Climatic conditions | Summer temperatures/ Humidity | Winter temperatures/ Humidity |
| Prod Model: |
CTTZ-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Spraying Machine |
| Certification: |
SGS |
| Method Type: |
Automatic |
| Type: |
Powder Coating Line |
Our company is located in the Yangtze River Delta economic circle of China emerging port industrial city -- Zhangjiagang. Zhangjiagang is a national civilized city, International Garden City, the most suitable for human living; Full of vitality, polite citizens. Our city has excellent the Yangtze River waterway and international inland port, we use facts to prove, by the product quality to convince the user, so that our products help your career!
Almost business of our company is in the domestic market before 2009. Built in April, 2010, our associated company was focusing on oversea markets. Our products passed the CE certification in May, 2011 and the ISO 9001 quality management system certification in June at the same year. Our products made by the self-manufacturing technology, with reasonable structure, adaptability, security, economical and practical, it is work on work-piece surface preparation and coating industry and related industries.
Complete set of painting equipment for the need for surface coating to protect metal, plastic or wood parts of a continuous or intermittent production of coating production equipment. According to the requirements of the workpiece, workpiece measures and plant area, made of cabinet-style spray booth, by the conveyor, workpiece will be sent to the various system to carry out the treatment process automatic or manual operation. Main processes are due to be completed in the workroom, and, accordingly, providing technical treatment. So, it is great to protect the environment and the staff's health.
The complete sets of equipment has pre-treatment system, drying system, powder or liquid spraying system curing system, conveying system electrical control system composition. Customer can according to the workpiece, the number of processing, workshop conditions, output efficiency, reasonable choice for the configuration, and appropriate for future development needs.
Waste gas purification is the company's patented technology, by using the method of optical and plasma binding, can effectively remove VOC, odor, smoke, dust, and can also be used for disinfection and sterilization; It is a new cleaning process, does not produce waste water, waste residue, will not cause secondary pollution.
If the UV coatings have new breakthrough, using UV coating technology of our company, instead of powder coating and painting, will greatly reduce the production cost.
