Product Specifications
| Prod Model: |
SE-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accracy Class: |
1.5, 2.5 |
| Relative Humidity: |
25% and 80% |
| Endurance: |
AC 45-65Hz 2kv 1min |
| Transport Temperature: |
-30°c~55°c |
| Ambient Temperature: |
23°c±10°c |
| External Magnetic Field: |
0.4ka/M |
| Intalation Position: |
Vertical ±°c |
| The Standard: |
IEC60051-2 |
| Kind: |
Rotating Coil |
| Application: |
Electric Power |
| Display: |
Indicator |
| Installation: |
Direct Connected |
| Theory: |
Electric Apparatus |
| Power Source: |
AC Meter |
Product Description
Application

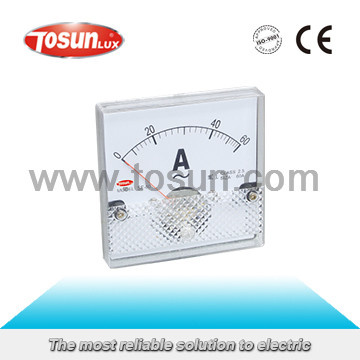

Panel meter is one kind of electric measure indicator with the direct affection of imitate display. It is suitable for AC & DC output and input distribution circuit, power plant console cabinet, power operating board and different apparatus. It is used to measure DC current, voltage& AC current, voltage, frequency and phase power.
Technical Parameters:
Accuracy: class 1.5, 2.5
Relative humidity: 25% and 80%
Endurance: AC 45-65Hz 2KV 1min
Transport temperature: -30ºC~55ºC
Ambient temperature: 23ºC±10ºC
External magnetic field: 0.4KA/m
Installation position: vertical ±10ºC
The standard is a according to IEC60051-2
Specification:
| Name | Specification | Model of meter | Accuracy |
| AC Ammeter | 0.1A 0.5A 1A 3A 5A 10A 15A 20A 25A 30A 40A 50A | AC Direct Connection | SE-80/SE-60
SE-670/62T2
SE-52/SE-65 |
Class 2.5 |
| 10A 15A 20A 30A 40A 50A 75A 100A 150A 200A 250A 300A 400A 500A 600A, 750A 800A 1000A 1200A 1500A 2000A 2500A 3000A | With Ext. CT/5A |
| DC Ammeter | 50µA 100µA 500µA 1mA 3mA 5mA 20mA 500mA 1A 3A 5A 10A 15A 20A 25A 30A | DC Direction Connection |
| 10A 15A 20A 30A 50A 100A 150A 200A 250A 300A 400A 500A 600A 750A 800A, 1000A 1200A 1500A 2000A 2500A 3000A | With Ext. Shunt 50mV or 70mV |
| AC Voltmeter | 30V 50V 60V 100V 150V 250V 300V 500V 600V | AC Direction Connection |
| DC Voltmeter | 100V 150V 200V 250V 300V 450V 500V 600V | DC Direction Connection |
| Frequency meter | Voltage: 110V 220V 380V 440V | ...... | Class 1.5 |
| Frequency: 45-55Hz, 45-65Hz, 55-65Hz, 47-53Hz |
