Product Specifications
| Prod Model: |
SSR-3-25AA SSR-3-100AA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Approval: |
CE Mc |
Product Description

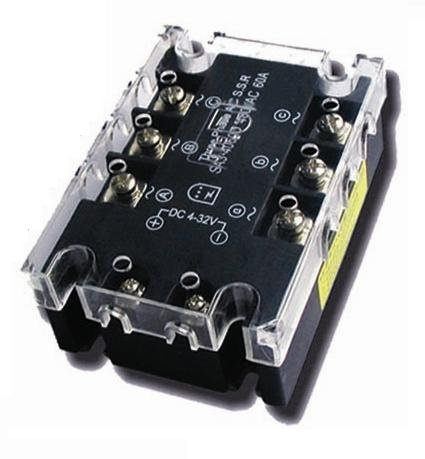

1. Features of IBEST Solid State Relay (three phase):
- Load current range: 15A, 25A, 40A, 50A, 80A, 100A.
- Load voltage range: AC 24~660V AC; Control current: 6mA~25mA.
- Control voltage: AC 90~250V or DC 3~32V
- Input constant current control, AC Zero point On and OFF function
- Adop technic of glass passivation triac square piece(>50A), good in dispersing heat.
- Optic isolated (≥ 2000V AC 1min ), dual triac strong output or single triac reversal parallel connection strong output.
- Input or output LED indication.
- Widely used in various automatic fields like chemical fibre machinery, temperature controller, electric cooker, rubber machinery, fountain control, numerical control machinery etc.
- Reliable quality to replace famous brands, such as: Omron, Crydom...etc.
|
2. Ordering Code: |
|
Model and Type |
Load Current |
Load Voltage |
Control Voltage |
Appearance |
|
Buy |
|
SSR-3-15AA |
AC 15A |
AC 24~660V |
AC 90~250V |
Normal |
|
|
|
SSR-3-25AA |
AC 25A |
AC 24~660V |
AC 90~250V |
Normal |
|
|
|
SSR-3-40AA |
AC 40A |
AC 24~660V |
AC 90~250V |
Normal |
|
|
|
SSR-3-50AA |
AC 50A |
AC 24~660V |
AC 90~250V |
Normal |
|
|
|
SSR-3-80AA |
AC 80A |
AC 24~660V |
AC 90~250V |
Normal |
|
|
|
SSR-3-100AA |
AC 100A |
AC 24~660V |
AC 90~250V |
Normal |
|
|
|
|
3. Technical Specifications: |
|
Property project |
Specific parameter |
|
Max. Load Current |
AC 15A, 25A, 40A, 50A, 80A, 100A |
|
Load Voltage |
AC 24~660V |
|
Isolated Voltage |
> 2000V AC 1 min. |
|
Insulation Voltae |
> 2000V AC 1 min. |
|
Control Voltage |
AC 90~250V |
|
Control Current |
6mA~25mA |
|
Turn-On Voltage |
< 1.3V |
|
Off-set leakage |
300v/us |
|
On - Off Time |
100ms |
|
Frequency Range |
47/63 Hz |
|
Status Indicator |
Red LED |
|
Ambient Temperature |
-40~80 C |
|
Net Weight |
750g |
|
