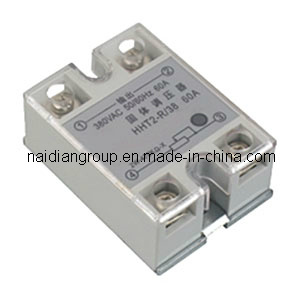

SSR Solid State Relay (SSR-VA)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
NDG1-80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
A solid state relay(SSR), in comparison to a mechanical relay, is actually not a relay at all. There are no moving components inside to switch power to and from the load. This is managed by the SCR, triac, alternistor, or other semiconductor device in the output of the SSR. And although the primary function of switching power to and from an electrical load is the same, several significant advantages are gained by using a solid state relay(SSR) instead of EMR's.
Specification
|
Name |
Solid State Relay |
|
Item No |
NDG1-80A(SSR-VA) |
|
Mould No |
NDG1-2/22
NDG1-R/38
NDG1-U/22 |
|
Load Voltage |
0-250VAC 0-380VAC |
|
Load Current: |
10,25,40,50, 60,75,80A |
|
Isolation belt in and out |
2500V AC 1min |
|
Isolation to case |
2500V AC 1min |
|
Control voltage |
3-32V DC |
|
Control current |
3-25mA |
|
Trigger method |
Zero cross trigger |
|
Voltage Drop in ON |
< 1.5VAC |
|
On-off Time |
≤10mS |
|
Leakage Current in OFF |
≤2mA |
|
Dielectric Strength |
≥2500VAC |
|
Ambient Temp |
-30~80 deg |
|
Status indicator |
LED |
|
Dimensions |
62.0X45.0X23.5 |
|
Mounting Type |
Screw Fixing |
Established in1989, With a 20-plus year history of leadership, Naidian Group Co., Ltd located in China Electric Capital - Liushi where is regarded as low voltage electrical equipment production base of China. We design, manufacture and market products for customers in industries ranging. Naidian is an professional manufacturer & exporter of relays.
We mainly produce all types of relays, such as Power Relay, PCB Relay, General-purpose Relay, Solid State Relay, Time Relay, Automotive Relay, Counter, Thermal Relay, Electromagnetic Relay, Earth Leakage Relay, liquid Level Relay, motor control motor protection series, Relay Socket.
ISO9001 quality management have been strictly operating in our corporation, Meanwhile the products have been approved by UL, cUL, TUV, CE, CCC Certificate. The company is advanced in technical strength and has adopted auto, semi-auto production line to manufacture product. We are also strong in the technical reform, new items development and some products have passed new design patent.
Looking into the future, the group will face more business opportunity, and more challenge. Naidian will comply with request and development of epoch, continue to further and reform innovation, expand capital strength, implement brand strategy, create the new increasing point, and look forward to cooperate with customers at home and abroad.
Excellence, share with the world. ------- Naidian Group Co., Ltd.
