Stable Performance Drying Machine (GZ2200X12000)
| Price: |
US $ 200000.00/Set |
| Trade Terms: |
FOB |
| Min Order: |
1Set |
| Pay Type: |
L/C,T/T |
Stable Performance Drying Machine (GZ2200X12000)
Features:
1. ISO9001: 2000
2. Excellent performance
3. High quality and long lifetime
4. Competitive price

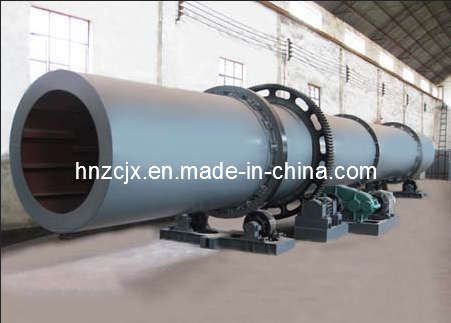

Rotary dryer is the materials drying device. The material in the rotating cylinder is dried in the process of spiral leaf and discontinuous spiral feed tube between the inner and outer turn-back. Slieve structure can multiplied reduce the length of the dryer, as the cooling surface reduces, so that the loss of heat is reduced, double the number of heat exchange surface greatly enhance thermal efficiency. For the nontouch tobacco materials, multi-tube rotary dryer provided the inside smoke pipe and circular pipe respectively in both inside and outside the cylinder, the smoke flue pipe use of radial to communicate, the same energy efficient, it is easy to see, for the heat material and cool media, the machine used as sleeve rotary cooler machine.
Function:
This series of dryer machine is widely sed in the cement, mining, building materials, chemicals, food, fertilizer production and other industries of material drying, in order to control the temperature of the dryer, we set the heating coil in the out and in material device. It can show the temperature changes of the dryer's material access through the thermometer. In order to better control the body temperature(usually 350-380 degrees) provides a basis.
|
Type(mm) |
Speed (r/min) |
Dip (%) |
Intake air temperature(degree) |
Capacity (t/h) |
Weight (t) |
|
GZ800× 8000 |
3.8 |
5 |
≤ 700 |
0.8-2.0 |
3.5 |
|
GZ1000× 10000 |
3.8 |
5 |
≤ 700 |
1.0-3.5 |
5.6 |
|
GZ1200× 10000 |
3 |
5 |
≤ 700 |
1.8-5 |
14.04 |
|
GZ1500× 12000 |
2.08 |
5 |
≤ 800 |
3.3-7.5 |
17.76 |
|
GZ1800× 14000 |
2.08 |
5 |
≤ 800 |
5-9 |
29 |
|
GZ2200× 12000 |
4.7 |
5 |
≤ 700 |
6-12 |
33 |
|
GZ2200× 18000 |
4 |
5 |
≤ 800 |
10-15 |
53.3 |
| Prod Model: |
GZ2200X12000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rotary Diameter: |
2200mm |
| Rotary Length: |
12000mm |
| Rotary Speed: |
4.7r/Min |
| Dip: |
5% |
| Inlet Air Temperature: |
700 |
| Capacity: |
6-12t/H |
| Weight: |
33t |
| Burning Material: |
Coal or Gas |
| Installation: |
Technical Guidance |
| Color: |
Red or Yellow |
| Structure: |
Rotary Type Drier |
| Movement Way: |
Fixed |
| Heating Mode: |
Convective |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
