Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 100/Piece |
Pay Type: | T/T,D/P,Paypal,Western Union |

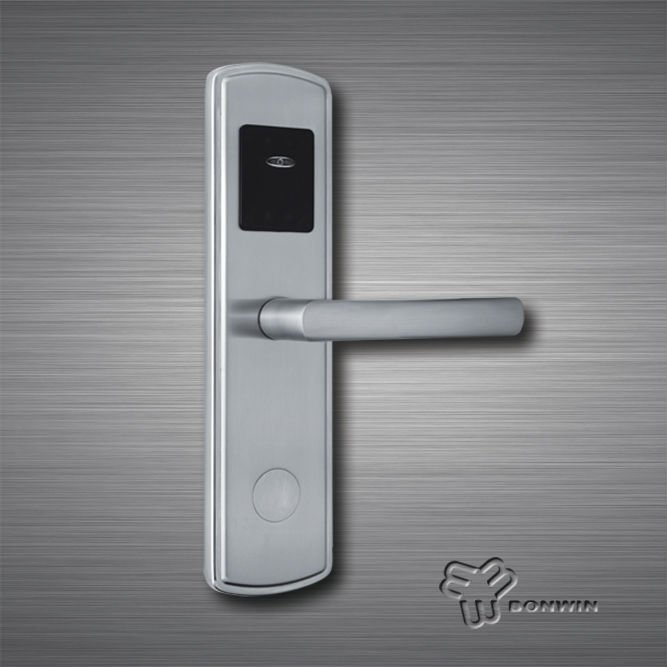

Stainless steel type PROXIMITY CARD LOCK WITH UNMLOCK RECORDS
1. ANSI mortise(five latches)
2. suitable for door thickness 38-55mm
3. suitable for door width more than 120mm
4. support : keys/card to open the door
5. support download recently 200 records
6. four piece AA battery for the power (lower battery will alarm)
7. CE approved goods
8. support double-lock the door inside of room
Packing:
6PCS lock inside of the carton
Carton size: 47*48*35cm
Carton G. W: 20-23kgs
Software
1) many types cards--------total 16 type cards ( emergency card, master cards, flooring card, supervisor cards, guest cards, backup cards, time card, clear card,) for different functions
2) many types administration authority ------the software can be used by many type users,
e.g.: Boss can use his user name and password to log in the software and have the rights to make all type cards and setup the user rights. Front desk persons can use his user name and passwords to login the software, but he only can make the guest cards (because boss has setup his user rights only for check in and check out)
3) Support download the unlock records from handset machine, which the recently 200pcs enter records from the locks
4) Support make 3pcs query card (data card)---to download the unlocking records from door locks.
5) There is a data file inside of the software ---stock the operation info (room info, card info and so on ) of this hotel.
6) support any languages that buyer need
7) support Windows9x, Win2000, WinXP, Win7 operating system;
Main functions of the card system
Management Classification--totally 15 different types cards: emergency card, master card, multilayer card, floor card, guest card, staff card, backup card, temporary card, report lost card, terminating card, authorized card, cipher card, room number card, clock card, clear card;
Time Limited Function--As long as the guest is expected to check out, the guest card will be inoperative automatically.
The Record Function--the lock records the latest 200 times unlocking information.
The Function of Avoiding Disturbing--after the door is locked from the inside, any card except emergency card cannot open the lock.
The Function of Alarm--once the batteries voltage is not enough, the door isnt totally closed and other abnormal situations, the lock will keep to remind the user by buzzer.
The Access Function--when necessary, we can set four kinds of locks which are room-access, floor-access, building-access, and general access.
Bonwin design and produce card locks more than 11 years
Some of Bonwin lock users
Technical item | Parameter Description |
shell materials | Stainless steel/pure copper/ zinc alloy |
Weigh | about 3.7 kegs |
Side pressure strength | 1000kgs |
Life time | over 10 years |
Inductive Distance | over 20mm |
Effective unlocking duration | within 6 seconds |
power supply | DC6V, 4 * #5 alkaline batteries |
quiescent current | 20μ A |
working temperature | -40~85 |
Relative humidity | less than 95%, no corrosive gas and dust |
Service durability | 100, 000 times |
data saving length | over 100 years |
Applicable door thickness | 38~55 mm |
Prod Model: | BW803SC-F |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Mateiral: | Stainless Steel |
Mortise Type: | ANSI |
Card Type: | Mifare One |
Records: | Recent 200PCS Unlock Records |
Door Thickness: | 38~55mm |
Low Battery Will Alarm: | Yes |
Support Double-Lock: | Yes |
Support Keys: | Yes |
Software Is Free: | Yes |
Cetification: | CE, FCC, ISO, SGS, TUV, Soncap |
Usage: | Office/Apartment |
Type: | Mifare Card |
Material: | Stainless Steel |
