Product Specifications
Prod Model: |
DZ |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
Material: |
Carbon Steel or Stainless Steel |
Deblinding System: |
Bouncing Ball, Ultrasonic, etc |
Screen Mesh: |
Customized |
Screen Layer: |
1-5 |
Type: |
Circular |
Object: |
Chemicals |
Shaft Number: |
Single |
Condition: |
New |
Works: |
Unbalanced Motor |
Product Description
Typical Application of Vibratory Separator
1. Chemical industry: resin, pigment, medicine, grease, extinction agent, rubber and plastic.
2. Abrasive, glass and ceramic professions: silicone sand, aluminum oxide, grinding abrasive, glass dust and fire-proof material.
3. Foodstuff: sugar, salt, alkali, glutamate, starch, powdered milk, soybean milk, yeast and fruit juice.
4. Papermaking profession: coated slurry, black and white liquor, padding fluid, waste liquid and waste water recycling.
5. Iron-smelting and mining industry: quartz sand, ore, titanium oxide and zinc oxide.
6. Mechanical profession: casting sand, powder metallurgy, electromagnetism material, aluminum powder, metal powder and alloy.
7. Environmental protection: trash, human and animal fecaluria, industrial waste water, food waste water and waste water processing.
8. Others: carbon black, activated carbon and pearl.
Parameters of Standard Vibratory Separator
Model | DZ-600 | DZ-800 | DZ-1000 | DZ-1200 | DZ-1500 | DZ-1800 | DZ-2000 |
Nominal diameter(mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1500 | Φ1800 | Φ2000 |
Effective screen diameter (mm) | Φ540 | Φ720 | Φ916 | Φ1120 | Φ1420 | Φ1720 | Φ1920 |
Effective screen area(m2) | 0.23 | 0.41 | 0.66 | 0.99 | 1.58 | 2.32 | 2.90 |
Screen mesh | 2--500 mesh |
Material size(mm) | <Φ10 | <Φ15 | <Φ20 | <Φ30 |
Vibrational frequency | 1500rpm |
Number of deck | 1-3 |
Power (KW) | Vibrating motor | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 |

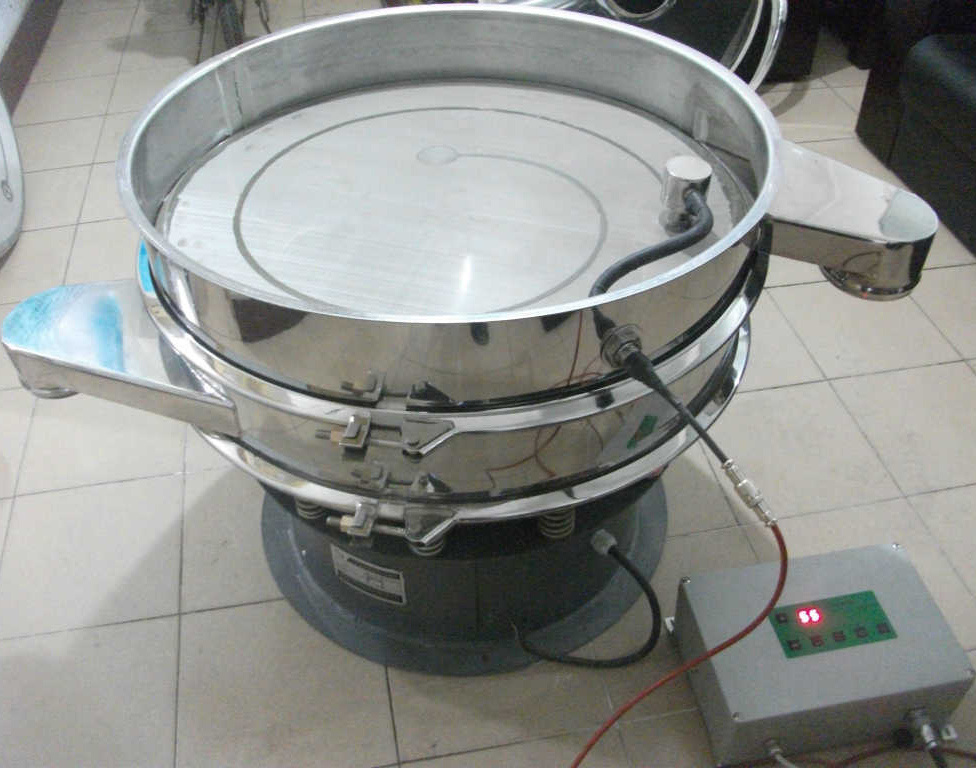

Parameters of Ultrasonic Vibratory Separator
Model | DZ-600 | DZ-800 | DZ-1000 | DZ-1200 | DZ-1500 |
Nominal diameter(mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | Φ1500 |
Effective screen area(m2) | 0.23 | 0.41 | 0.66 | 0.99 | 1.58 |
Screen mesh | 100--635mesh |
Vibrational frequency | 1500rpm |
Power (KW) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 |
Item | Parameters | Item | Parameters |
Frequency | 35KHZ | Work mode | Continuous |
Power supply | 220-240V 50/60HZ | Temperature | -10~45ºC |
Parameters of Tumbler Vibratory Separator
Model | Sieving area (m²) | Inclination(º) | Power (kw) | Layer |
|
|
|
| Bouncing ball cleaning | Brush cleaning | Ultrasonic cleaning | Sieve attachment |
YBS-600 | 0.21 | 0-10 | 0.25 | 5 | 5 | 5 | 2 |
YBS-1000 | 0.66 | 0-10 | 1.5 | 5 | 5 | 5 | 2 |
YBS-1200 | 0.98 | 0-10 | 2.2 | 5 | 5 | 5 | 1 |
YBS-1600 | 1.81 | 0-10 | 4 | 5 | 5 | 5 | 1 |
YBS-2000 | 2.80 | 0-10 | 4 | 5 | 5 | 5 | 1 |
YBS-2400 | 4.15 | 0-10 | 5.5 | 5 | 5 | 5 | 1 |
YBS-2600 | 5.31 | 0-10 | 5.5 | 5 | 5 | 5 | 1 |
Parameters of High Capacity Vibratory Separator
Model | Power (kw) | Screen diameter (mm ) | Effective area(m2 ) | Dimension (mm) |
ZPS-600 | 0.12 | 520 | 0.2124 | 740×600×560 |
ZPS-800 | 0.18 | 720 | 0.4072 | 1010×800×600 |
ZPS-1000 | 0.18 | 890 | 0.6221 | 1200×970×640 |
ZPS-1200 | 0.25 | 1090 | 0.9331 | 1430×1170×700 |
ZPS-1500 | 0.55 | 1390 | 1.5175 | 1780×1470×760 |
Parameters of High Frequency Vibratory Separator
Model | Power(Kw) | Screen diameter(mm) | Exciting force(KN) | Weight(kg) |
YZG600 | 0.25 | 560 | 3 | 65 |
YZG800 | 0.37 | 760 | 5 | 80 |
YZG1000 | 0.75 | 930 | 10 | 130 |
YZG1200 | 1.1 | 1130 | 15 | 180 |
Xinxiang DaZhen Sift Machine Co., Ltd, located in Xinxiang industrial zone, is an SGS audited enterprises engaged in R&D, production and sales of vibrating screen equipments, grain cleaning and grading machine, bucket elevator, belt and auger conveyors, vibration motor etc.,
Our company owns an experienced technical team, with more than 100 workers and 30 engineers. We have two production bases, with all kinds of mechanical processing, Sheet metal forming, and welding equipment.
Our main products include:
Vibrating screen series: Ultrasonic vibrating screen, rotary vibration sieve, flange type rotary vibration sieve, gate vibration sieve, sieve for ceramic industry, test sieve, linear vibrating screen, mining vibration screen, high-efficient heavy-duty sieve, round vibration sieve, sieve, sieve dehydration, strokes such as linear sieve, hot griddle;
Lift series: Vertical vibration of elevator, bucket elevator;
Conveyor series: Screw conveyor, belt conveyor, belt conveyor, vibrating conveyor, high temperature material conveyor, long and high temperature conveyor;
Feeder series: Reciprocating vibrating feeder, vibrating feeder motor, electromagnetic vibrating feeder, vibration motor, vibration occlusion device, etc.
Products are widely used in chemical, food, medicine, environmental protection, ceramic, foundry, construction, mining, abrasive, etc. Products are exported to Germany, Russia, South Korea, Japan, Korea, Vietnam, Singapore, Indonesia and other European and American countries and East Asia, Southeast Asia all over the world.
With 20 years experiences, our company insist on "Best Quality, Excellent Service, Advance Techniques, Continuous Innovation", we have obtained trust and good reputation from our customers. We also establish an impeccable service system to solve problems for customers. We believe you will also appreciate us for our quality products and best service after a period cooperation with us.
