Stainless steel wire mesh
Materials in SUS302, 304, 316, 304L, 316L.
Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, Dutch weave.
General Use of: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc
Mesh size: From 3mesh to 600mesh

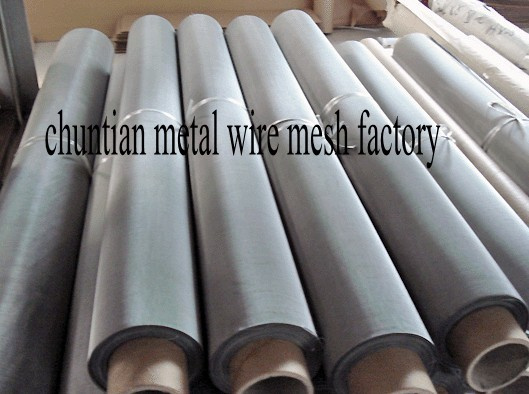

Usually in 30m ( up to 200) long and in width of 1m 1.2m 1.5m 2.0m etc. Or cut to strip or punched into disc as clients requirement
Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth |
Meshes Per Linear Inch | Diameter of Wire | Width of Opening | Open Area, % |
Inches | mm | Inches | mm |
10 x 10 | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
10 x 10 | 0.035 | 0.9 | 0.065 | 1.65 | 42.3 |
10 x 10 | 0.032 | 0.8 | 0.068 | 1.27 | 46.2 |
10 x 10 | 0.025 | 0.63 | 0.075 | 1.90 | 56.3 |
12 x 12 | 0.041 | 1.0 | 0.042 | 1.06 | 25.4 |
12 x 12 | 0.035 | 0.9 | 0.048 | 1.22 | 33.2 |
12 x 12 | 0.032 | 0.8 | 0.051 | 1.29 | 37.5 |
12 x 12 | 0.028 | 0.7 | 0.055 | 1.39 | 43.6 |
12 x 12 | 0.023 | 0.58 | 0.060 | 1.52 | 51.8 |
14 x 14 | 0.032 | 0.8 | 0.039 | 1.52 | 29.8 |
14 x 14 | 0.025 | 0.63 | 0.046 | 0.99 | 41.5 |
14 x 14 | 0.023 | 0.58 | 0.048 | 1.22 | 45.2 |
14 x 14 | 0.020 | 0.5 | 0.051 | 1.30 | 51.0 |
16 x 16 | 0.028 | 0.7 | 0.035 | 0.89 | 30.5 |
16 x 16 | 0.023 | 0.58 | 0.040 | 1.01 | 39.9 |
16 x 16 | 0.018 | 0.45 | 0.045 | 1.14 | 50.7 |
18 x 18 | 0.020 | 0.5 | 0.036 | 0.91 | 41.1 |
18 x 18 | 0.018 | 0.45 | 0.038 | 0.96 | 48.3 |
20 x 20 | 0.023 | 0.58 | 0.027 | 0.68 | 29.2 |
20 x 20 | 0.020 | 0.5 | 0.030 | 0.76 | 36.0 |
20 x 20 | 0.018 | 0.45 | 0.032 | 0.81 | 41.0 |
20 x 20 | 0.016 | 0.40 | 0.034 | 0.86 | 46.2 |
24 x 24 | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
28 x 28 | 0.010 | 0.25 | 0.026 | 0.66 | 51.8 |
30 x 30 | 0.013 | 0.33 | 0.020 | 0.50 | 37.1 |
30 x 30 | 0.012 | 0.30 | 0.021 | 0.53 | 40.8 |
35 x 35 | 0.012 | 0.30 | 0.017' | 0.43 | 33.8 |
35 x 35 | 0.010 | 0.25 | 0.019 | 0.48 | 42.4 |
40 x 40 | 0.014 | 0.35 | 0.011 | 0.28 | 19.3 |
40 x 40 | 0.012 | 0.30 | 0.013 | 0.33 | 27.4 |
40 x 40 | 0.010 | 0.25 | 0.015 | 0.38 | 36.0 |
40 x 40 | 0.0095 | 0.24 | 0.016 | 0.40 | 38.4 |
50 x 50 | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
60 x 60 | 0.0075 | 0.19 | 0.009 | 0.22 | 30.5 |
70 x 70 | 0.0065 | 0.17 | 0.008 | 0.20 | 29.8 |
80 x 80 | 0.0070 | 0.18 | 0.006 | 0.15 | 19.4 |
80 x 80 | 0.0055 | 0.14 | 0.007 | 0.17 | 31.4 |
90 x 90 | 0.0055 | 0.14 | 0.006 | 0.15 | 25.4 |
100 x 100 | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
120 x 120 | 0.0040 | 0.10 | 0.0043 | 0.11 | 26.6 |
120 x 120 | 0.0037 | 0.09 | 0.005 | 0.12 | 30.7 |
150 x 150 | 0.0026 | 0.066 | 0.0041 | 0.10 | 37.4 |
165 x 165 | 0.0019 | 0.048 | 0.0041 | 0.10 | 44.0 |
180 x 180 | 0.0023 | 0.058 | 0.0032 | 0.08 | 33.5 |
180 x 180 | 0.0020 | 0.050 | 0.0035 | 0.09 | 41.1 |
200 x 200 | 0.0020 | 0.050 | 0.003 | 0.076 | 36.0 |
200 x 200 | 0.0016 | 0.040 | 0.0035 | 0.089 | 46.0 |
220 x 220 | 0.0019 | 0.048 | 0.0026 | 0.066 | 33.0 |
230 x 230 | 0.0014 | 0.035 | 0.0028 | 0.071 | 46.0 |
250 x 250 | 0.0016 | 0.040 | 0.0024 | 0.061 | 36.0 |
270 x 270 | 0.0014 | 0.040 | 0.0022 | 0.055 | 38.0 |
300 x 300 | 0.0012 | 0.030 | 0.0021 | 0.053 | 40.1 |
325 x 325 | 0.0014 | 0.040 | 0.0017 | 0.043 | 30.0 |
325 x 325 | 0.0011 | 0.028 | 0.0020 | 0.050 | 42.0 |
400 x 400 | 0.0010 | 0.025 | 0.0015 | 0.038 | 36.0 |
500 x 500 | 0.0010 | 0.025 | 0.0011 | 0.028 | 25.0 |
635 x 635 | 0.0009 | 0.022 | 0.0006 | 0.015 | 14.5 |
Duth weaving stainless steel wire mesh reference specification:
mesh | wire dia (MM) | Material (AISI) |
12 X 64 | 0.58/0.40 | 304 316 |
24 X 110 | 0.36/0.25 | 30.316 |
14 X88 | 0.50/0.33 | 30.316 |
30 X150 | 0.18/0.14 | 30.316 |
40 X200 | 0.14/0.11 | 30.316 |
50 X250 | 0.10/0.071 | 30.316 |
80 X700 | 0.06/0.05 | 30.316 |
165 X800 | 0.071/0.040 | 30.316 |
165 X1400 | 0.05/0.032 | 30.316 |
200 X1800 | 0.05/0.03 | 30.316 |
325 X2300 | 0.030/0.025 | 316L |
400 X2800 | 0.030/0.02 | 316L |
Our factory is situated in Anping County which has long been known as Homeland of Wire Mesh in China, Started since 1989, this factory has rich experience in iron wire and wire mesh.
Our hot products and feature products: Galvanized wire, oval galvanized wire and automatic binding wire.
Base on our more than 10 years exporter experienced, we also can supply competitive price for other products:
Wire system: Black annealed wire, galvanized wire, including coil wire, spool wire, and U type tie wire, cutting wire, wire sack ties and so on.
Wire mesh system: Welded wire mesh, hexagonal wire mesh, black woven cloth, stainless steel wire mesh, brass wire mesh and so on.
We would like to win your long term businss by our high quality products and competitive price.
