Anping Qinghe Metal Mesh Co., Ltd. >> Stainless Steel Wire Mesh Cloth

Stainless Steel Wire Mesh Cloth

Name: Stainless Steel Wire Mesh Cloth
Brand: china-manufacturer-directory.com
SKU: 674941982
Availability: InStock
Rating: 4.8 (124 reviews)

Supplier:	Anping Qinghe Metal Mesh Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

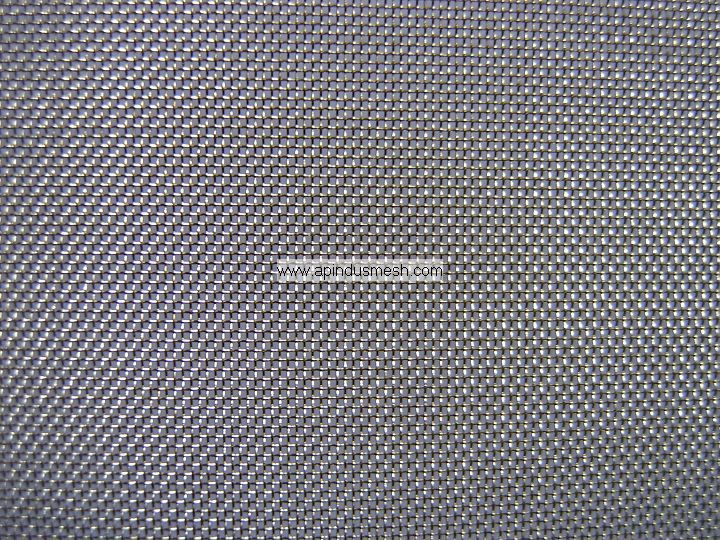

Plain or twill woven wire cloth can be processed into filter discs of various sizes. Specially cut to size panels in all shapes including: Squares, rectangles and circles in all materials and mesh size.

Specialty and custom materials, weaves and cloth grades can be worked out with the wire mesh and cost supplier.

Property: Acid resisting, alkali resisting, heat resisting, durable

Applications: Wire Cloth Products are used in almost every industry. Accordingly, we produce wire cloth in countless combinations of materials, weaves, openings and wire diameters. Woven wire cloth applications usually involve Filtration, Separation, Screening, Sieving, Sifting, Sorting, Sizing, Extraction, Conveying, Dewatering etc.

Packing: Moist-proof paper/wooden crate/pallet

Mesh/Inch	Wire Diameter		Aperture		Open Area (%)	Weight(KG) /100 SQF
Mesh/Inch	Inch	MM	Inch	MM	Open Area (%)	Weight(KG) /100 SQF
1x1	. 080	2.03	. 920	23.37	84.6	18.68
2X2	. 063	1.60	. 437	11.10	76.4	23.27
3X3	. 054	1.37	. 279	7.09	70.1	25.77
4X4	. 063	1.60	. 187	4.75	56.0	47.64
4X4	. 047	1.19	. 203	5.16	65.9	26.18
5X5	. 041	1.04	. 159	4.04	63.2	24.95
6X6	. 035	. 89	. 132	3.35	62.7	21.86
8X8	. 028	. 71	. 097	2.46	60.2	18.68
10X10	. 025	. 64	. 075	1.91	56.3	18.73
10X10	. 020	. 51	. 080	2.03	64.0	11.86
12X12	. 023	. 584	. 060	1.52	51.8	19.18
12X12	. 020	. 508	. 063	1.60	57.2	14.36
14X14	. 023	. 584	. 048	1.22	45.2	22.64
14X14	. 020	. 508	. 051	1.30	51.0	16.91
16X16	. 018	. 457	. 0445	1.13	50.7	15.68
18X18	. 017	. 432	. 0386	. 98	48.3	15.82
20X20	. 020	. 508	. 0300	. 76	36.0	25.09
20X20	. 016	. 406	. 0340	. 86	46.2	15.64
24X24	. 014	. 356	. 0277	. 70	44.2	14.45
30X30	. 013	. 330	. 0203	. 52	37.1	15.82
30X30	. 012	. 305	. 0213	. 54	40.8	13.36
30X30	. 009	. 229	. 0243	. 62	53.1	7.32
35X35	. 011	. 279	. 0176	. 45	37.9	13.18
40X40	. 010	. 254	. 0150	. 38	36.0	12.55
50X50	. 009	. 229	. 0110	. 28	30.3	12.91
50X50	. 008	. 203	. 0120	. 31	36.0	10.05
60X60	. 0075	. 191	. 0092	. 23	30.5	10.77
60X60	. 007	. 178	. 0097	. 25	33.9	9.27
70X70	. 0065	. 165	. 0078	. 20	29.8	9.45
80X80	. 0065	. 165	. 0060	. 15	23.0	10.55
80X80	. 0055	. 140	. 0070	. 18	31.4	7.68
90X90	. 005	. 127	. 0061	. 16	30.1	7.18
100X100	. 0045	. 114	. 0055	. 14	30.3	6.45
100X100	. 004	. 102	. 0060	. 15	36.0	5.00
100X100	. 0035	. 089	. 0065	. 17	42.3	3.77
110X110	. 0040	. 1016	. 0051	. 1295	30.7	5.64
120X120	. 0037	. 0940	. 0064	. 1168	30.7	5.27
150X150	. 0026	. 0660	. 0041	. 1041	37.4	3.23
160X160	. 0025	. 0635	. 0038	. 0965	36.4	2.70
180X180	. 0023	. 0584	. 0033	. 0838	34.7	3.05
200X200	. 0021	. 0533	. 0029	. 0737	33.6	2.82
250X250	. 0016	. 0406	. 0024	. 0610	36.0	2.00
270X270	. 0016	. 0406	. 0021	. 0533	32.2	2.14
300X300	. 0051	. 0381	. 0018	. 0457	29.7	1.38
325X325	. 0014	. 0356	. 0017	. 0432	30.0	2.00
400X400	. 0010	. 0254	. 0015	. 370	36.0	1.50
