Stainless Steel Wire Rope (7X7; 6X7+PP/FC/IWRC)

Name: Stainless Steel Wire Rope (7X7; 6X7+PP/FC/IWRC)
Brand: china-manufacturer-directory.com
SKU: 696714355
Availability: InStock
Rating: 4.9 (54 reviews)

Price:	US $ 4400/Ton
Trade Terms:	FOB,CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	AISI 304/316; T/S: 1960mpa; 1770mpa; 1570mpa
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Stainless Steel Wire Rope:	0.8mm-26.0mm
Material:	Stainless Steel Wire
Cross Sectional Shape:	Round
Metal Wire Drawing:	Cold Drawing

Product Description

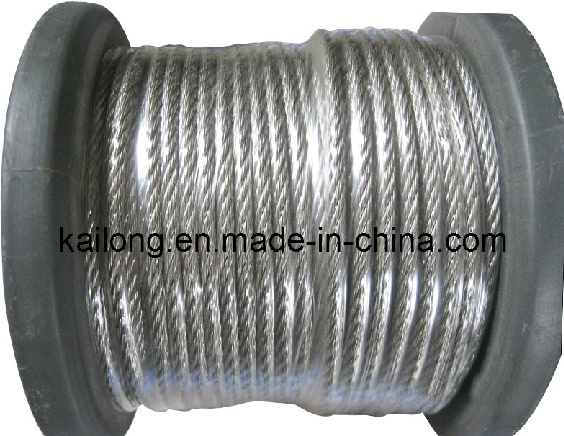

7x7;6x7+FC/PP/IWRC Stainless Steel Wire Rope: 1.Grade:201, 202,301,303,304,304L,316,316L etc. 2.Construction: 7x7;6x7+FC/PP/IWRC; 3.Description of construction: 7 strands each consisting of 7 single wiress .All wires in all strands has same diameter.IWRC is independent wire rope core.FC is fiber core. 4.Diameter: 0.8mm ~ 26.0mm 5.Tensile Strength:1960N/mm2;1870N/mm2;1770N/mm2;1570N/mm2;1470N/mm2. 6.Standard:GB/T9944-2002;EN12385-4;ASTM;JIS;DIN 3055 etc. 7.Price term:FOB;CIF;C&F;CFR 8.Payment term:T/T 30% advnce payment,T/T 70% against B/L copy or LC at sight. 9.Packing:500m/plywood reel;1000m/reel;2000m/reel or as the customer requests. 10.The wire rope can be coated by PVC & Nylon. 11.We accept the third-part inspection. The Packing: *Twist direction of Steel Wire Rope: *The Picture of Stainless Steel Wire Rope as below:

(mm) Nominal Diameter of the Rope(mm)		(Kg/100m) Approx .WT.of the rope kg/100m			Mpa Nominal Tensile Strength of the Rope (Mpa)
					1470					1570		1670			1770				1870
					(KN) Minimum Breaking load of Rope (KN)
Dia.	Tolerance	NFC	SF	WC	FC		WC	FC			WC	FC		WC	FC			WC		FC	WC
mm	%	Kg/100m			KN
0.45	+90	0.074	0.073	0.082	0.096	0.112			0.103		0.120		0.110	0.128		0.116	0.136			0.123	0.143
0.50		0.092	0.090	0.102	0.119	0.139			0.127		0.149		0.135	0.158		0.144	0.168			0.152	0.177
0.60		0.133	0.130	0.146	0.172	0.201			0.184		0.214		0.195	0.228		0.207	0.242			0.219	0.255
0.70		0.180	0.176	0.199	0.234	0.273			0.250		0.292		0.266	0.310		0.282	0.329			0.298	0.348
0.80		0.235	0.230	0.260	0.306	0.357			0.327		0.381		0.348	0.406		0.368	0.430			0.389	0.454
1.0	+85	0.367	0.360	0.406	0.478	0.558			0.511		0.596		0.543	0.634		0.576	0.672			0.608	0.710
1.2		0.528	0.518	0.585	0.689	0.804			0.736		0.858		0.783	0.913		0.829	0.968			0.876	1.020
1.5		0.826	0.810	0.913	1.07	1.25			1.15		1.34		1.22	1.42		1.29	1.51			1.37	1.59
1.8		1.189	1.166	1.315	1.55	1.80			1.65		1.93		1.76	2.05		1.86	2.17			1.97	2.30
2.0	+80	1.47	1.44	1.62	1.95	2.11			2.08		2.25		2.21	2.39		2.35	2.54			2.48	2.68
3.0		3.30	3.24	3.65	4.39	4.74			4.69		5.07		4.98	5.39		5.28	5.71			5.58	6.04
4.0	+70	5.88	5.76	6.50	7.80	8.44			8.33		9.01		8.87	9.59		9.40	10.1			9.93	10.7
5.0		9.18	9.00	10.15	12.2	13.1			13.0		14.0		13.8	14.9		14.6	15.8			15.5	16.7
6.0	+60	13.22	12.96	14.62	17.5	18.9			18.7		20.2		19.9	21.5		21.1	22.8			22.3	24.1
8.0		23.50	23.04	25.98	31.2	33.7			33.3		36.0		35.4	38.3		37.6	40.6			39.7	42.9
10.0		36.72	36.00	40.60	48.8	52.7			52.1		56.3		55.4	59.9		58.7	63.5			62.0	67.1
12.0		52.88	51.84	58.46	70.2	75.9			75.0		81.1		79.8	86.3		84.6	91.5			89.4	96.6
14.0		71.97	70.56	79.58	95.6	103.0			102.0		110.0		108.0	117.0		115.0	124.0			121.0	131.0
16.0		94	92.16	103.9	124.0	135.0			133.0		144.0		141.0	153.0		150.0	162.0			158.0	171.0

We are professional manufacturer of stainless steel wire ropes. Our wire ropes' diameter range from 0.3 - 30mm. Monthly output is about 100 tons. Our wire ropes are used widely in automotive cable industry, fishing industry, oil industry, decoration, and many other industries.

We have exported wire ropes more than 5 years, and we have customers in USA, Italy, Germany, Spain, Australia, India and other countries. And we have rich experience to cooperate with our customer well. Strict quality control, timely delivery, prompt reply, hope to cooperate with you.

And we also supply wire rope accessories, such as clips, shackles, turnbuckles, link chains.
