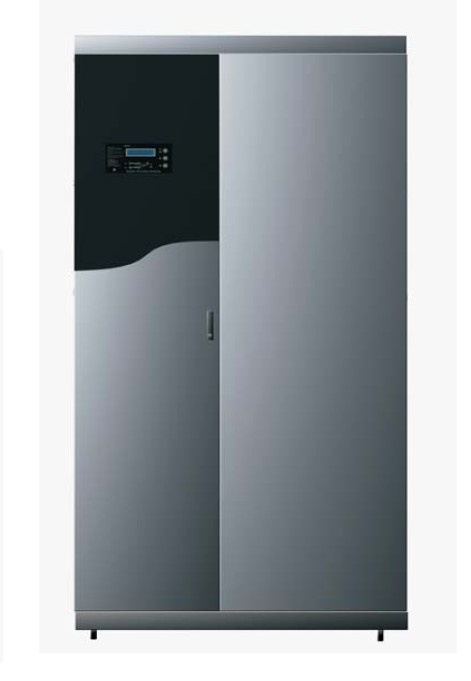

STS of RSTS-series is the sophisticated product with the high performance and high cost performance which is designed as for the Chinese level A computer room. It is the second generation of the fast load switch system researched with the fully new digital technology. It adopts the delay topology structure and realizes the precision of switch time fully to perfectly transfer the load. RSTS- series own the own the high protection which improves the safety and reliability of the system operation. RSTS-series have the harmonious LCD interface design to realize the zero-distance communication between the human and computer; RSTS-series add the STS and PC in communication. The users can learn the work status of STS through using RS232 to conduct the communication; With the application concept that the safety is the first, it is no doubt that STS of RSTS- series is the best choice of you. Besides, the STS of the RSTS power is characterized by the strong loading capacity and low heating and other features.
Application fields:
Medium-large scale computer room
Medium-large scale communication computer room;
Medium-large scale power distribution room
Medium-large work station and peripheral equipments
Performance and features:
The design and production is conducted according to the standard power distribution requirements;
The original imported SCR template design is adopted and the product has the strong overload and impact resistance capability;
The delay topology structure is adopted and the precision of switch has been realized.
The product has the extremely strong power adaptability and RSTS series can input the same phase and the different phases at the same time Power situation
The direct communication of RS232 and PC is adopted and the real-time monitoring of the upper computer is realized.
The MCU digital control is adopted
The intelligent inspection and monitoring function is adopted;
The product has the protection area functions of over voltage, under voltage, over current and others;
The product owns the LCD and LED operation monitoring interface;
Fast load transfer:
This series of products adopt the synchronous control technology and the high-sampling template to ensure the consistence. This series of products also have the MCU and GAL intelligent control chip to ensure that the power parts can switch the load supply circuit with safety, reliability and rapidness.
RSTS-Series three phases
Main Technical Parameters: |
Model |
RSTS-33160 |
RSTS-33250 |
RSTS-33400 |
RSTS-33600 |
RSTS-33800 |
Standard Volume |
106KW |
165KW |
264KW |
396KW |
528KW |
Rated Current |
each phase 160A |
each phase 250A |
each phase 400A |
each phase 600A |
each phase 800A |
Switch Time |
≤5ms |
Output Interface |
Cable row |
Priority |
Automatic setting |
Input |
Scope of input voltage of M1circuit |
230VAC/380V |
Scope of input voltage of M2 circuit |
230VAC/380V |
Scope of input frequency |
50HZ-60HZ |
Power environment |
Same phase and different phases |
Output |
Scope of output voltage |
230VAC/380V |
Output over current |
110% |
Output efficiency |
≥98% |
Management |
Status display |
Display of LCD electric quantity parameters, display of LED status |
Interface management |
RS232 interface/interface of dry contact |
Software |
X |
Protection |
Power surge protection |
Input M1/input M2 |
Communication surge protection |
RS232 interface |
Overload short circuit protection |
Over current short circuit protector |
Standard
Recognition |
Design and production |
ISO9001:2000 |
Safety certificate |
EN50091-2,IEC60950 |
Electromagnetic compatibility |
EN50091-2,EN61000-3-2,EN6000-4-2/-3/-4 |
Environment |
Environmental temperature |
-40°C----+70°C |
Environmental humidity |
10%-90% |
Physical
property |
Size of machine |
1000×600×1800 |
Size of package |
1250×650×1850 |
