Product Specifications
| Prod Model: |
STD-2013S s |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Black: |
5.5mm*2.1mm*11mm |
| Output:12VDC: |
Output Current:2A |
| Efficiency:85%: |
WeightT130g |
| Output Type: |
Single |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Voltage Regulating Mode: |
Width Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Warranty: |
>2 Years |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
FCC |
Product Description

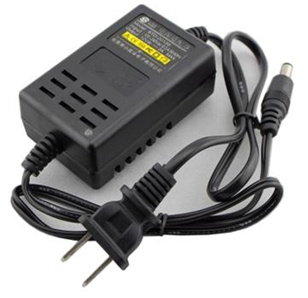

STD-2013S switching regulated power supply
Performance
Technical datasheet
Input Voltage 100/240VAC
Input Current Max 3000mA
Frequency 50-60Hz
Output Voltage Rang ± 5%
Standby Power Loss Max0.2W
Efficiency 85%
LED Indicator Green
Environment requirement
Working Temperature 0° C-40° Cfull load working
Storage Temperature -20° C to 60° C
Humidity 5%-95%
Safety Standard
Safety Standard CCC-GB8898-2001; GB13837-2003; GB17625.1-2003 CE-EN60950-1: 2006/A11: 2009
EMS FCC PART15JCONDUCTION CLASSA
Reliability
MTBF Under 25° C full load working
50000H
M IL-HDBK-217
Machine specifications
AC plug USA plug
DC plug 5.5mm*2.1mm*11mm
Weight 130g
Dimension L82mm*W51.5mm*H30mm
Choice technical data
Performance Model
STD-412K-A+ STD-2013S STD-412K-E STD-412K-G
Output Voltage 12VDC 12VDC 12VDC 12VDC
Output Voltage Tolerance ± 1% ± 1% ± 1% ± 1%
Output Current 1A 2A 3A 5A
Output Current Range 0~1A 0~2A 0~3A 0~5A
Ripple and Noise 120MVP-p 120MVP-p 120MVP-p 120MVP-p
Into line Stability 0.50% 0.50% 0.50% 0.50%
Load Stability 1.00% 1.00% 1.00% 1.00%
Output Power 12W 24W 36W 60W
Efficiency 85% 85% 85% 85%
Adjustable Input Voltage Range 110-240VAC 110-240VAC 110-240VAC 110-240VAC
Input Current 0.06-0.13A 0.12-0.26A 0.18-0.39A 0.3-0.65A
Surging Current Cold-start current 18A/110V36A/240V
Leakage Current <1mA/240VAC
Overload Protection 105%~200%hiccup mode; Auto-recovery
T. C. 0.03%/° C(0~50° C)
Start, Rise, Hold Time 200ms 100ms 20ms
Mechanical shock 10-500Hz, 2G, 10min/1, 60min
Insulation strength I/P-O/P: 1.5KVAC
I/P-FG: 1.5KVAC
O/P-O/P: 0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-O/P: 500VDC/100MΩ
Working temperature -10° C~ 60° C, 20%~90%RH
Store temperature -20° C~ 85° C, 10%~95%RH
Size L79*W47.5*H26mm 81.5*51*29mm 116*48.5*32mm 116*48.5*32mm
Weight 26.5kg/200PCS 28.5kg/201PCS 24.5kg/100PCS 29.5kg/100PCS
Safety standard UL1012 PEQUIREMENT(NOT APPLY FOR THE NARK)
EMC standard Meeting FCC PART15JCNDUCTION CLASSA
Dongguan Xiao'erduo Electronics Co., Ltd. Has been established in 2001 and was an industrial company, which combines R&D, the production and the sale in one located in Dongguan city--the biggest manufacturer base in China.
Our company has own R&D team, whose products have attained many national patents, . For example: '3C Certification', 'ISO9001 Quality System Certification', 'CE Certification', 'China Import and Export Inspection Certification', 'Excellent Quality Enterprise' now, UL Certification and so on.
Our product lines include AC/DC switching power supplies, AC/AC linear power supplies, indoor and outdoor switching and linear power supplies, Rack-mounted multi-channel centralized power supply and so on, please check bellowing test of details.
Our product lines include AC/DC switching power supplies, AC/AC linear power supplies, indoor and outdoor switching and linear power supplies, Rack-mounted multi-channel centralized power supply and so on, please check bellowing test of details.
Professional manufacturing: Monitoring Power for CCD Camera, PTZ Power supplies, Decoder Power supplies, Burglar Alarm Power supplies, Access Control Power supplies, Dedicated Optical Power Plane, etc. Including: Outdoor wall-type water-proof Series, Indoor wall-type Series, Desktop Series. Wall-Plugged Series, High-power Integrated Power supplies, etc. All series power supplies are available in different countries.
