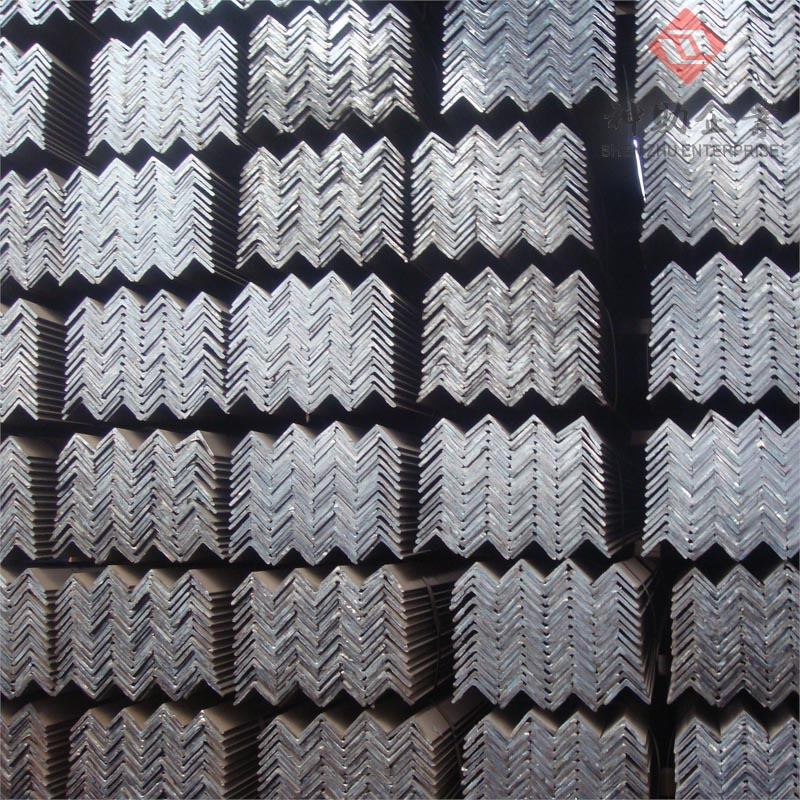

We produce A36 Q235 steel angles,is widely use general purpose hot rolled mild steel angle sharp with inside radius corners, ideal for all structural applications. General fabrication and reprairs. Structural Steel Angle is used in industrial maintenance, agricultural implements, tansportation equipment, etc. Steel Angle is also available in a galvanized coated finish.
size rangs(mm)
| Length:6-12m | GB | Available Length | Size | GB | Available Length |
| Leg Length × Leg Length × thickness | Weight(kg/m) | Leg Length × Leg Length × thickness | Weight(kg/m) |
| (mm) |
| (mm) |
|
| 25 ×25×3 | 1.124 | 6-12m | 90 ×90×8 | 10.946 | 6-12m |
| 25 ×25×4 | 1.459 | 6-12m | 90 ×90×9 | 12.219 | 6-12m |
| 30 ×30×3 | 1.373 | 6-12m | 90 ×90×10 | 13.476 | 6-12m |
| 30 ×30×4 | 1.786 | 6-12m | 90 ×90×12 | 15.94 | 6-12m |
| 40 ×40×3 | 1.852 | 6-12m | 100 ×100×6 | 9.366 | 6-12m |
| 40 ×40×4 | 2.422 | 6-12m | 100×100×7 | 10.83 | 6-12m |
| 40 ×40×5 | 2.976 | 6-12m | 100 ×100×8 | 12.276 | 6-12m |
| 45 ×45×3 | 2.088 | 6-12m | 100 ×100×10 | 15.12 | 6-12m |
| 45 ×45×4 | 2.736 | 6-12m | 100 ×100×12 | 17.898 | 6-12m |
| 45 ×45×5 | 3.369 | 6-12m | 100 ×100×14 | 20.611 | 6-12m |
| 45 ×45×6 | 3.985 | 6-12m | 100 ×100×16 | 23.257 | 6-12m |
| 50 ×50×3 | 2.332 | 6-12m | 110 ×110×7 | 11.928 | 6-12m |
| 50 ×50×4 | 3.059 | 6-12m | 110 ×110×8 | 13.532 | 6-12m |
| 50 ×50×5 | 3.77 | 6-12m | 110 ×110×10 | 16.69 | 6-12m |
| 50 ×50×6 | 4.465 | 6-12m | 110 ×110×12 | 19.782 | 6-12m |
| 56 ×56×3 | 2.624 | 6-12m | 110 ×110×14 | 22.809 | 6-12m |
| 56 ×56×4 | 3.446 | 6-12m | 120 ×120×10 | 18.2 | 6-12m |
| 56 ×56×5 | 4.251 | 6-12m | 120 ×120×12 | 21.6 | 6-12m |
| 60 ×60×5 | 4.57 | 6-12m | 125 ×125×8 | 15.504 | 6-12m |
| 60 ×60×6 | 5.42 | 6-12m | 125 ×125×10 | 19.133 | 6-12m |
| 63 ×63×4 | 3.907 | 6-12m | 125 ×125×12 | 22.696 | 6-12m |
| 63 ×63×5 | 4.822 | 6-12m | 125 ×125×14 | 26.193 | 6-12m |
| 63 ×63×6 | 5.721 | 6-12m | 140 ×140×10 | 21.488 | 6-12m |
| 63 ×63×8 | 7.469 | 6-12m | 140 ×140×12 | 25.522 | 6-12m |
| 70 ×70×5 | 5.397 | 6-12m | 140 ×140×14 | 29.49 | 6-12m |
| 70 ×70×6 | 6.406 | 6-12m | 140 ×140×16 | 33.393 | 6-12m |
| 70 ×70×7 | 7.398 | 6-12m | 160 ×160×10 | 24.729 | 6-12m |
| 70 ×70×8 | 8.373 | 6-12m | 160 ×160×12 | 29.391 | 6-12m |
| 75 ×75×5 | 5.818 | 6-12m | 160 ×160×14 | 33.987 | 6-12m |
| 75 ×75×6 | 6.905 | 6-12m | 160 ×160×16 | 38.518 | 6-12m |
| 75 ×75×7 | 7.976 | 6-12m | 180 ×180×12 | 33.159 | 6-12m |
| 75 ×75×8 | 9.03 | 6-12m | 180 ×180×14 | 38.383 | 6-12m |
| 75 ×75×10 | 11.089 | 6-12m | 180 ×180×16 | 43.542 | 6-12m |
| 80 ×80×5 | 6.211 | 6-12m | 180 ×180×18 | 48.634 | 6-12m |
| 80 ×80×6 | 7.376 | 6-12m | 200 ×200×14 | 42.894 | 6-12m |
| 80 ×80×7 | 8.525 | 6-12m | 200 ×200×16 | 48.68 | 6-12m |
| 80 ×80×8 | 9.658 | 6-12m | 200 ×200×18 | 54.401 | 6-12m |
| 80 ×80×10 | 11.874 | 6-12m | 200 ×200×20 | 60.056 | 6-12m |
| 90 ×90×6 | 8.35 | 6-12m | 200 ×200×24 | 71.168 | 6-12m |
| 90 ×90×7 | 9.656 | 6-12m |
|
|
|
