Xuecheng Global Trader Co., Ltd. >> Steel Wood Structure Lab Side Table/ Laboratory Side Bench

Steel Wood Structure Lab Side Table/ Laboratory Side Bench

Steel Wood Structure Lab Side Table/ Laboratory Side Bench
Price: US $ 240/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 9/Meter
Pay Type: T/T,Paypal,Money Gram,Western Union

Product Specifications

Prod Model: XC-BT3000GM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Kind: Platform
Material: Steel+Wood
Usage: Labortatory
Color: Customized

Product Description

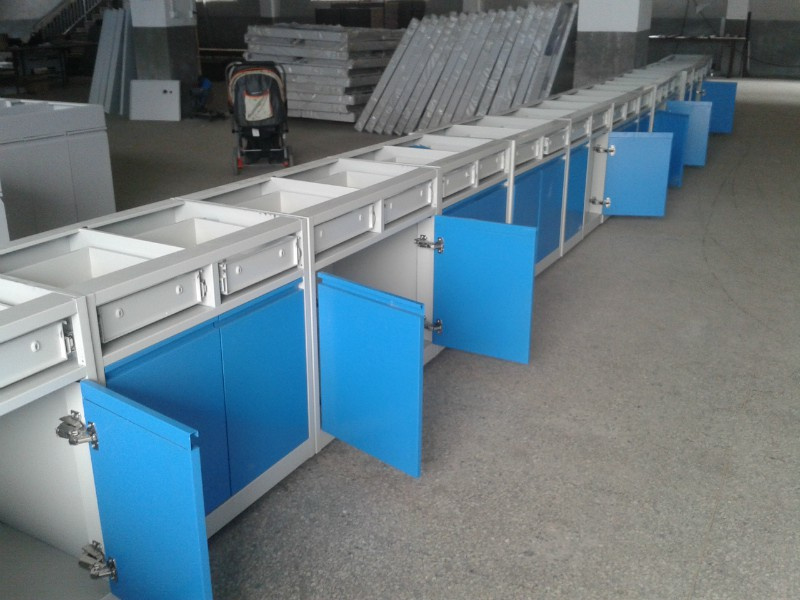

Steel Wood Structure Lab Side Table/ Laboratory Side Bench

With reasonable structure, good load-bearing, flexible to assemble, easy to maintain and convenient to install and transport, it is the best choice for middle level and high level laboratory. The steel frames are all pickled and phosphorized and coated with epoxy resin powder, making the frame exquisitely appeared and corrosion resistant.

1. Vertical frame: Adopting 40*60* high quality metal sectional material welding molding, the surface is coated with epoxy resin powder, making the frame stable, exquisite appearance and good corrosion resistant.
2. Front beam: Adopting 40*60 high quality cold rolled sheet impact molding, fixed on vertical frameset by screws or blind rivets.
3. Back beam: Adopting 40*60 high quality cold rolled sheet impact molding, fixed on vertical frameset by screws or blind rivets.
4. Under beam: Adopting 40*60 high quality cold rolled sheet impact molding, fixed on vertical frameset by screws or blind rivets.
5. Adjustable foot: Adopting 10 cm screw underlay rubber protecting seat, intermediate line shock-absorbent plate.
6. Table top: Adopting 12.7mm solid core physiochemical board for laboratory use, all around is thickened to 25.4mm, edgewise double layer circular, acid-base resistance, water resistance, anti-static, easy to wash.
7. Cabinet body: Adopting 18mm thickness high quality melamine board, edge sealed by 2mm thickness high quality PVC.
8. Door and drawer board: Door and drawer board including all cupboard, use melamine board to make, the thickness of board is 18mm, the around is sealed by high quality PVC to seal.
9. Baffle plate: The material usemelamine board, the thickness of board is 18mm, the around is sealed by high quality PVC to seal.
10. Wire casing: Is made with 18mm dampproof board.
11. Socket: Power supply adopts brand multifunctional socket.
12. Handle: Adopting integral forming groove handle or C type stainless steel handle, firm and elegant appearance.
13. Slideway: Adopting high quality three section rolling ball slide plant for laboratory use, no noise and light slide when pulled, high strength and not deformedafter long term load.
14. Hinges: Adopting high quality steel hinges for laboratory use, opening angles 90° , no noise, no springback, high strength and not be broken.
15. Test flume: Is made with 6 mm thickness PP material, acid-base resistance, one integrative type.
16. Test nozzle: Adopting steeliness three outlet white/gray water faucets, the water faucet is nozzle tip type, high head, single mouth 360° Rotation, is convenient for the multipurpose use, user dismant it to clean the blocking. Has the slow pressure function; The surface has epoxy resin spray coating, ceramic valve core; The outlet is dismantable, with formation thread inside, which can be connected conveniently to special water pipe.
17. Dropping water device(optional): Adopting anti-syphon type water container, having the function of blocking stink and water pipe blocking, and easy to dismantle and maintain.
18. Two-sided reagent rack: Upright column adopts high quality steel sections welding molding, spec is 50*100, surface is coated with epoxy resin powder, firm stucture, anti-corrosion and elegant appearance.
19. Reagent rack laminate: Adopting 8mm thickness single side scrubs high quality tempered glass, all around rim treatment, slick and not easy to hurt the hand. Equipped with glass supporting board and steel plate bending hook. It is free to adjust the height according to comfortable requests; Edge is equipped with Ø 12mm stainless steel pipe in order to prevent reagent bottle drop. Elegant appearance and useful.

Remarks:
1)EXW price: $570/set ($190/meter)
2) Pls confirm the concrete packing measurement, weight temporarily
Specifications ( mm)
LengthWidthTop HeightTotal Height
30007500800/8501550
we can customize special measurements according to user's requirements
Xuecheng Global Trader Co., Ltd is one professional industry&trading company, with rich experiences and outstanding technical talents, after years' development, we have grown into one diversified company, our business is involved in automobile&motorcycle maintenace, solar energy products, laboratory equipments, etc.

We have successfully exported our products to many areas over 30 countries like Australia, New Zealand, USA, Canada, Central&South America countries, Middle East, EU countries, etc

We're always trying to provide reasonable and high quality products and service, we're also working hard to be the top quality suppliers for our customers all over the world.

"Striving for Excellence, Creating Achievements"
