Product Specifications
| Prod Model: |
XBF-S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading: |
Continuous |
| Disposal Rate: |
20 - 50 T/Day(Variable to Calorific Value) |
| Combustion Chamber: |
Multiple Stage |
| Combustiontemperature: |
Upto 1250 Celsius |
| Flue Gas Retention Time(2ND Chamber)): |
2 Seconds or More |
| Emission: |
Comply with National Emission Regulations |
| Oil Consumption: |
Variable From Ignition Only or Higher |
| Incinerator Type: |
Static |
| Function: |
Main Equipment |
| Usage: |
Special Equipment |
Product Description

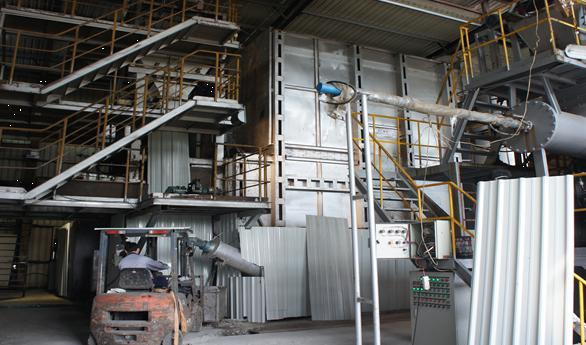

FEP stepped hearth incinerator takes stepped hearth design. The wastes are fed by the feeding device into the sloped combustion hearths. The wastes are pre-combustion drying, main combustion, and secondary combustion. The wastes take heats not only from radiation and convection, but also internally. The flamed wastes rotated and agitated heavily to achieve the best possible incineration. The continuous rotation and agitation loosen the wastes with better air permeability for ignition and combustion. The high temperature in side the chamber shall kill any pathogens.
FEP stepped hearths have high heat resistance. The incinerator runs reliably and durably. The chamber arch is specially designed for smooth flue gas flows so that quality preheating, teat radiation, and combustion are achieved. The auxiliary air is also thoroughly designed to ensure the optimized waste spreading on the hearths. The optimized primary and secondary airs as well as chamber temperature control secure not only the even and complete incineration but also less chamber wall corrosion so that the incinerator is capable of handling broader range of wastes and high moisture wastes.
Exactly as the mandatory std requirement, FEP static stepped hearth incinerator system includes the full function flue gas treatment system. This filtration system takes care of the the flue gas treatments, including pollutants, poisoned substances(such as dioxin), heavy metals, particular matters, etc.. The emission satisfies the requirement of national emission regulations.
Notes:
1. The FEP continuously improve the products and thus they are subject to change without prior notice;
2. The FEP reserves the rights to revise the prices at any time without prior notice;
3. The infomration released in this website is for promotion and information only.
Fankun Environmental Protection(FEP) is the leading supplier of advanced environmental-friendly incinerator disposal system. FEP has rich heritage of incinerator and flue gas treatment systems back to 1990 with many proprietary technologies.
Its products cover both mobile and static incinerators. The mobile incinerators include mobile trailer incinerator, containerized incinerator, combined modular incinerator with the disposal rate from 8t/d and up. The static incinerators include stepped hearth incinerator and rotary kiln incinerator with the disposal rate from 20 t/day and up. All incinerators are integrated with full flue gas treatment system to completely comply with tightest environmental regulations.
FEP is a total solution provider. With providing the incinerator satisfying your capacity requirement, FEP also takes EPC project of upgrading existing disposal incinerator systems or complete turnkey for a new construction. FEP could further provides operational servicesif it is preferred to.
FEP incinerator systems are designed and built for disposing broad ranges of wastes, ranging from municipal solid wastes, animal carcass wastes, medical wastes, industrial process residues, to contraband and similar substances. FEP advanced mobile incinerators are the most suitable incinerators for disaster management, epidemic emergency services, and general mixed waste treatments from remote, isolated, and restricted regions and areas. These mobile incinerators could be deployed quickly to the point-of-need to achieve the highest biosafety and maximum volume reduction.
