Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Type For Cutting Machine: |
Hydraulic Cutting Machine |
| Automation: |
Semi-automatic |
Product Description

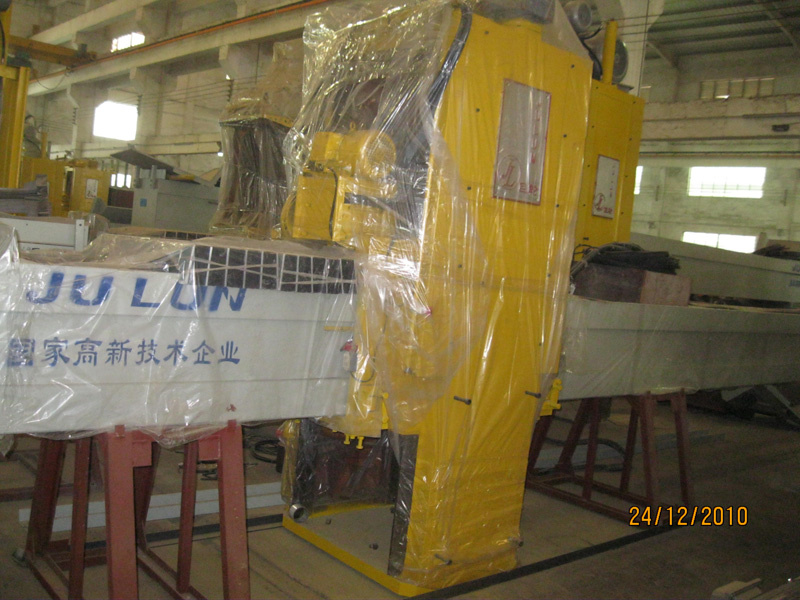

SQC-2200/2500/2800 adopts big span bridge and beam structure. The crossbeam and side beam are sealed adopt style of feed lift to feed lift to achieve smooth and quick reamer rise, and slow feed. The moved speed of automatic cutting can be adjusted by frequency according to customer's requirement. The slabs are directly installed on the ground to save costs of maintenance. Thies machine works accurately with stable performance, high outomatic and high efficiency. Its installation, operation and maintenance are ver simple. Isuits the development of stone industry. Note: The 360° Rotating worktable can be selected if customer requires.
|
Name |
Unit |
SQC-2200A/2500A/2800A |
SQC-2200B/2500B/2800B |
|
Saw diameter |
mm |
#2200 / #2500 / #2800 |
#2200 / #2500 / #2800 |
|
Beam length |
mm |
6500 |
7400 |
|
Max length |
mm |
3300/3000/2700 |
4100/3800/3500 |
|
Max width |
mm |
2300 |
2300 |
|
Maximum height adjustment |
mm |
1350 |
1350 |
|
Water consumption |
L/min |
130 |
130 |
|
Main motor power |
kw |
37 |
37 |
|
Total power |
kw |
45 |
45 |
|
Dimensions (L * W * H) |
mm |
6900*3800*4200 |
7800*3800*4200 |
|
Total weight |
kg |
9200 |
9500 |
FUJIAN NANAN JULUN MACHINERY CO., LTD. is one of the most strength and the famous enterprises in Chinese stone material equipment field. It is a science and technology enterprise specialized in production of big and medium sized stone material processing equipments and located at Shijing Town, Nan'an City with easy access, which is well known as China's Hometown of stone material. The company has modern standardization factory buildings and modernized scientific research buildings with first-class production processing equipments.
