Straight Line Double Edging Glass Machine (FSM2025B)
| Price: |
US $ 53600-58500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

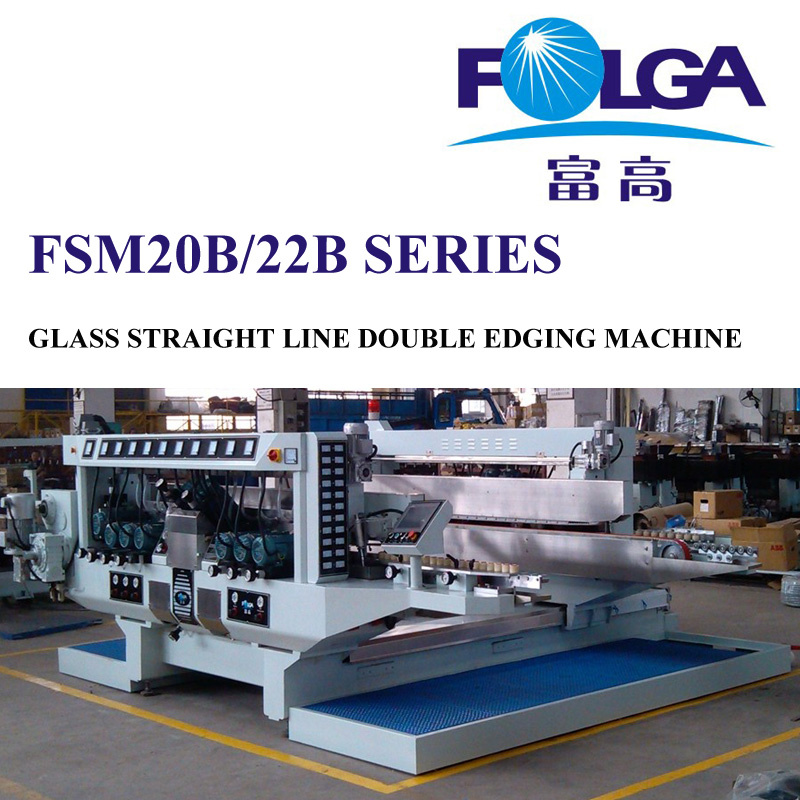

FSM2025BL glass double straight edging machine is the FOLGA newl generation developed product, with economic, efficient, high precision and reliable safety, whcih id suitable for various specifications of the flat glass, ordinary laminated glass, Low-e film removing glass ,even more suitable for batch and mass production

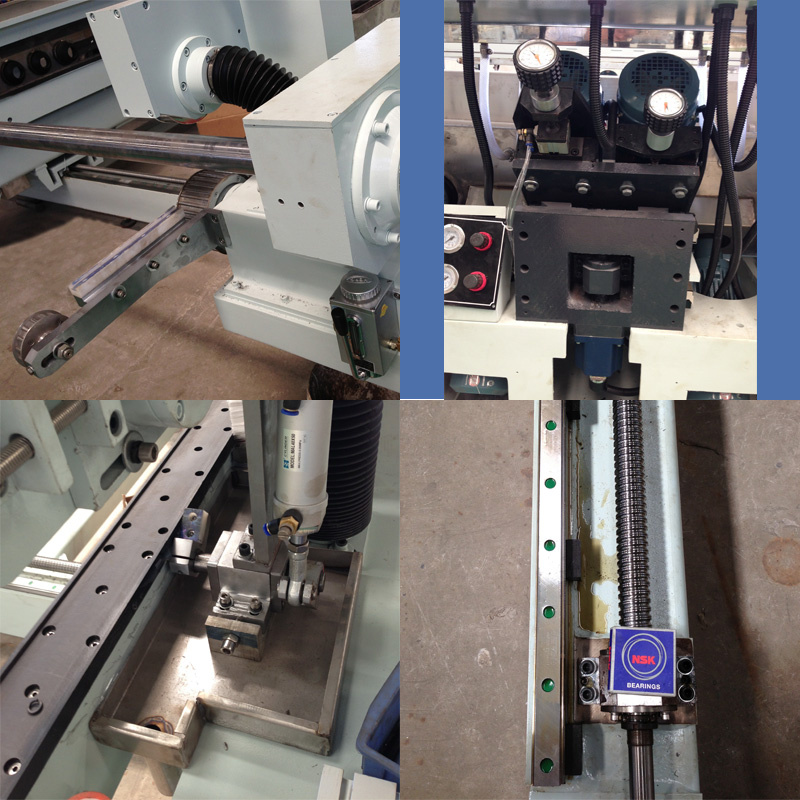

FSM2025B Straight line double edging machine configuration fromI. Main technical data1, Glass thickness: 3~25 mm2, Min. Processed size: 250 mm3, Max. Processed size: 2500mm4, Max. Hemline grinding: 5mm(single line)5, Max. Arris grinding: 3mm6, speed: 1~6.5 m/min, request achieve the best polishing effect 1, 2, 31, when the grinding thickness is 4mm-8mm, speed: 3m/min2, when the grinding thickness is 10mm-12m, speed: 2.3m/min3, when the grinding thickness is 15mm-19mm, speed: 1.2m/min7, slide grinding head section speed: 700 mm/min8, working height: 900mm9, overall size: 4900X3900X1700mm10, Voltage/frequency: 380V/50Hz11, compress air: ≥0.6Mpa12, Air blowing rate: 1320 m3/Min13, water pump output volume: 400L/hX214, Total power: 49KwII Main Structure:·Flange adopt double Ball strew and straight line guiding rail, resetting well.·Grinding head planker adopt high precision double V guiding rail, running stable, small shaking.·Polishing adopt manual and Pneumatic half auto compensate.·Upper angle of chamfer adopt ball screw and straight line guiding rail, Accurate positioning.·Compaction frame auto lifting.·Master drive adopt mechanism frequency conversion speed regulation, main driving axle upper place, easy change belt and maintain.·Glass transmit adopt annular timing belt and pneumatic locating device, transfer stable, exactly fixed position.·Adopt human interface and PLC control system, easy operateIII. Quality standard1,processing glass quality requirement:1)flat glass depth of parallelism error less than 3mm2)flat glass thickness error less than 0.1mm2,machine acceptance level: 1)sub tense depth of parallelism error: ≤0.2mm/m; 2)glass diagonal error: ≤0.5 mm/m; 3)average glass polishing surface4)Other requirement: hemline, average bevel edges; average polishing brightness, without scratch, broken edges, and linen finish; machine operating without noise. Stable.Some details:
|
Name |
main specific |
|
material of the machine and frame |
Base, tank body, adopt high quality steel material, through anneal processing. Structure stabilize, can support large process burthen. |
|
under beam material |
adopt 5cm thickness 45# steel material |
|
transfer rail board |
Adopt macromolecule material, with high abrasion performance. |
|
grinding motor |
adopt Shanghai ABB or CDQC motor |
|
liner guide rail |
Adopt Taiwan HIWIN |
|
ball screw rod |
adopt Taiwan ABBA |
|
Timing belt |
From Italy BARBIERI or MEGADYNE |
|
transducer |
adopt JAPAN HITACHI |
|
rotary switch emergency switch |
adopt JIANGYIN Changjiang |
|
Photoelectric switch, intermediate |
from Japan OMRON |
|
PLC |
from Taiwan DELTA |
|
touch screen |
from Taiwan HITACHI |
|
Rotary Encoder |
from Korea AUTONICS |
|
Transformer, circuit breaker and contractor |
From JIUCHUAN , CHINT |
| Prod Model: |
FSM2025B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Glass Thickness: |
3-25mm |
| Min. Processed Size: |
250mm |
| Max. Processed Size: |
2500mm |
| Max. Hemline Grinding: |
5mm(Single Line) |
| Max. Arris Grinding: |
3mm |
| Speed: |
1~6.5 M/Min |
| Overall Size: |
4900X3900X1700mm |
| Type: |
Glass Edging Machine |
| Certification: |
ISO |
| Control System: |
PLC |
FOLGA Glass Machinery Co., Ltd. Is one the subsidiary company of Hong Kong FULIGAO Enterprise with area of 15, 000 square meters and 150 staffs in Shunde district. Its convenient transportation and completed facilities just take you about one hour here from FOLGA to Guangzhou International Airport or Hong Kong pier bydriving. FOLGA is a professional glass machinery manufacturer for deep-processing glass which with rich manufacturing experience, advanced technology and excellent equipment.
For years, we keep on improving, designing and manufacturing the first class and unique equipment to meet the customers' Need. What we have are: Glass straight line double round edging machine, Glass straight line double edging machine, Glass straight line beveling machine, Glass bearing straight line edging machine, Glass straight line edging machine, Glass straight line round edging machine, Irregular glass edges grinding machine, Glass drilling machine, Glass washing machine and Glass sandblasting machine, which are widely used for glass processing in industry of construction, furniture, domestic appliance, art and solar. Our market include but not limit to Russia, Columbia, Brazil, Turkey, Australia, Poland, Indonesia, Vietnam, Saudi, Israel, India and Iran etc., over 20 countries and area.
"Customer is god, Quality is life, Management is base, Technology is soul", as the concept of FOLGA. FOLGA Glass Machinery Co., Ltd insists on the faith: Setting up customers' Ease with confidence, sincerity, perseverance, patience, love. FOLGA is eager to providing you high cost-effective equipment.
FOLGA is your preferred choice for glass deep-processing; FOLGA is creating a "New Double edging machine, Beveling machine kingdom"; FOLGA is anque and innovative pioneer; FOLGA is a "Cost-effective" machinery delegate. Do choose"FOLGA Glass Machinery Co., Ltd. "
