Product Specifications
| Prod Model: |
RX2-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation: |
Electric Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Conventional Circuit Breaker |
| Arc-extinguishing Medium: |
Chemically Treated High-Purity Quarts |
| Function: |
Overcurrent Protection~@~Circuit-Breaker Failure P |
| Certification: |
CE~@~VDE~@~CB |
| Type: |
Fuse |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
Product Description
Aplication:
This series of fuse alarms are used in electric lines of 50HZ AC and rated voltage up to 1000V as melting signal/siren for the fuse links.
Design Feature:

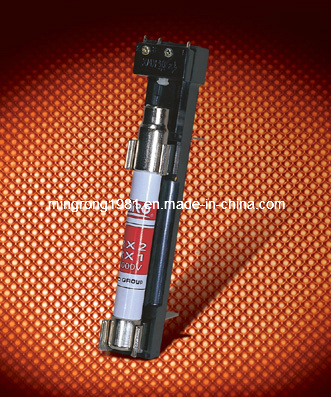

It is made up of the following parts: 1. Melt striker; 2. Micro switch (with one normal close contact and normal open contact); 3. A base for the striker and the switch.
Fuse alarms are usually paralleled under the lid fastening screw at the ends of the fuse. When the fuse breaks, the striking pin springs out of the striker, the microswitch pushed and signal sent out or circuit cut down. The distance between the two fastening ends can be adjusted in a certain range for paralleling to fuses with different heights.
Zhejiang MINGRONG Electrical Protection Co., Ltd, the sino-French joint venture established by MINGRONG Group and Carbone Lorraine Group, is one of the most famous and professional manufactures of high- and low-voltage fuse and fusegear.
Company has strong technical capabilities, professional know-how, and advanced check-out facility, the first-class surveillance and measure method, we continuously pursuit highest standard of product quality and make "MIRO" a well-known and trustworthy brand in extensive customers. With 28series and 1000 more varieties, our products are popular throughout China and overseas.
