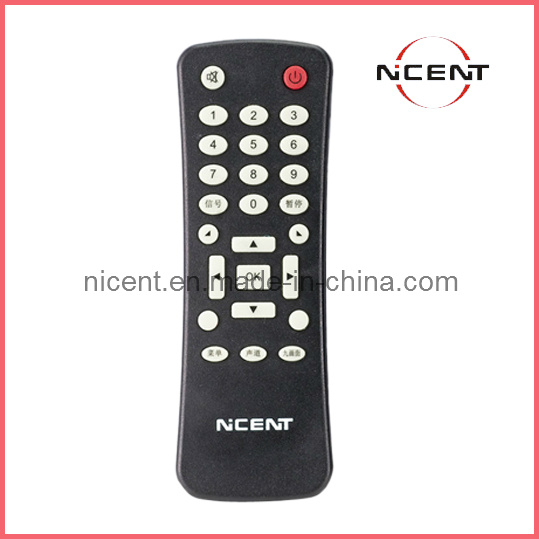

Product Specifications
| Prod Model: |
026C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
130x44x16mm |
| Button: |
26kyes |
| OEM DVB Remote Control Sample: |
Available |
| Signal Transmission: |
IR Remote Control |
| Application: |
Household Appliances |
| Type: |
Button |
Product Description
1. Dimension: 130X44X16mm
2. Button: 26 keys
3. Net W. T. (without battery): 66g(± 2g)
4. Cover treatment: Bottom cover is dark grey, surface is silver and silk screen words are black
5. Cover material: New ABS
6. Code format: NEC6122 (Bonding IC)
7. Carrier wave frequency: 38K± 0.18kHz
8. Surge centre frequency: 455kHz
9. Infrared wave length: 950± 50nm
10. Standard voltage: DC 3V
11. Workable voltage range: 2.25~3.2V
12. Power: 1.5V X 2 "AAA"battery
13. Power drain: 8~10MAV/time
14. Moving electricity current: 10~35mA
15. Static electricity current: ≤ 3μ A
16. Workable distance(axle direction): ≥ 8m
17. Control angle: ± 30°
18. Point function distance: ≥ 6m
19. Single package: Plastic self-styled bag
Shenzhen Nicent Electronics Co., Ltd was founded in 2002. It is located at the side of Shiyan Lake, a famous beauty spot in Shenzhen.
We have been committing ourselves, since the foundation of the company, to research and manufacture special remote control (RC) for Digital Video Broadcast(DVB). So far, we have developed and promoted 50 kinds of designs of infrared RC which are widely used in standard system such as DVB-S, DVB-C, DVB-H, etc.
At the same time, we also have developed advanced RC, such as RC of variety in one, learning RC and radio frequency RC which control advanced equipments and are widely involved in the field of broadcast TV. We have been providing services to more than 248 DVB brands in the world, thus makes us become the one which can supply the most models of remote control for the market. In order to satisfy all kinds of customer with their individual requirement in quality, delivery time, service and so on, we can independently complete the development of software and hardware, and produce the related parts and processing plastic shells, rubber buttons, silk screen, oil spraying and quality control.
We are actively promoting environmental protection concept and began to produce products complying with standard of RoHS since 2003. We started to import RoHS system in 2005 and have been going on improving production environment. And we shall keep on providing products conforming to the standard of RoHS to the international DVB market.
