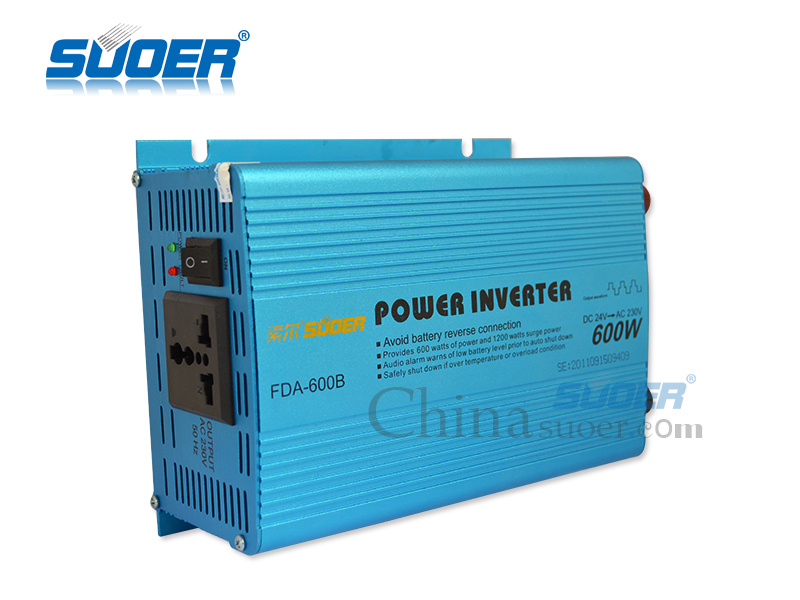

Suoer Factory Price 24V 230V Solar Inverter 600W Square Sine Wave Solar Inverter with CE&RoHS (FDA-600B)

Product Specifications

Prod Model:	FDA-600B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	Single
Type:	DC/AC Inverters
Power Source:	Solar Power
Output Power:	501 - 1000W
Certification:	CTA
Brand:	Suoer

Product Description

Suoer Factory Price 24v 230V Solar Inverter 600W Square Sine Wave Solar Inverter with CE&ROHS (FDA-600B)

Features

1. Equipped with perfect protection circuit.
2. Provide safe automatic shutdown function, including grounding protection , low voltage alarm to prevent damage to your battery.
3. Inverter have advanced anti-jamming technology, fully functional protection circuit, soft start circuit and convenient operation mode.
4. Soft-start circuit has the function of gradually raising the output voltage when startup, to eliminate failure of cold start. And it also has the function of instant drop and fast recovery of output voltage, to reduce the load boot instantly overloaded.
5. Modified/Square waveform output.
6. Applicable for resistive AC loads.
7. Gained CE,CTA,ISO,RoSH certificates guaranteed.
8. 26 years' experience in home power supply industry.

Protection

4 safe protections are designed to ensure the safety of the power inverter,including overheating protection , battery protection , short circuit protection and ground protection.

Technical Parameters

Model	FDA500A-110	FDA500B-110	FDA-600A	FDA-600B	FDA-600F	FDA-600G
Output voltage	AC110V	AC110V	AC230V	AC230V	AC230V	AC230V
Output power	500W	500W	600W	600W	1000W	1000W
Peak power	1000W	1000W	1200W	1200W	2000W	2000W
Frequency	60HZ	60HZ	50HZ	50HZ	50HZ	50HZ
No-load current	<1A	<0.5A	<1A	<0.5A	<0.2A	<0.1A
Working volt	DC12V	DC24V	DC12V	DC24V	DC48V	DC60V
Voltage range	10.5-15V	21-30V	10.5-15V	21-30V	42-60V	52.5-75V
Alarm range	10.5V	21V	10.5V	21V	42V	52.5V
Low-voltage protection	10V	20.5V	10V	20.5V	40V	51V
Overvoltage protection	16V	31V	16V	31V	62V	75V
Efficiency	>90%	>90%	>90%	>90%	>90%	>90%
SIZE/CTN	47.5*28.5*20.2cm		47.5*28.5*20.5cm		47.5*28.5*20.5cm
G.W./CTN	8.8KG		8.66kg		8.66kg

Application

This power inverter is extraordinarily designed for home use,which can convert DC 12V/24V of portable power supply to AC 110V/220V/230V and it works for almost all the household electrical resistive appliances such as MP3/MP4 player,cell phone, laptop, emergency light, electric blanket, electric shaver, electric cooker,digital camera, digital video,CD/DVD player,XBOX/PS4 game player, ordinary electric lamps, bulb,fluoresent light, rice cooker,electric iron,desktop computer, graphoscope,fax machines, printers, LCD TV, electric fans, cell phone chargers, electric iron , drinking fountain,hair dryer and so on. (Note:Only pure sine wave inverter can run sensitive electric appliances that are including refrigerator, washing machine,microwave oven, induction cooker, electric drill,compressor,air conditioner,mercury lamp, sodium lamp and so on)
