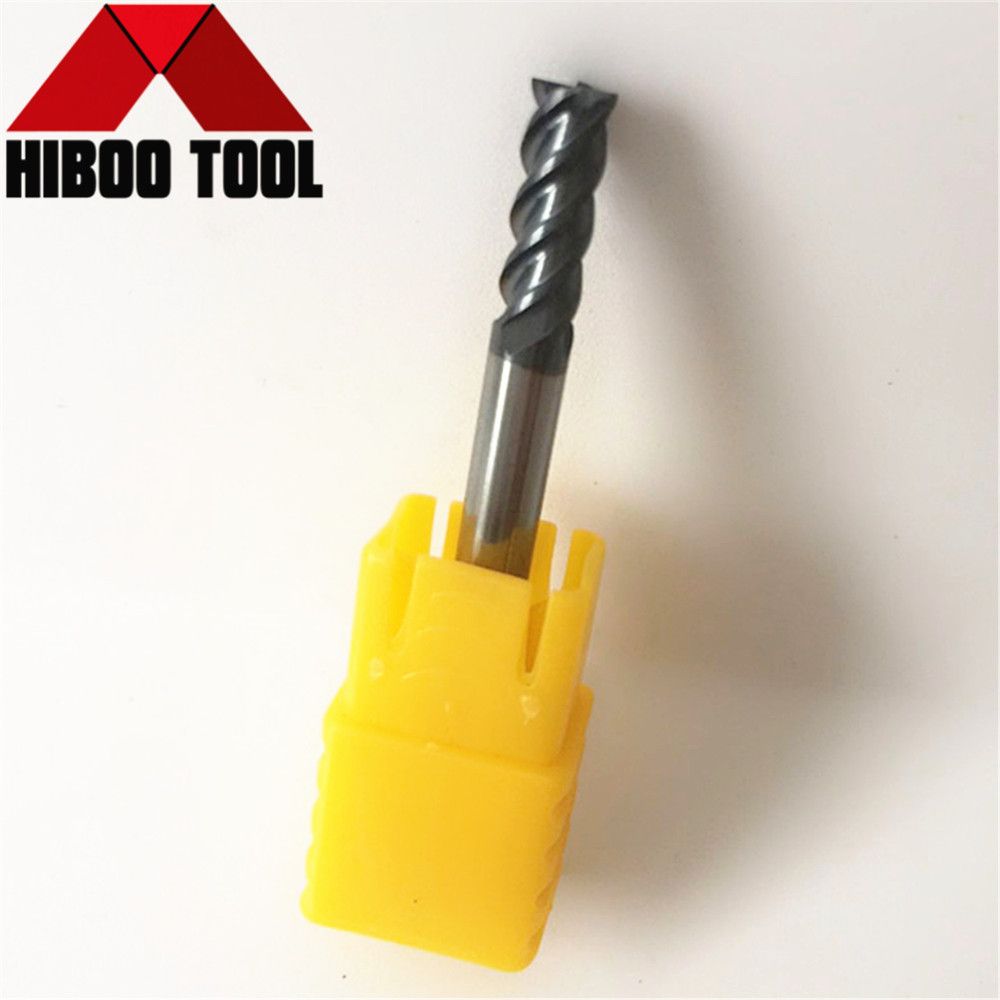

Super Quality Carbide Square Cutting Tools with 45 Degree Helix
| Price: |
US $ 2.5-50/Piece |
| Trade Terms: |
FOB,CIF,DDP |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Solid carbide 45 degree end milling cutter1. Super-Fine Micro grain carbide rod:
WC=90%, Co=10%, TRS>3800N/mm2; Hardness>91.8HRA, Grain size: 0.5um; High qulaity of wearability and impact| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 | Sandvik H10F |
Grain Size:0.7um
Co:10 %
Flexural strength:3320N/mm2 | Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2 | Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2 | Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2 |
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.
| AlTiN | TiAIN | TiSiN | Nano |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. We accept the specification as your requirement. OEM OR ODM is accept
6. Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy| Order no | flute diameter | length of cutting | shank diameter | A. O. L |
| 1.0x3x4Dx50Lx4F | 1 | 3 | 4 | 50 |
| 1.5x4x4Dx50Lx4F | 1.5 | 4 | 4 | 50 |
| 2.0x6x4Dx50Lx4F | 2 | 6 | 4 | 50 |
| 2.5x8x4Dx50Lx4F | 2.5 | 8 | 4 | 50 |
| 3.0x8x4Dx50Lx4F | 3 | 8 | 4 | 50 |
| 3.5x10x4Dx50Lx4F | 3.5 | 10 | 4 | 50 |
| 4.0x11x4Dx50Lx4F | 4 | 11 | 6 | 50 |
| 4.5x13x6Dx50Lx4F | 4.5 | 13 | 6 | 50 |
| 5.0x13x6Dx50Lx4F | 5 | 13 | 6 | 50 |
| 5.5x13x6Dx50Lx4F | 5.5 | 13 | 6 | 50 |
| 6.0x15x6Dx50Lx4F | 6 | 15 | 6 | 50 |
| 7.0x16x8Dx60Lx4F | 7 | 16 | 8 | 60 |
| 8.0x20x8Dx60Lx4F | 8 | 20 | 8 | 60 |
| 9x20x10Dx75Lx4F | 9 | 20 | 8 | 75 |
| 10x25x10Dx75Lx4F | 10 | 25 | 10 | 75 |
| 11x25x12Dx75Lx4F | 11 | 25 | 12 | 75 |
| 12x30x12Dx75Lx4F | 12 | 30 | 12 | 75 |
| 14x35x14Dx100Lx4F | 14 | 35 | 14 | 100 |
| Prod Model: |
45 degree square end mills |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diamter: |
1-20mm |
| Length: |
50-100mm |
| Helix: |
45 Degree |
| Hardness: |
HRC45 |
| Coating: |
Tialn |
| Samples: |
Avaiable |
| OEM: |
Accept |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
We located In Changzhou City, About 1 Hours from Shanghai, China. We has committed to manufacturing solid carbide end mills, Drills, reamers, Inserts, Both standard and Nonstandard tools, offering high quality cutting tools, competitive price and unequaled customer service.
Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.

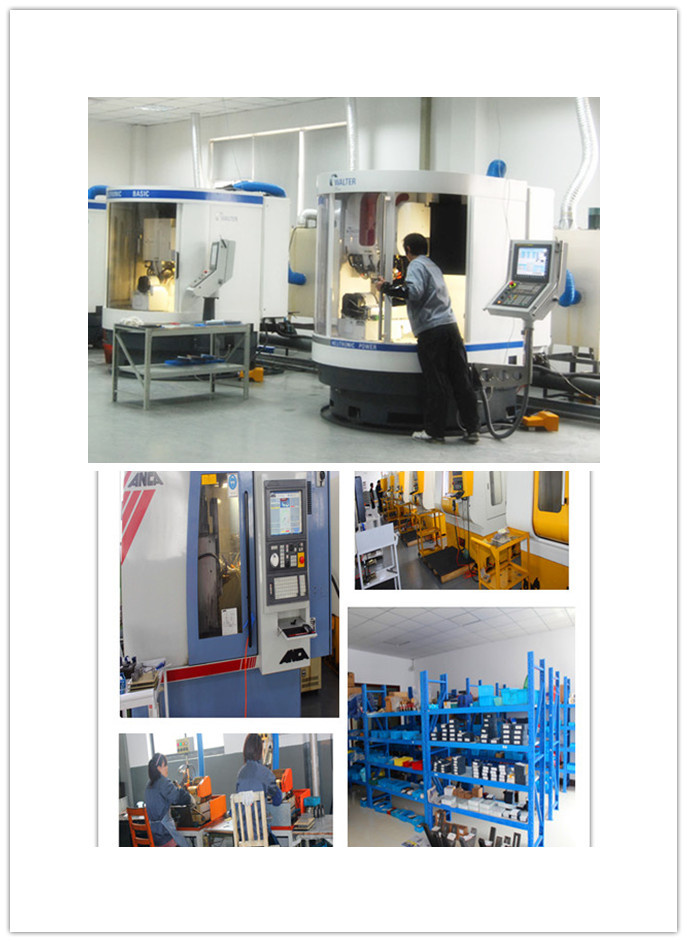

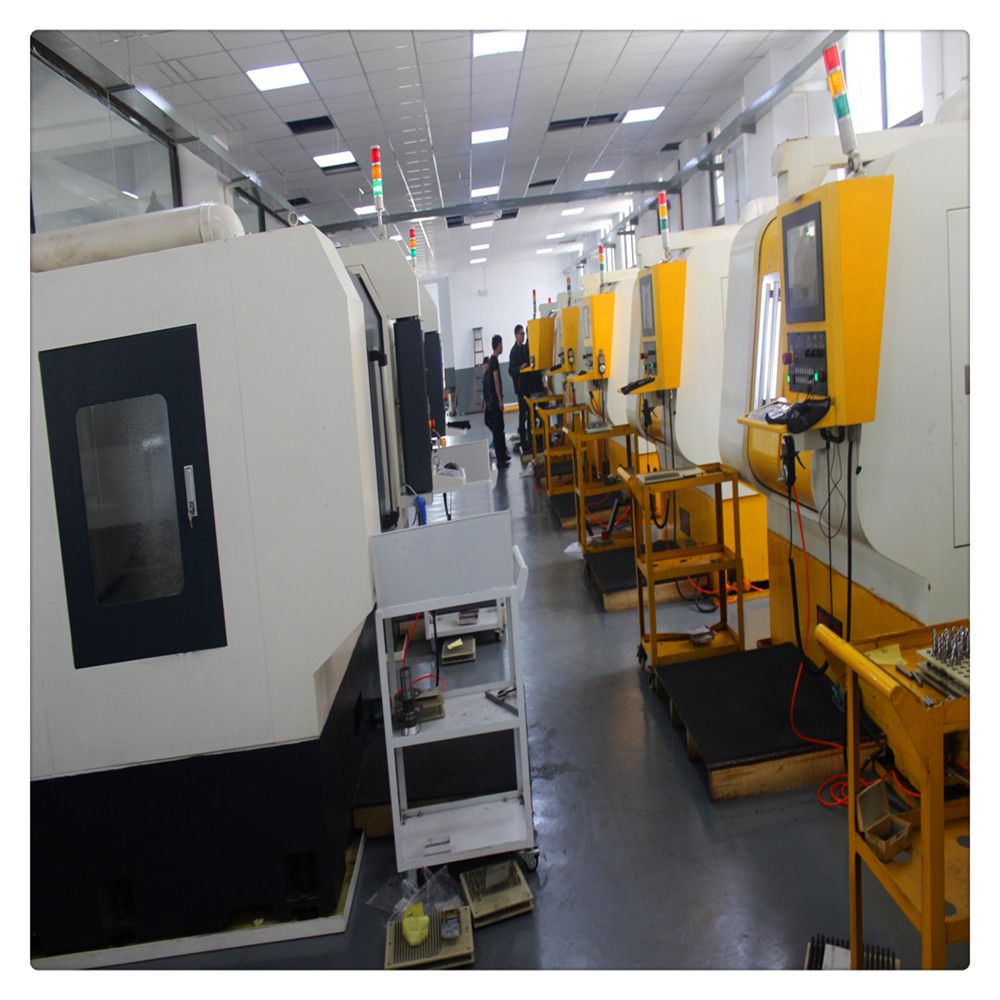

Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.
We earned reputation of good quality, Fast producting, Delivery in time, reliable service. Hiboo will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
