Product Specifications
| Prod Model: |
Leeb430 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Roughness Parameter: |
Ra, Ry, Rq, Rz, Rt, Rsm, RS, RP, RV, R3z, Rsk |
| Cut-off Lengths: |
0.25mm/0.8mm/2.5mm |
| Evaluation Length: |
1.25mm/4mm/5mm |
| Sesor: |
Piezocreystal |
| Power Supply: |
3.7V Lithium-Ion Battery |
| Weight: |
440g |
| Dimensions: |
119*47*65MMS |
Product Description

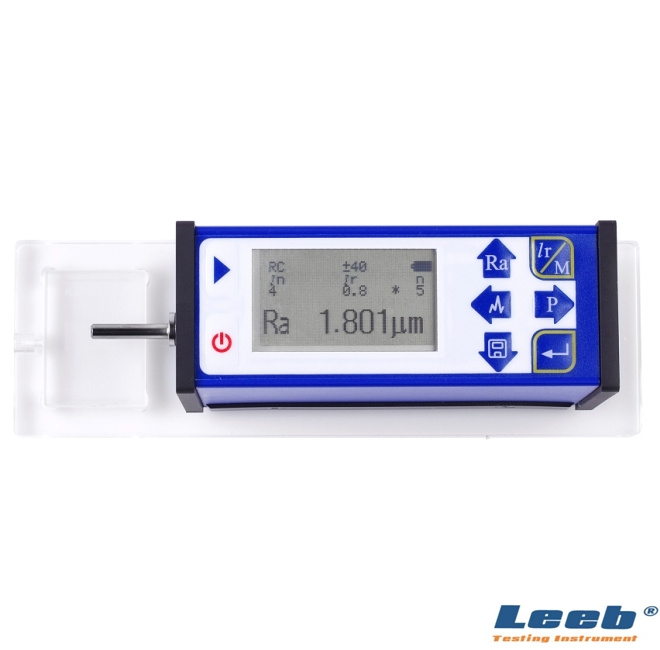

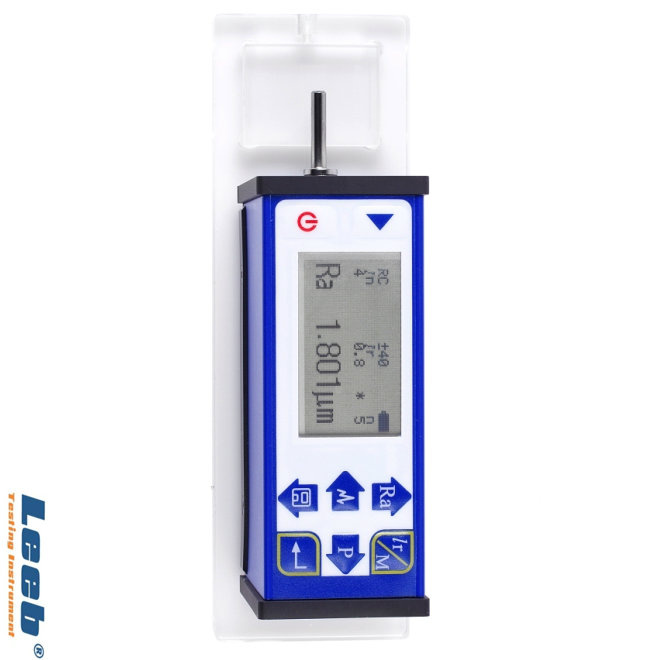

Surface Roughness Tester leeb430
Function & Feature
l High accuracy inductance probe,
l Optional printer, analysis software and measurement platform.
l Design of mechanical and electrical integration is adopted to achieve small bulk, light weight.
l Surface roughness of various machine parts can be measured.
l High precision inductance sensor.
l Can measure 13 parameters.
l 128× 64 DOT matrix LCD displays all parameters and graphs, DSP chip is used to control and process data with high speed and low power consumption.
l Results are displayed digital/graphically on the LCD, and output to the printer.
l Four filtering methods of RC, PC-RC, GAUSS and D-P,
l Compatible with four standards of ISO, DIN, ANSI and JIS,
l English menu operation.
l Background light.
l Built-in lithium ion chargeable battery.
l Continuous working for more than 20 hours.
l USB,can be connected to printer to print all parameters and graphs.
Application Fields
l Mechanical processing manufacturing industry, especially metal processing manufacturing.Non-metallic processing and manufacturing.
l Electricity, communications, electronics industry. Such as switches on the coupling, integrated circuits, semiconductor, etc.
l It can measure kinds of machining surface, including: oil pump nozzle matching surface of cylinder head, crankshaft, camshaft, cylinder, cylinder liner, cylinder, piston hole and surface roughness. At the same time can be applied to the PS version of measurement, online detection for setting and adjustment of the machine tool, tool wear loose or machining process.Technical Specification| | leeb430 |
| Roughness parameter | Ra,Ry,Rq,Rz,Rt,RSm,RS,Rp,Rv,R3z,RSk,Rmax,Rmr |
| Resolution | 0.001μm |
|
| Cut-off lengths | 0.25mm / 0.8mm / 2.5mm |
|
| Evaluation length | 1.25mm / 4mm / 5mm |
|
| Standard | ISO,DIN,ANSI,JIS |
|
| Accuracy | ≤±10% |
|
| Repeatability | <6% |
|

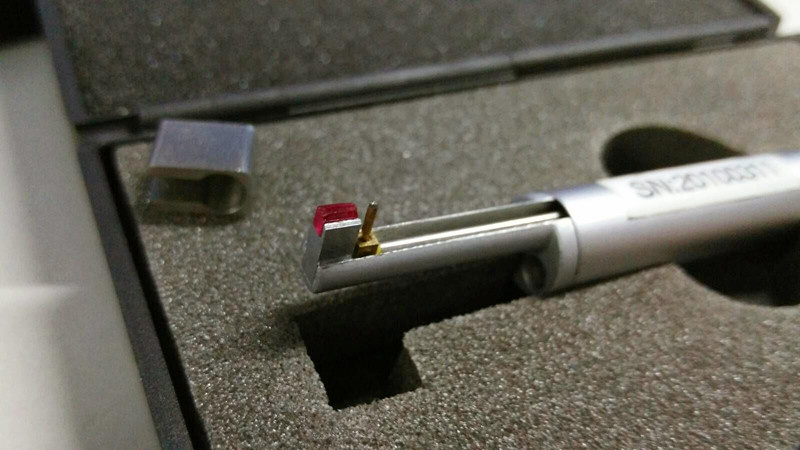

| Sensor | Piezocrystal |
|
| Power supply | 3.7V Lithium-Ion battery |
|
| Operating temperature | 0 ºC -40 ºC |
|
| Weight | 440g |
|
| Dimensions | 119×47×65mm |
|

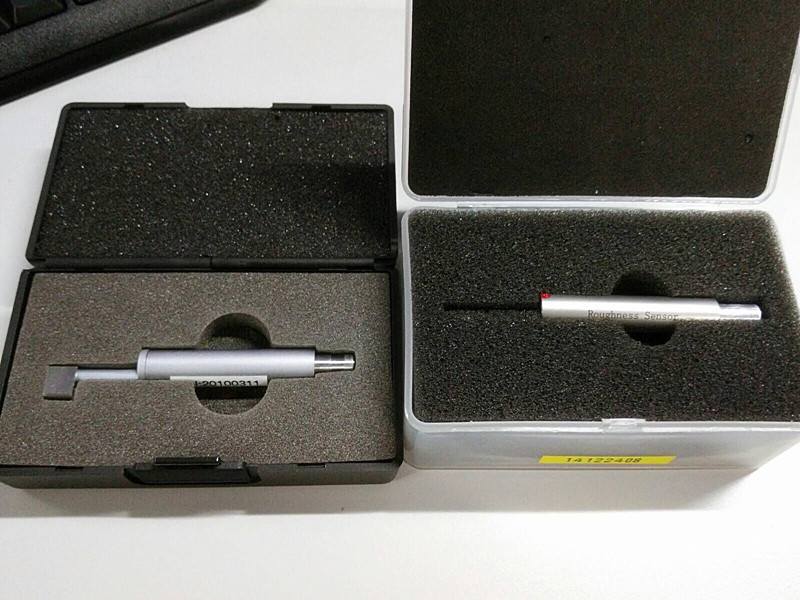

| Standard configuration | Main Unit,Standard sensor,Model for multi-standard groove,Power adapter |
|
| Optional Accessories | Measurement Platform,Sensors,Extension rod,Lateral transfer bar,PC analysis software,Printer |
|
