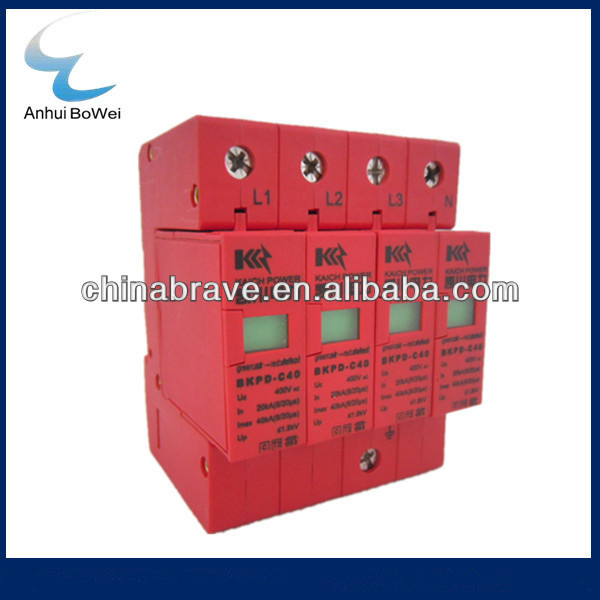

Specifications
SPD Lightning Arrester
1. Uc: 275V, 320V, 385V, 420V, 690V...
2. Discharge Current: 20kA, 40kA, 60kA, 80kA, ...200kA
3. Customized
SPD Lightning Arrester
The applicable range of the Device
1. BKPD-B100/150/200 Protector for 50Hz/60Hz, 380V/420V Power system, That can be used as the low-voltage main distribution cabinet of building, outdoor power distribution control cabinet and lightning (over-voltage) protection. Such as low-voltage main distribution cabinet of various buildings, outdoor power distribution control and lightning high risk of power a level of lightning protection system, maximum discharge 150kA.
2. BKPD-B80 Surge protectors for 50Hz/60Hz, 380V/420V power supply system. That can be used as the low-voltage main distribution cabinet of building, outdoor power distribution control cabinet and lightning (over-voltage) protection. Such as low-voltage main distribution cabinet of various buildings, outdoor power distribution control and lightning high risk of power a level of lightning protection system.
3. BKPD-C60/40 Surge protectors for 50Hz/60Hz, 220V/380V/420V power supply system, that can be used as power distribution lightning protection within buildings. Such as the distribution cabinet of floors of high-rise buildings, civil construction unit distribution cabinet.
4. BKPD-D10/25 Surge protectors for 50Hz/60Hz, 220V/380V power supply system, the end of the electrical equipment by lightning or overvoltage protection. As information networks, smart devices, civil construction...Maximum discharge current of 25KA.
5. BKPD-150V/690V Surge protector is suitable for wind power generation system Lightning over-voltage and Operations over-voltage protection.
(1) LVMDC=Low-voltage Main Distribution Cabinet
(2) MDC= Main Distribution Cabinet
(3) DC= Distribution Cabinet
(4) 3P= Three-Phase, 1P=single-Phase
(5) TDB= Terminal distribution box
Product Description
Lightning protection division
Power system grounding system
Power type
SPD Type
SPD Model
Lightning impulse current
Limp(10/350us)
Nominal discharge current
In(8/20us)
Max
Discharge current
Imax(8/20us)
Power protection level (Up)
Protected Mode
L/N Diam
(Copper Wire)
PE Diam
(Copper Wire)
LZP0-LPZ1
TN-S, TT
3P
I Test
BKPD-A50/4
50kA
--
--
2.0kV
4P
≥ 16mm2
≥ 25mm2
TN-C, TT
3P
I Test
BKPD-A50/3
50kA
--
--
2.0kV
3P
≥ 16mm2
≥ 25mm2
TN-S
3P
II Test
BKPD-B150/4-420
--
60kA
150kA
2.5kV
4P
≥ 16mm2
≥ 25mm2
TT
3P
II Test
BKPD-B150/3+1-420
--
60kA
150kA
2.5kV
3P+N
≥ 16mm2
≥ 25mm2
IT
3P
II Test
BKPD-B150/3-420
--
60kA
150kA
2.5kV
3P
≥ 16mm2
≥ 25mm2
IT
3P
II Test
BWPD-B150/3-690
--
60kA
150kA
2.5kV
3P
≥ 16mm2
≥ 25mm2
LZP1-LPZ2
TN-S
3P
II Test
BWPD-B80/4-400
--
40kA
80kA
2.2kV
4P
≥ 10MM2
≥ 16MM2
TT
3P
II Test
BWPD-B80/3+1-400
--
40kA
80kA
2.2kV
3P+N
≥ 10MM2
≥ 16MM2
IT
3P
II Test
BWPD-B80/3-400
--
40kA
80kA
2.2kV
3P
≥ 10MM2
≥ 16MM2
IT
3P
II Test
BWPD-B80/3-690
--
40kA
80kA
2.2kV
3P
≥ 10MM2
≥ 16MM2
LZP2-LPZ3
TN-S
3P
II Test
BWPD-C40/4-385
--
20kA
40kA
1.6kV
4P
≥ 6MM2
≥ 10MM2
TT
3P
II Test
BWPD-C40/3+1-385
--
20kA
40kA
1.6kV
3P+N
≥ 6MM2
≥ 10MM2
TN-S
1P
II Test
BWPD-C40/2-385
--
20kA
40kA
1.6kV
2P
≥ 6MM2
≥ 10MM2
TT
1P
II Test
BWPD-C40/1+1-385
--
20kA
40kA
1.6kV
1P+N
≥ 6MM2
≥ 10MM2
LZP3-LPZ4
TN-S
3P
II Test
BKPD-D25/4-320
--
10kA
25kA
1.3kV
4P
≥ 6MM2
≥ 10MM2
TT
3P
II Test
BKPD-D25/3+1-320
--
10kA
25kA
1.3kV
3P+N
≥ 6MM2
≥ 10MM2
TN-S
1P
II Test
BKPD-D25/2-320
--
10kA
25kA
1.3kV
2P
≥ 6MM2
≥ 10MM2
TT
1P
II Test
BKPD-D25/1+1-320
--
10kA
25kA
1.3kV
1P+N
≥ 6MM2
≥ 10MM2
