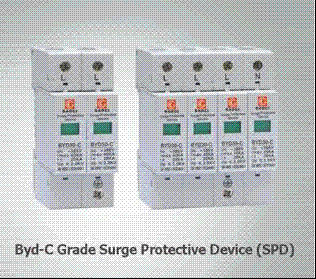

Surge Protective device adopts a splendiferous & non -linear characteristic sensitvity resistance, under normal condition, surge arrester is under skyscraping resisitance condition, without any leaking, assuring power system under normal power supply. When the power system have above over voltage, the surge arrester will conduct within a few minutes limit the value of over voltage under normal and safe range. Meanwhile release the over-voltage, then the arrester will become high-resistance condition quickly, such will not interfere thenormal power supplying of the power system
|
Type |
BYD20-220 BYD20-380/4 |
BYD15-220 BYD15-380/4 |
|
Rated working voltage Un(V~) |
220V |
380V |
380V |
|
Continuous operating voltage Un(V~) |
275 |
320 |
385 |
420 |
440 |
275 |
320 |
385 |
420 |
440 |
|
Protection level Un(V~) |
≤ 1.0 |
≤ 1380 |
≤ 1500 |
≤ 1500 |
≤ 1500 |
≤ 1.0 |
≤ 1350 |
≤ 1400 |
≤ 1400 |
≤ 1400 |
|
Standard discharge current (8/20μ )In(KA) |
20 |
45 |
|
Max current capacity max (8/20μ S )In(KA) |
40 |
30 |
|
Response time(nS) |
25 |
|
Working environment |
-40~+85 |
|
Relative humidity |
95%(25º C) |
|
Connection lead cut-area (mm² ) |
≥ 16~25 |
|
Groud wire cut-area (mm² ) |
≥ 16~25 |
|
Warming wire cut-area (mm² ) |
≥ 1.5 |
Zhejiang People High Voltage Electrical Ceramics Co., Ltd., founded in 1997, is one of the leading manufacturer specializing in High Voltage Electrical Appliances such as Metal Oxide Lightning Arrester, Falling Type Fuses, Disconnector Switch, Insulator and so on. Our products are sold well on our domestic market and broad, and we have been enjoying high reputation for the high quality and excellent after-sale servicen. Meanwhile, Our products are for the main products that are recommended by Our National Economy & Trade Committee and National Electricity Authority to be used in our National Electricity System.
