Product Specifications
| Prod Model: |
TRSS-RJ45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Properties: |
104mm*25mm*25mm |
| Warranty: |
1 Year |
| Response Time: |
<1ns |
| Way To Install: |
Series Connection |
| Type: |
Signal Type Arrester |
| Structure: |
Protective Gap |
| Installation: |
Tandem Arrester |
Product Description
Product Introduction

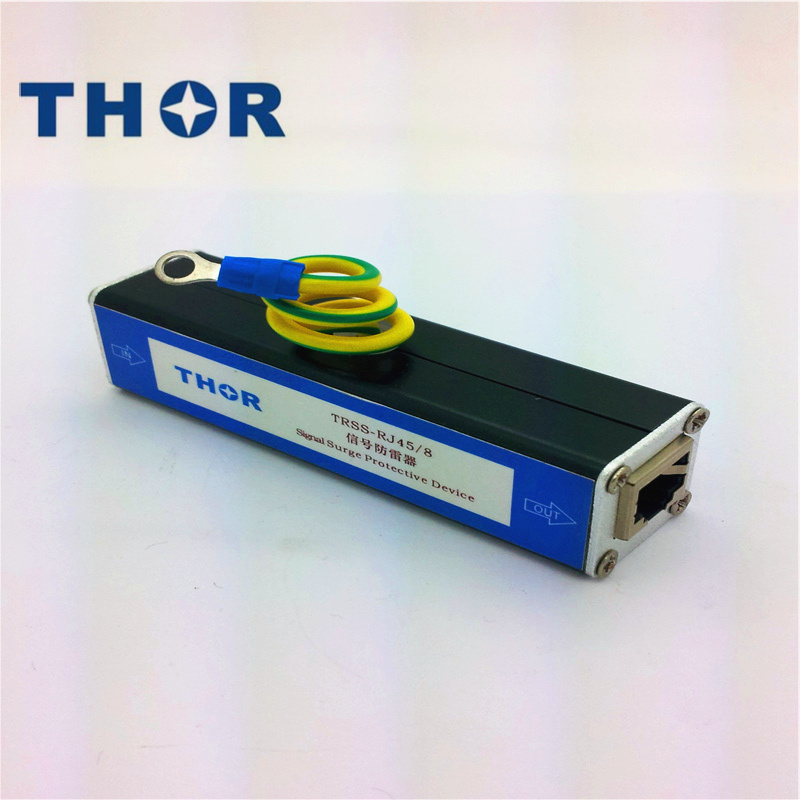

TRSS-RJ45 series signal surge protective device(hereinafter called SPD )is suitable for the circuit of Ethernet,local area network(LAN),Token ring,server,routers,Hub,broad band,the functions of rough protection,precise protection can meet with different requirements for protection zone against surging,to protect RJ45 interface and communication equipment from being damaged due potential rise up or over-voltage result from circuit induction.
Operation Elements
TRSS-RJ45: Input and output by RJ45 male/female connector, easy to be connected and assembled, small cross sectional area low inductive voltage drop, dual protection against over-voltage and overloading, outer shell is made of shielded AL.
Technical Parameter
| Model and specofocation |
| TRSS-RJ45-8 |
| Rated Operating Voltage | Un | 5V/12V |
| Max continuous operating voltage | Uc | 6V/15V |
| Voltage protective level | Up(V) | 40/60 |
| Max discharge current | Imax(8/20μS) | 5kA |
| Nominal discharge current | In(8/20μS) | 3kA |
| Response time | ns | ≤1 |
| Adaptive date transfer rate |
| 1000Mbps |
| Insertion loss |
| ≤0.3dB |
| Configuration dimension |
| 104×25×25 |
| Protective circuit |
| 1.2.3.6 |
| Operating condition |
| Temp:-40ºC~+70ºC |
| RH≤95%(25ºC) |
| Sea level elevation≤3km |
| Remarks |
| Other max continuous operating voltage can be customized |
Installation
To be mounted in the interface between LPZOB to LPZ3.
