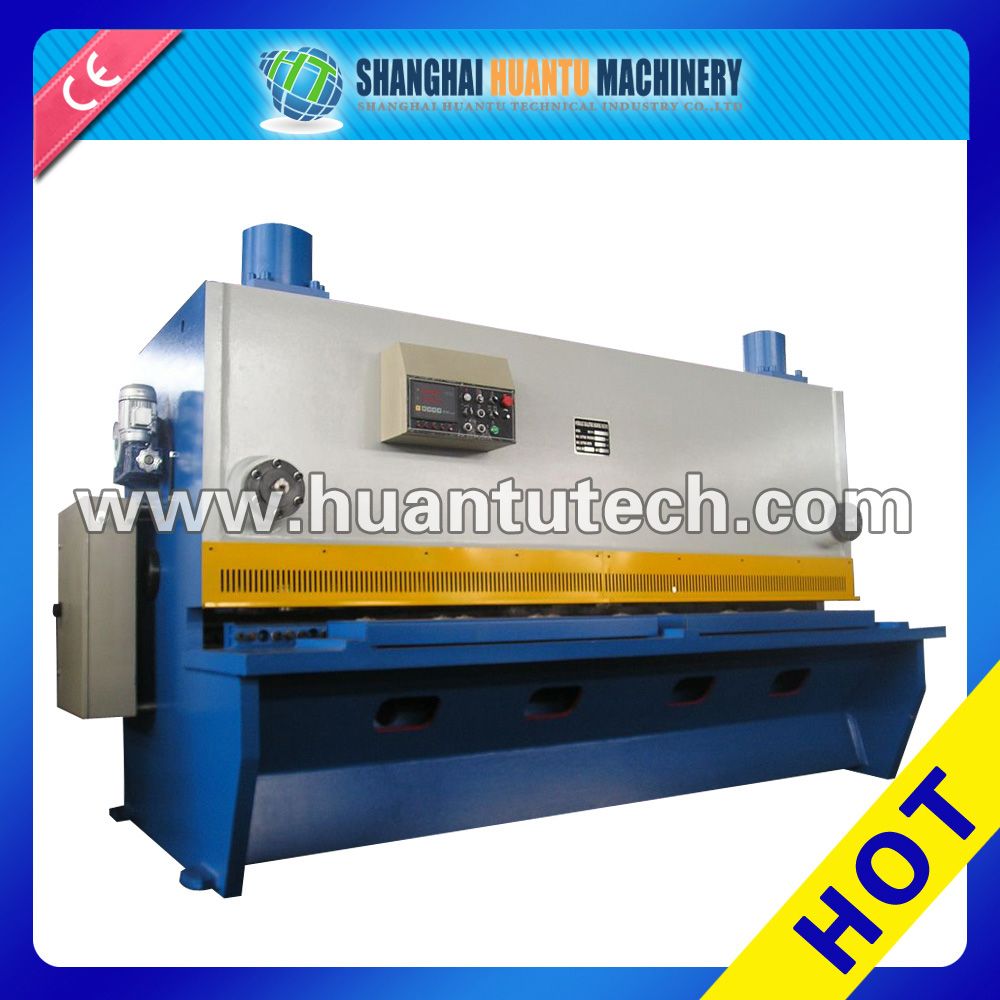

Swing Beam Shearing Machine Cutting Machine QC11Y
Character
1. Guillotine beam design
2. Integration hydraulic system
3. Motorized back gauge with digital show
4. Manually blade clearance adjustment
5. Variable shearing angle to reduce the deformation of the shearing piece
6. Upper knife carrier with inward structure, its facilitate to feed the material
7. Time delay relay controlling stroke, can be sheared in section
8. Counter controlling the number of shearing
9. Standard front extensive arms
10. Four cutting edges blade to prolong working life, 6CrW2Si
11. Foot pedal with emergency stop
12. Steel welded construction, vibration to eliminate inner stress, High in rigidity, so the structure is very sturdy and durable
Major Elements:
1. Hydraulic system: Omega, USA/ Atos, Italy
2. Electro parts: Siemens, Germany/Schneider, France
3. Motors: Siemens, Germany
4. Sealings: Valqua from Japan or DZ from Taiwan.
5. Blades: From Shanghai, 4 sides' blades
6. Standard: CE and ISO certificate
7. Operation system: NC E10 by Estun
8. Option: CNC DELEM DAC310 DAC360
9. Colors: According to your requirements.
Hydraulic Swing beam shearing machine shear cutting machine
MODEL |
4×2500 |
4×3200 |
6×2500 |
6×3200 |
6×4000 |
6×6000 |
8×3200 |
Max.cutting thickness |
4 |
4 |
6 |
6 |
6 |
6 |
8 |
Tensile strength of sheet metal |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
Max cutting length |
2500 |
3200 |
2500 |
3200 |
4000 |
6000 |
3200 |
Shear angle |
1°30 |
1°30 |
1°30 |
1°30 |
1°30 |
1°30 |
1°30 |
Max back gauge device |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
Power of main motor(kw) |
5.5 |
7.5 |
7.5 |
7.5 |
7.5 |
11 |
15 |
Overall dimensions |
L(mm) |
3085 |
3840 |
3130 |
3840 |
4630 |
6400 |
3880 |
W(mm) |
1440 |
1610 |
1530 |
1810 |
2095 |
2750 |
1810 |
H(mm) |
1550 |
1620 |
1600 |
1620 |
1700 |
2200 |
1620 |
Weight of machine(Kg) |
3800 |
6580 |
5000 |
6800 |
9620 |
21000 |
8320 |
MODEL |
12×2500 |
12×3200 |
12×4000 |
16×2500 |
16×3200 |
16×4000 |
20×4000 |
Max.cutting thickness |
12 |
12 |
12 |
16 |
16 |
16 |
20 |
Tensile strength of sheet metal |
450 |
450 |
450 |
450 |
450 |
450 |
450 |
Max cutting length |
2500 |
3200 |
4000 |
2500 |
3200 |
4000 |
4000 |
Shear angle |
1°50 |
1°50 |
1°50 |
2° |
2° |
2° |
2°30 |
Max back gauge device |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
Power of main motor(kw) |
18.5 |
18.5 |
18.5 |
22 |
22 |
22 |
30 |
Overall dimensions |
L(mm) |
3245 |
3950 |
4765 |
3300 |
4050 |
4850 |
4890 |
W(mm) |
2210 |
2270 |
2370 |
2440 |
2440 |
2440 |
3000 |
H(mm) |
2005 |
2005 |
2005 |
2400 |
2050 |
2300 |
2910 |
Weight of machine(Kg) |
9600 |
12000 |
13270 |
11500 |
14000 |
18500 |
26600 |
