Product Specifications
| Prod Model: |
SYF-60 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Moisture Range (%): |
0.01% -100 |
| Determination Of Sample Weight (G): |
0-60 |
| Said The Biggest Weight: |
60 |
| Weighing The Minimum Reading (G): |
0.01 |
| Readability Moisture Content (%): |
0.01 |
| Analysis Method: |
Chemical Analysis |
Product Description

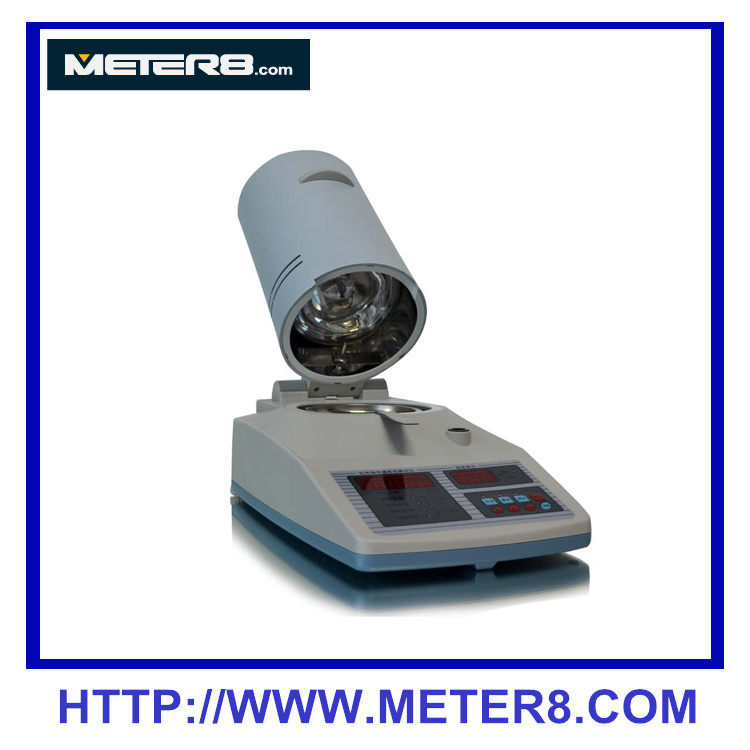

SYF-60 grain moisture meter,laboratory equipment
1.Use features of
SFY-60 rapid halogen moisture meter is a new rapid water testing equipment that can be used to measure the moisture content of any substance, (risk by heating the material except for a chemical reaction) of the pyrolysis apparatus using the principle of the design of the weight, measurement instruments sample weight at the same time, halogen heating elements and the rapid evaporation drying the sample channel.In the drying process, apparatus,continuous measurement and real-time display of sample drying process the moisture content% loss, drying is complete, the final determination of the moisture content of locked display keys can be observed by the value of water, the weight of the initial value, start value, testing time data.
With the traditional method compared to oven heating, halogen heating can be achieved in the shortest time possible maximum heating power quickly at a high temperature sample was dry, greatly speeding up the measurement time.The instrument can be used for all the needs of rapid measurement of moisture in fields such as medicine,food, tobacco, chemicals,tea,food,textile, agriculture, forestry and so on.The instrument of communication with the computer and test the water through the computer data print out the results.Matching can also be used to test the printer directly to print out the results of water data.
2.SFY-60 Main technical indicators
Moisture range (%):0.01% -100
Determination of sample weight (g):0-60
Said the biggest weight:(g):60
Weighing the minimum reading (g):0.01
Readability moisture content (%):0.01
Temperature range (C):-180 at room temperature
Display parameters:Seven kinds of
Communication Interface:Standard RS232 interface
Baud Rate:9600 /S bit
Means of communication:MCS51 series 2 single-chip communication.
Power supply:Voltage 110v +/-10% Frequency 60HZ +/-1HZ
Sample temperature:-40 C -50 C
Working ambient temperature:-5 C -50 C
Relative Humidity:<80% RH
3.Determination of the preparatory work before
1) on the equipment and the level of the fixed table, the bottom of the protection of weighing apparatus parts gong gong wire to wire screw loose head arrived to your desktop,open the heating tube and gently placed on the weighing and the weighing plate bracket and regulating instrument activities after two feet under the floor so that the level of equipment.
2) Inspection intact AC power outlet, remove the power cord to connect power and instrumentation.
3)Open the equipment is located behind the power switch,I heard a buzzer sound after power-on self test apparatus, the data show that the number 5 followed by a window display, "99999-00000" after figures showed "SFY-6".Then displays "0.000",while the temperature display window shows the initial value.
4)Instrument warm-up approach must be preheated before use for 30 minutes, less if the ambient temperature to be warm-up one hour after the pre-determined by the real and effective data.
5) Determination of precision calibration.Instrument factory calibration has been done.But suggested that the initial use of the user equipment,or suspected case of errors and results of new species and determination of the object, the oven method shall be calibrated instruments.See Chapter IV.
