Price: | US $ 93/Piece |
---|---|
Trade Terms: | EXW |
Min Order: | 1/Piece |
Pay Type: | T/T,Paypal,Money Gram,Western Union |
General Specification | |||||
TX Frequency Range | VHF:136.000MHz - 174.000MHz UHF:400.000MHz - 490.000MHz | ||||
RX Frequency Range | VHF:136.000MHz - 174.000MHz UHF:400.000MHz - 490.000MHz | ||||
Modulation | F3E (FM) | ||||
Antenna Impedance | 50Ω | ||||
Frequency Stability | ±2.5ppm @ -10ºC ~ +60ºC | ||||
Operating Temperature | -20ºC ~ +60ºC (-4°F ~ +140°F) | ||||
Operating Voltage | DC 13.8V (+7% ~ -15%), Remark: Negative Grounded | ||||
Operating Current | RX | 0.3A (In Squelch) | |||
TX | 5A(Max.) | ||||

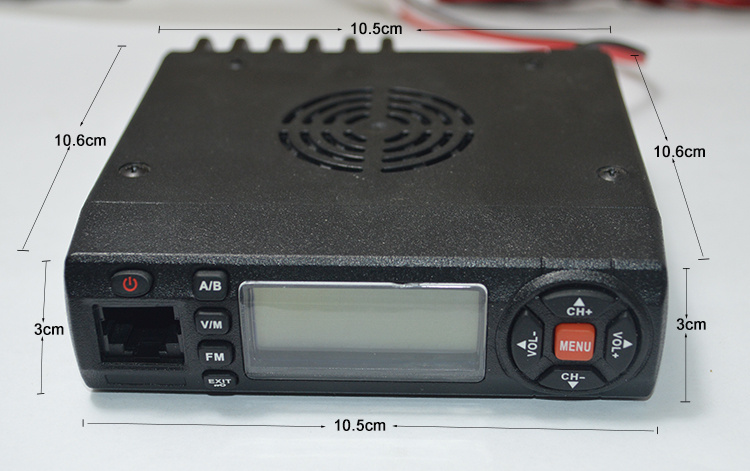

Dimensions(WxHxD) | 105(W) X 30 (H)X 106(D)mm It is not include the projection part | ||||
Net Weight | About 0.5kg | ||||
Transmitter (TX) | Receiver (RX) | ||||
Power Output | VHF 10W (Max. Power) UHF 10W (Max. Power) | Intermediate Frequency | 38.55MHz/450KHz(Main Band) 49.95MHz/450KHz(Secondary Band) | ||
Low Power:About 5W | Circuit Type | Dual Regenerative Super-heterodyne | |||
Modulation Type | Variable Inductance | Sensitivity | ≤0.2uV (12dB SINAD) | ||
Max. Offset | ±5KHz | Squelch Sensitivity | ≤0.16uV | ||
Clutter Radiation | ≤-60dB | Selectivity | 12kHz/30kHz(-6dB/-60dB) | ||
MIC Impedance | 2KΩ | Audio Power Output | 2W @ 8Ω 5% Distortion |
Prod Model: | TC-M10W |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

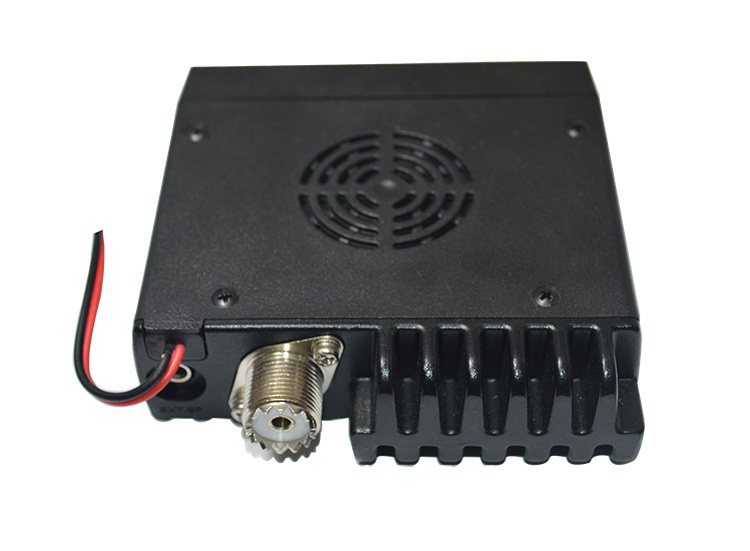

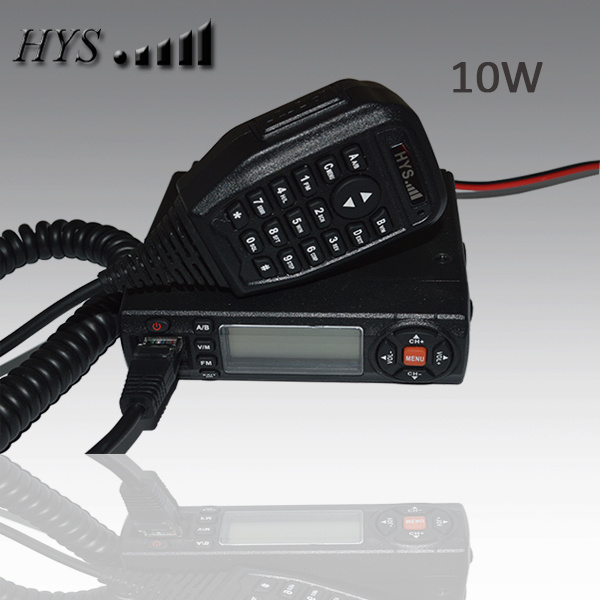

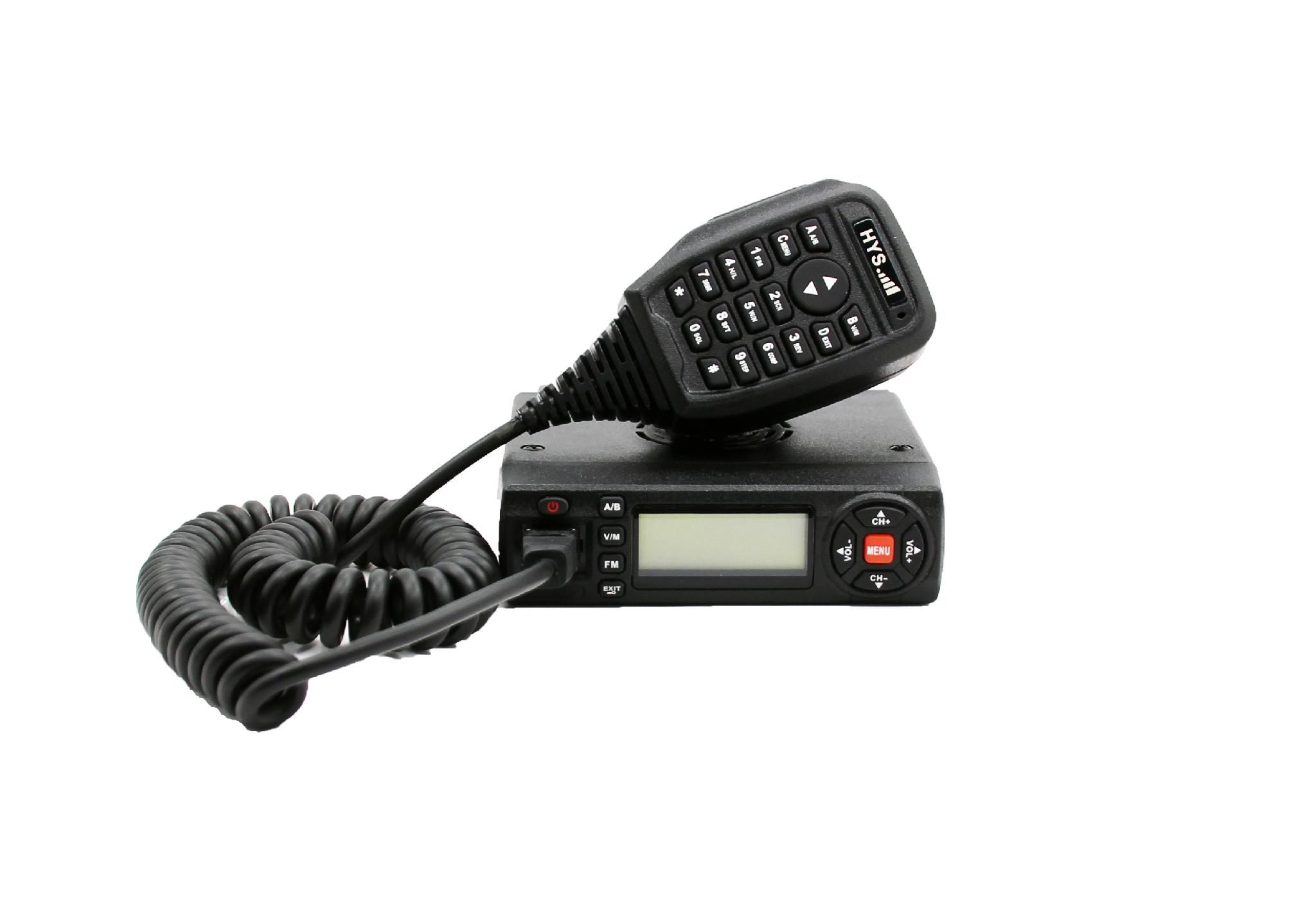

Name: | 10W Mini Dual Band Mobile Radio |
Brand Name: | Hys |
Model: | Tc-M10W |
Color: | Black |
Type: | Vehicle Mounted |
Tx Frequency Range: | VHF:136.000-174.000MHz UHF:400.000-490.000MHz |
Rx Frequency Range: | VHF:136.000-174.000MHz UHF:400.000-490.000MHz |
Modulation: | F3e (FM) |
Antenna Impedance: | 50ohm |
Frequency Stability: | ±2.5ppm |
Wavelength And Frequency: | Long-wave |
Application: | Industrial |
Certification: | CE |
Condition: | New |
Standard: | Standard |
Screen: | With Screen |
Style: | . |
