Product Description
Specifications:

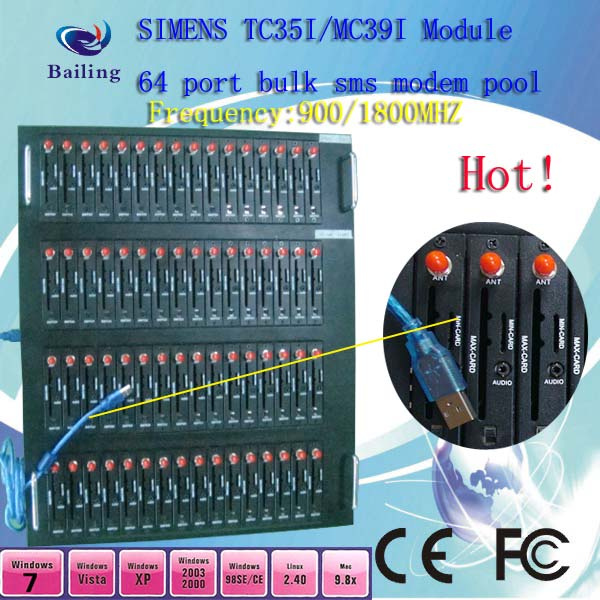

Tc35I 64 Port Modem Pool Support Stk for Mobile Recharge
1. USB Interface
2. Based on TC35I Module
3. High quality low price factory produce
4. Wireless to the internet
5. Always online
6. Maximum transmitting speed115.2kbps
7. Industrial design, to ensure stable operation
8.3V SIM card slots
9. SIM application toolkit
10. Double tone multi-frequency function(DTMF)
11. Comply with ETSI GSM phase2/2+ standard
12. Send and receive bulk SMS&MMS, Voice call
13. Support TCP/IP&OPen AT Command
14. GSM/GPRS class10
15. Electric interface: ETSI standard
16. Eledtric power source: 100/250VAC
17. A separete module can be demolished
18. Switch independence, support for the size of SIM cards(big/small)
19. Support STK for Mobile Recharge System
20. Support 64 SIM Cards
21. GSM/900/1800MHz
Wireless Modem Poll is an integrated. Multiple modem density in one single-box. Destined for many users for SMS or other applications.
Physically in slim-size, inside power supply module, space saving, stable & reliable systems in 8/16/32/64 ports density.
Features
1. Multiple Send/Receive messages at the same time
2. Broad Coverage Area
3. Wide Broadcasting in speedy time
4. Portable device
5. Convenience
6. Accurate
7. Economic, nothing messages left, avoid human error
8. Efficient & Effective
9. Multi-terminal
Application
1. Hypermarket / Shopping Centre
2. Distribution companies
3. Hotel
4. Tour / Travel
5. Transportation Agent
6. Enterprise companies
7. Hospitals
8. TV Stations / Media
9. Oil Companies
Description
1. ETSI GSM Phase2+ Standard compliance
2. Power Supply: 5-24VDC (can use battery)
3. Operating Temperature: -20C ~ +55C
4. Storage Temperature: -25C ~ +70C
5. Data Circuit asynchronous transparent and non transparent up to 14, 400 bits/s
6. Baud Rate: 300 ~ 115200 bits/s
7. Baud Rate Auto: 2, 400 ~ 19, 200 bits/s
8. Sending and receving SMS&MMS, Voice call
9. V. 42, V42bis
10. GPRS
11. WAP
Preparation (Before Operating)
1. SMS applications, need to apply to the local cellular service provider
2. Data Transmit, need to apply to the local cellular service provider, max speed 9.6kbits/s. Attention: Number of voice cellular can be called differently from number of data cellular. To obtain the feature, has to call and ask to the local cellular service provider
3. Hardware needed Connection/SetupUse Software bundled (Chinese language), or using AT Command, or using other HyperTerminal software such PC COM etc.
A. Cables supplied
B. Interface multi-serial card (for model with serial port only), not supplied
C. Antennas
D. Cable Antenna Interface
4. HyperTerminal
5. Please insert the SIM Card
6. Open the power switch, the indication LED is bright.
7. When the indication LED is flash, the into normal work state.
Accessory:
1. Power Cable
2. USB Cable
3. 64PCS SMA antennas
4. 64 Port Modem Pool host one
5. CD Driver
Established in the year of 2006, Shenzhen Bailing Technology Co., Ltd is one of the leading manufacturers dedicated in telecommunication and security industry. We are specialized in manufacturing GSM wireless products like modem, modem pool, alarm system data monitors and long-range supervision systems for families, electric power, mobile base stations, transportation, petrolum finances, civil and police stations etc. What's more, we highly appreciate OEM /ODM business. We have a professional R&D team to help you with your multiple products requirement. Can according to your specific needs to design the best solution project for your market expansion Bailing adheres to the principle of Good quality, best service, customer satisfaction as our persuit.
Bailing's strict QC Management is adopted in every process of production. We gained ISO 9001 and ISO 14001 certificate. Bailing can provide products compliant with RoHS standard
Bailing People are trying best to be known in telecomunication and alarm industry, with worldwide customer's support and most advanced technical team, Bailing is on the move^ welcome to Bailing.
.
