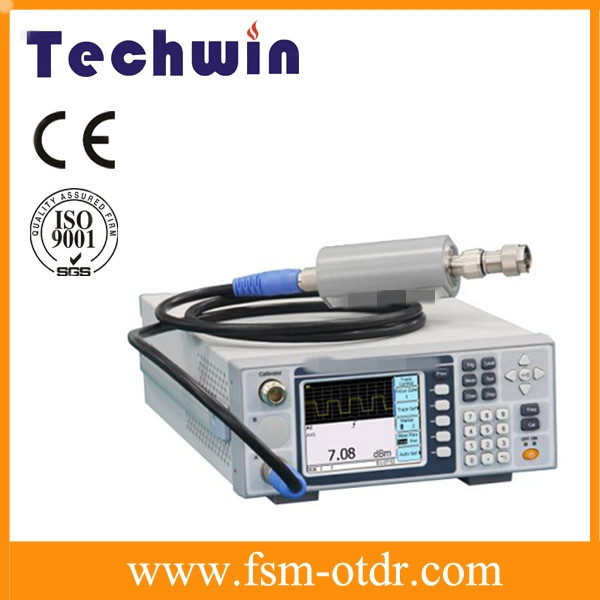

This product is composed of microwave power meter main unit and serial power sensor, adopting embedded computer and embedded operating system integrally with application of microwave diode detection technology, digital signal processing technology and multidimensional compensation technology, which offer the instrument such characteristics as broad frequency band, large dynamic power range, sensor serialization, high precision, quick measurement and analysis and convenient operation. It is mainly used for the measurement and metering of average power, peak power and pulse envelope power of microwave signal, and also can be used for the measurement of high-power pulse modulation signal and narrow pulse modulation signal. It is an important measuring instrument for development, production, acceptance and maintenance in the fields of radar, electronic countermeasure and communication.


Main Features:
ο With accurate power measurement function of continuous wave signal, single sensor in dynamic range of 85 dB;
ο Available in measurement and analysis functions of various envelope parameters of microwave and millimeter wave pulse modulation signal, such as: peak power, pulse power, average power, overshoot, rise time, fall time, top amplitude, bottom amplitude, pulse width, pulse period, duty ratio, closing time and pulse repetition frequency;
ο Offering extended measurement function of high-power pulse if provided with high-power attenuator or high-power directional coupler to offer;
ο Available in automatic offset calibration function;
ο Available in automatic capture measurement function;
ο Available in rise/fall edge trigger and internal/external trigger function;
ο Available in CCDF statistical measurement and analysis function;
ο With color LCD display and Chinese/English graphical operation interface, for user's convenience;
ο Available in storage/recall function;
ο With GPIB and LAN program control function to meet modern communication needs.

ο Multiple measurement modes to meet different user's measurement requirements
Available in continuous wave measurement, peak value measurement and CCDF statistical measurement, three measurement modes.
This instrument becomes a traditional continuous wave power meter if provide with continuous wave power sensor, which can measure the power of microwave and millimeter wave and continuous wave signals accurately, with single sensor in dynamic power measurement range up to 85dBm (-65dBm+20dBm).

This instrument becomes a high-performance peak power meter if provided with peak power sensor, which can measure and analyze the amplitude and time domain parameters of pulse modulation signal.

In statistical measurement mode, the instrument performs continuous sampling measurement on signal rather than trigger event. CCDF refers to the percentage of sampling point, the power level of which is above or equivalent to certain value, among whole samples, it can also be represented as 1-CDF (1 minus CDF).

ο Narrow pulse testing
Techwin  is capable of measuring and analyzing microwave and millimeter wave pulse modulation signal with pulse width of ≤50ns, and measuring and analyzing pulse modulation signal with duty ratio of less than one ten-thousandth.

ο Set frequency response offset
Frequency response offset which varies with frequency provides a quick and effective compensation method for relevant frequency changes in testing system response, acting on the power sensor. Power meter can store 10 frequency response offset tables, with maximum 80 frequency points each, which is very helpful for storing frequency response offset when measuring high-power signal of high-power directional coupler or high-power attenuator.
After starting frequency response offset functioning, in the process of automatic calibration and power measurement, the power meter automatically sets calibration factor according to sensor calibration table and frequency response offset table, to correct the measurement results and ensure measurement accuracy.

ο Storage and recall of configuration data
In order to reduce repeated setting, user can store configuration data up to 10 types of power meter main unit. Those configuration parameters are saved in system for convenient recall by user during similar measurement.

ο Network program control
In addition to traditional GPIB program control function, Techwin also has the function of network program control to meet the modern instrument testing requirements.
Typical Applications:

Techwin microwave power meter is a universal high-performance measurement instrument for peak microwave power, mainly used for measuring and metering average power, peak power and pulse envelope power of microwave signal, and also can be used for the measurement of high-power pulse modulation signal and narrow pulse modulation signal.

In continuous wave mode, it is a universal traditional microwave power meter;
In peak value measurement mode, through different timebase settings, the instrument can automatically measure and analyze the peak value power, pulse power, average power, overshoot, rise time, fall time, top amplitude, bottom amplitude, pulse width, pulse period, duty ratio, closing time and pulse repetition frequency, etc. multiple envelope parameters of microwave and millimeter wave pulse modulation signal.




General Technical Specifications:
Main technical specifications of main unit

Frequency range		10MHz40GHz (depends on power sensor )
Power range		-65dBm+20dBm (depends on power sensor )
Maximum display resolution		Logarithmic mode: 0.001dB Linear mode: bit 4
Offset range		±100.00dB
Rise time		≤13ns
Timebase range		10ns/Div1h/Div
Minimum detectable pulse width		50ns
Pulse width accuracy		50ns500ns: ≤13ns 501ns1s: ≤2%
Maximum detectable pulse repetition frequency		20MHz
Pulse repetition frequency accuracy		1Hz20MHz: ≤2%
Internal trigger level range		-20dBm+20dBm
Calibration source	Frequency	1GHz±10MHz
	0dBm Power accuracy	±1.5% (25ºC )
	Output power range	-40dBm+20dBm
	Output connect	N type
Measure uncertainty of main unit		±0.17dB
Display		3.8' color TFT-LCD
External interface		USB, LAN, GPIB
Power supply		220V (±10% ), 50Hz (±5% )
Interface language		Chinese/English
Environment adaptability		Operating temperature: 0ºC40ºC Storage temperature: -40ºC70ºC
Dimensions		272×97×353 (mm)
Max. weight		5kg


Main technical specifications of optional sensor

Peak power sensor	Techwin	Frequency range	500MHz40GHz
		Pulse power range	-24dBm+20dBm
		Continuous wave power range	-34dBm+20dBm
		Rise time	≤13ns
		Standing wave ratio	0.5GHz10GHz	1.20: 1
			10GHz18GHz	1.25: 1
			18GHz26.5GHz	1.35: 1
			26.5GHz40GHz	1.60: 1
		Correction factor value uncertainty (0dBm)	±0.35dB
		Maximum input power	+23dBm
	Compatible peak power sensor		See the " Broadband Peak Microwave Power Analyzer Product Sample" for detailed indexes



Continuous power sensor

Compatible

Power range: -65dBm+20dBm See Microwave Power Mete Product Sample" for other detailed indexes
